Description

Price

1

BOLT(10)

7512031

$2.23

2

SPACER,REGULATOR

5211573

Unavailable

3

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

4

NUT(10)

7541925

$1.49

5

HOUSING

4020063

$3.19

6

Terminal, Ring

4020092

Unavailable

7

Housing w/Receptacle

4020057

$3.51

8

HARNESS-MAIN,GEN 2 COMMON

2460733

$206.39

9

DECAL,CONSOLE,IGNITION

7077367

Unavailable

10

SCREW(10)

7515199

$1.49

10

SCREW(10)

7515199

$1.49

11

KIT,IGN.SWITCH

2200358

$76.89

12

Cable, Choke Control (Incl. 13,19)

7080290

$105.22

13

LEVER,CHOKE Substituted by 2201439 (Incl. Pin)

5432943

Unavailable

14

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

15

WASHER,NYLON

7555932

$2.39

16

RIVET, POP(50)

7621330

$1.49

17

GUIDE-RECOIL

5243049

$9.70

18

WASHER-LOCK(10)

7571610

$3.99

19

NUT,CHOKE

5432944

$8.79

20

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

5410611

Unavailable

21

NUT,IGNITION

7547035

$8.79

22

CONSOLE,HYBRID,BLK

5432906

Unavailable

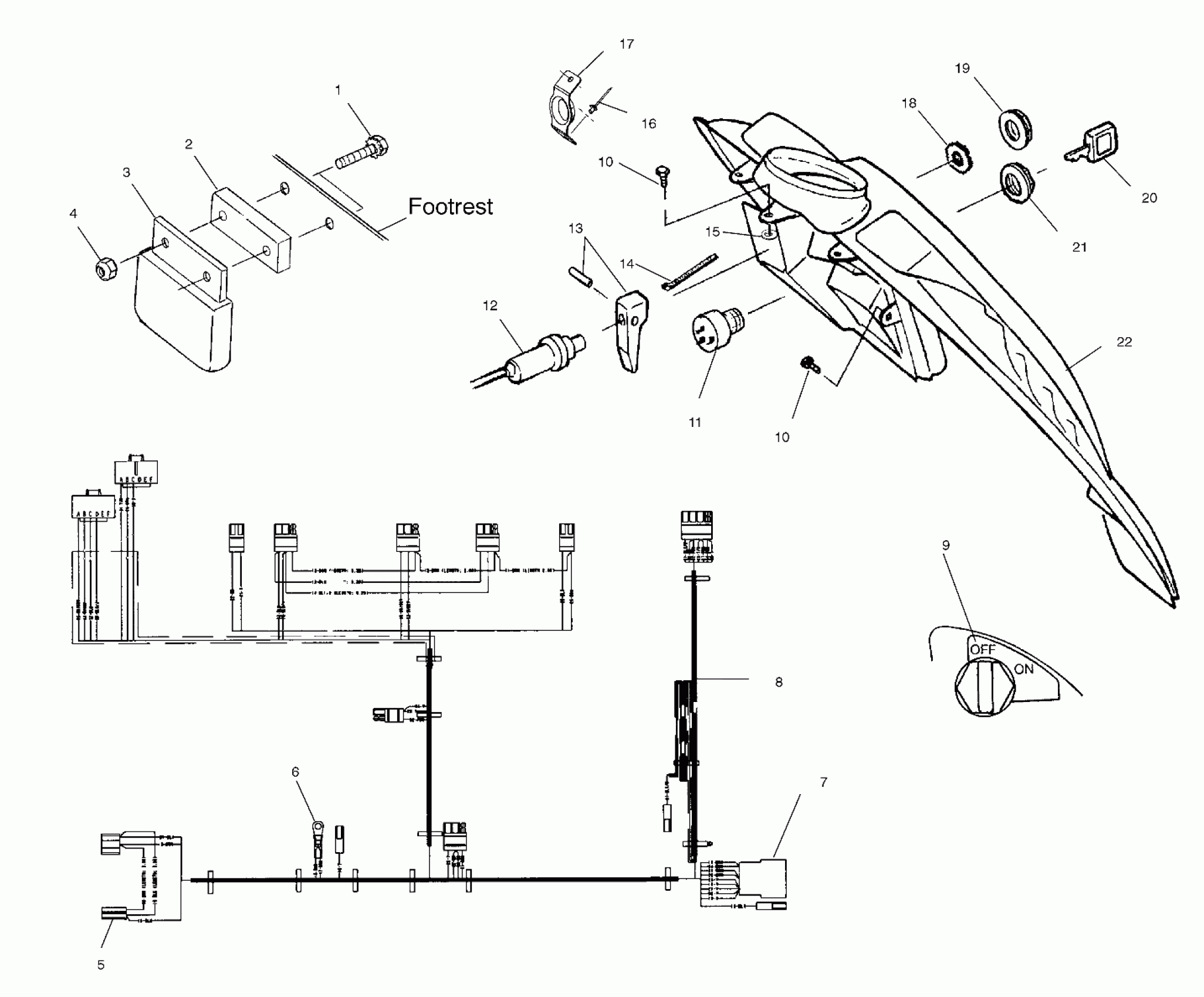

Polaris SUPERSPORT - S00SB5BSA CONSOLE - S00SB5BSA (4953975397a013) Diagram

BOLT(10)

SPACER,REGULATOR

REGULATOR,(14.3VAC),LR-7

NUT(10)

HOUSING

Terminal, Ring

Housing w/Receptacle

HARNESS-MAIN,GEN 2 COMMON

DECAL,CONSOLE,IGNITION

SCREW(10)

SCREW(10)

KIT,IGN.SWITCH

Cable, Choke Control (Incl. 13,19)

LEVER,CHOKE Substituted by 2201439 (Incl. Pin)

CABLE TIE-RELEASABLE,5 1/2"(10)

WASHER,NYLON

RIVET, POP(50)

GUIDE-RECOIL

WASHER-LOCK(10)

NUT,CHOKE

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

NUT,IGNITION

CONSOLE,HYBRID,BLK
