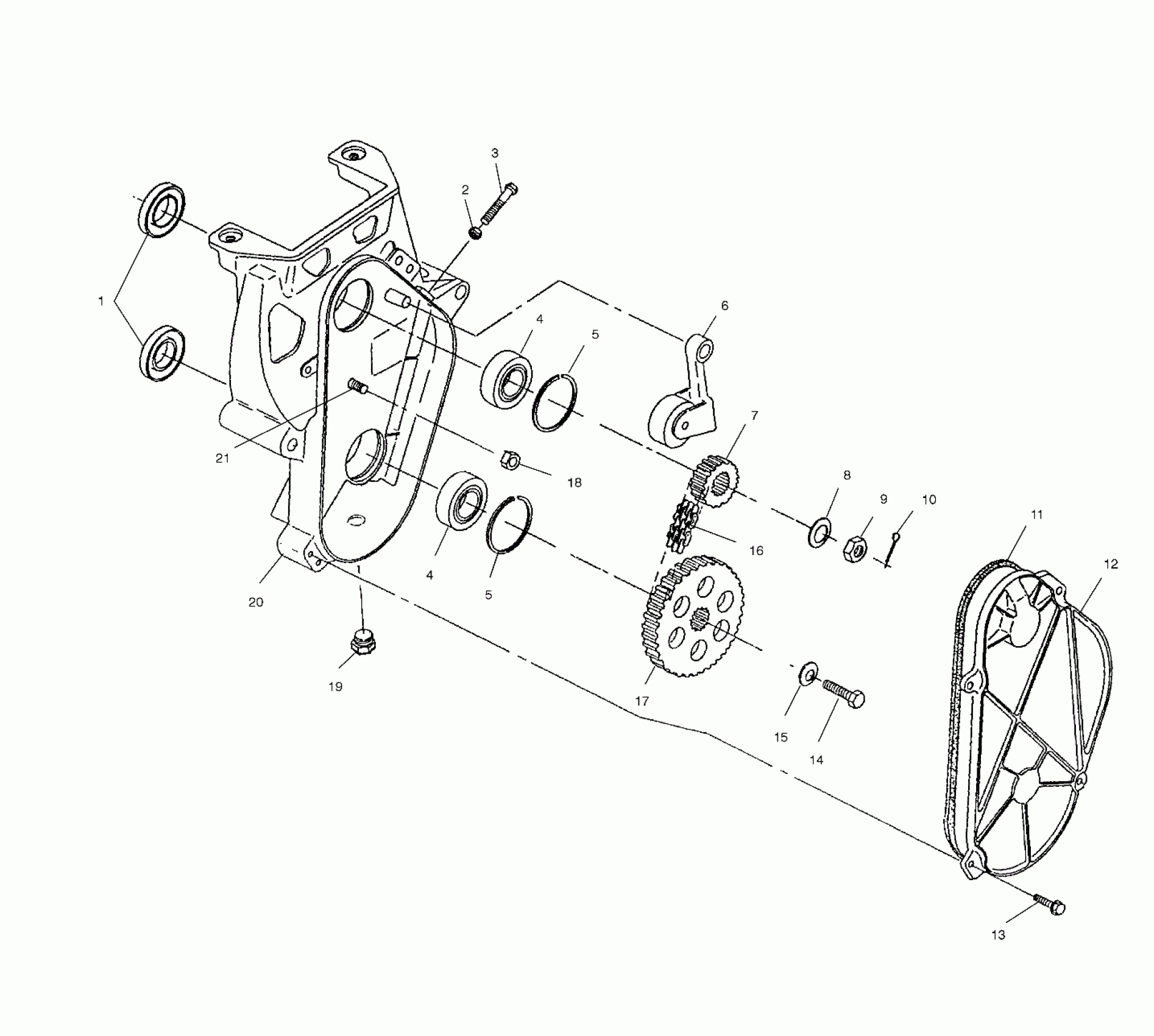

Polaris SUPERSPORT - S00SB5BSA CHAINCASE - S00SB5BSA (4953975397b005) Diagram

#

Description
Price

1

SEAL-OIL

3610030

$20.22

2

NUT(10)

7542404

$1.59

3

SCREW(10)

7515551

$6.39

4

BEARING,BALL

3514309

$15.87

4

BEARING,BALL

3514309

$15.87

5

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

5

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

PIN,CHAIN TIGHTENER

7662210

Unavailable

6

BEARING

3553002

$11.99

6

WHEEL,C/C IDLER

5630123

Unavailable

6

WASHER THRUST(10)

7558702

$1.59

6

TIGHTENER,CHAINCASE

1332213

$159.99

7

SPKT,19T,3/4W,15 SPL,HV,PM

3221095

$44.99

8

WASHER, SLOTTED(10)

7571620

$7.19

9

NUT

7542811

Unavailable

10

COTTER PIN(10)

7661401

$1.49

11

GASKET-CHAINCASE

5410277

$24.99

12

COVER-CHAINCASE,CAST,6.625

5630968

Unavailable

13

SCREW(10)

7512242

$2.39

14

SCREW(10)

7515350

$3.97

15

WASHER(10)

7571618

$6.39

16

CHAIN,HYVO 66 P,3/4W

3221113

$124.99

17

SPKT,39T,3/4W,15T,HYVO,PM

3222108

$59.99

18

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

19

PLUG(10) (Incl. O-Ring)

7052115

$5.65

20

CHAINCASE-MACH,6.625 CD

5132158

Unavailable

21

BOLT(10)

7515477

$34.99
