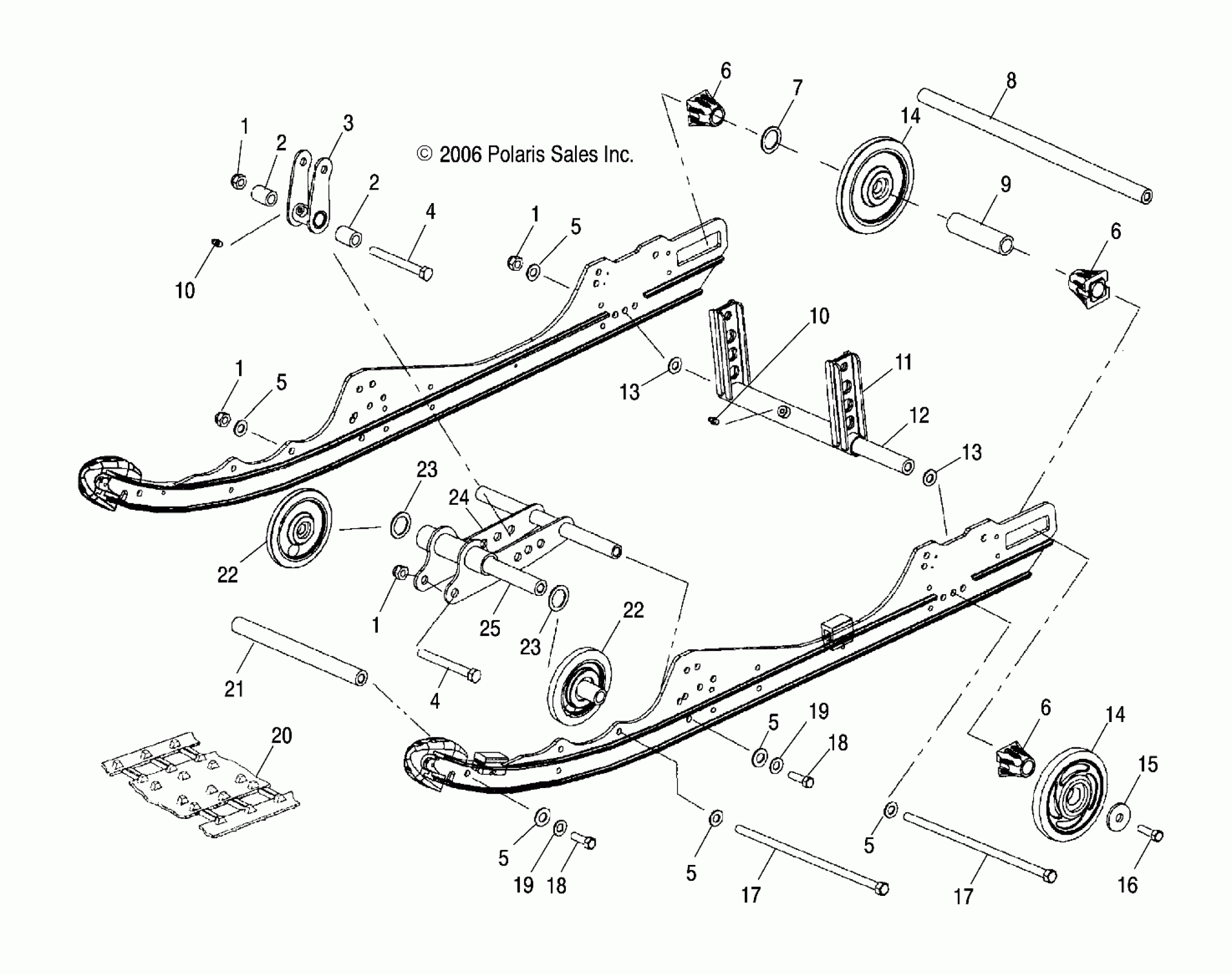

Polaris SUPERSPORT EDGE - S07NP5BS/BE SUSPENSION, REAR - S07NP5BS/BE (49SNOWSUSPRRSUPER) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

2

Bushing

5133233

$11.99

2

Bushing

5133233

$11.99

3

Arm, Pivot, Shock, Black

1541477-067

$56.99

4

SCREW

7515417

$4.79

4

SCREW

7515417

$4.79

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

7

BUSHING

7555918

$1.59

8

SHAFT, IDLER

5020744

$59.99

9

SPACER-IDLER, LONG

5333285

$11.99

10

FITTING-LUBRICATION 1/4-28

7080424

$4.79

10

FITTING-LUBRICATION 1/4-28

7080424

$4.79

11

Arm, Pivot, Rear, Black

1541707-067

$32.95

12

SHAFT

5333404

$24.27

13

Washer, Flat

7555893

$1.49

13

Washer, Flat

7555893

$1.49

14

RING-RETAINING

7710444

$8.79

14

Asm., Idler Wheel

1594087

$72.84

14

Bearing

3514012

Unavailable

14

RING-RETAINING

7710444

$8.79

14

Asm., Idler Wheel

1594087

$72.84

14

Bearing

3514012

Unavailable

15

WASHER, BELLE

7556130

$6.39

16

BOLT

7517731

$1.49

17

SCREW

7517921

$23.99

17

SCREW

7517921

$23.99

18

Screw

7517247

$3.19

18

Screw

7517247

$3.19

19

Washer, Spring Lock

7552603

$1.49

19

Washer, Spring Lock

7552603

$1.49

20

CLIP, GUIDE

5222840

Unavailable

20

Track, .82 Inch

5413108

$699.99

21

Shaft, Pivot Arm

5020723

$29.99

22

Asm., Wheel w/Hole

1541485

$72.84

22

Asm., Wheel w/Hole

1541485

$72.84

23

Bushing

7556301

$3.19

23

Bushing

7556301

$3.19

24

Mount, Shock, Black

1541711-067

$109.99

25

Shaft

5132490

Unavailable
