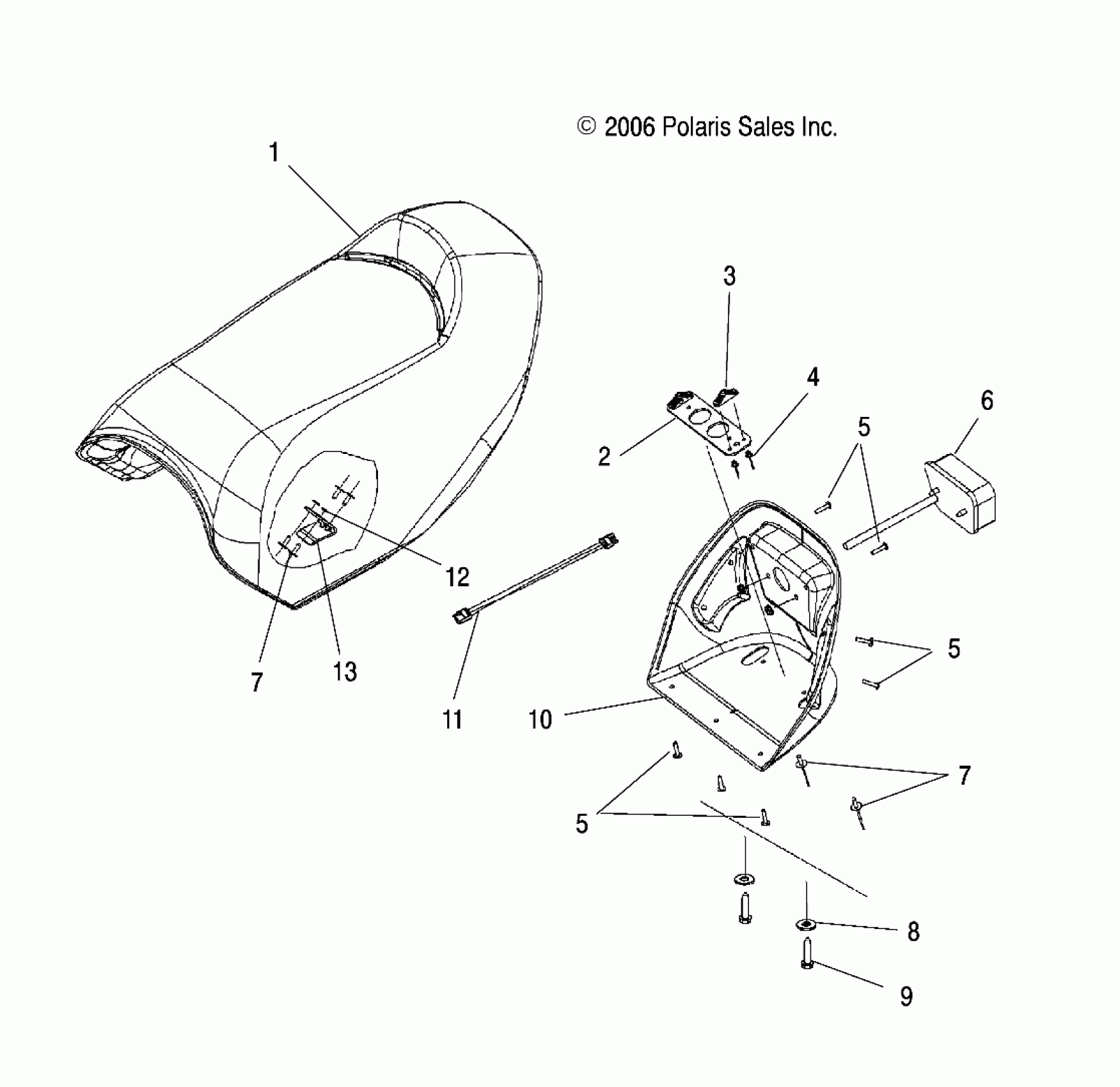

Polaris SUPERSPORT EDGE - S07NP5BS/BE SEAT - S07NP5BS/BE (49SNOWSEATSUPER) Diagram

#

Description
Price

1

Asm., Seat

2683867

Unavailable

1

Asm., Seat Cover

2683868

Unavailable

2

Plate, Seat Pro X

5246847

$41.59

3

NUT, SEAT

5631194

$4.99

4

RIVET

7621319

$1.49

5

RIVET

7621485

$1.49

5

RIVET

7621485

$1.49

5

RIVET

7621485

$1.49

6

Gasket, Taillight

4032045

$4.03

6

Lens, Taillight

4032046

$32.37

6

Screw, Taillight

4032029

$4.79

6

Bulb, Taillight

4030043

$6.46

6

Asm., Taillight w/Brake Light

2432034

$55.99

7

RIVET

7621467

$1.49

7

RIVET

7621467

$1.49

8

WASHER

7558301

$1.49

9

SCREW

7517219

$4.79

10

Cover, Seat Base, Rear

5434876

$267.99

11

Jumper, Taillight, Harness

2461140

$9.11

12

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

13

Bracket, Seat Base Holddown

5246846

Unavailable
