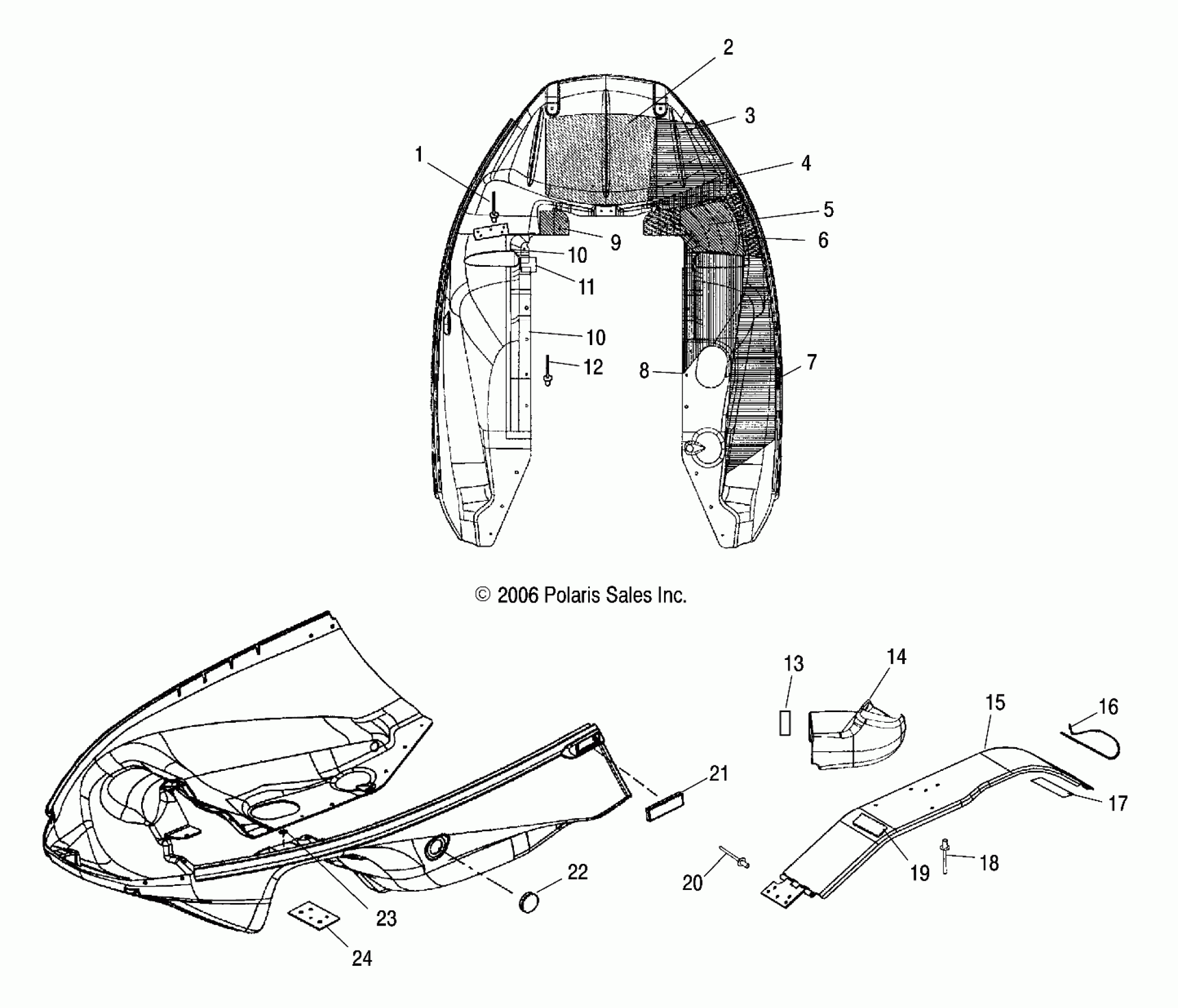

Polaris SUPERSPORT EDGE - S07NP5BS/BE NOSEPAN/FOIL - S07NP5BS/BE (49SNOWNOSEPANFOILSUPER) Diagram

#

Description
Price

1

Rivet

7621462

$1.49

2

Tape, Foil

5811458

$15.99

3

Foil, Front

5812040

Unavailable

4

Tape, Foil

5812067

Unavailable

5

Foil

5812039

Unavailable

6

Foil, Tape

5812068

Unavailable

7

Foil, Tape, Upper, RH

5812018

$20.22

8

Foil, Tape, Lower, RH

5812019

$12.94

9

Foil, Tape

5812020

$3.99

10

J-Clip, Retainer

7080963

$2.39

10

J-Clip, Retainer

7080963

$2.39

11

Foil

5811948

Unavailable

12

RIVET

7621334

$1.49

13

Foam

5812353

$4.15

14

Duct, Engine Air Outlet

5434531

Unavailable

15

Asm., Guard, Clutch

1013069

$102.38

16

Pin, Clutch Guard

7080698

$9.70

17

Pad, Clutch Guard

5812352

Unavailable

18

RIVET

7621485

$1.49

19

DECAL-WARNING,ENGINE & CLUTCH

7079297

Unavailable

20

Rivet

7621402

$1.49

21

ASM., REFLECTOR, AMBER

2670134

$9.70

22

Plug, Oblong

5433926

$4.03

23

Plug, Nylon [Manual Start]

7670131

$4.84

24

Plate, Backer

5211722

$10.51
