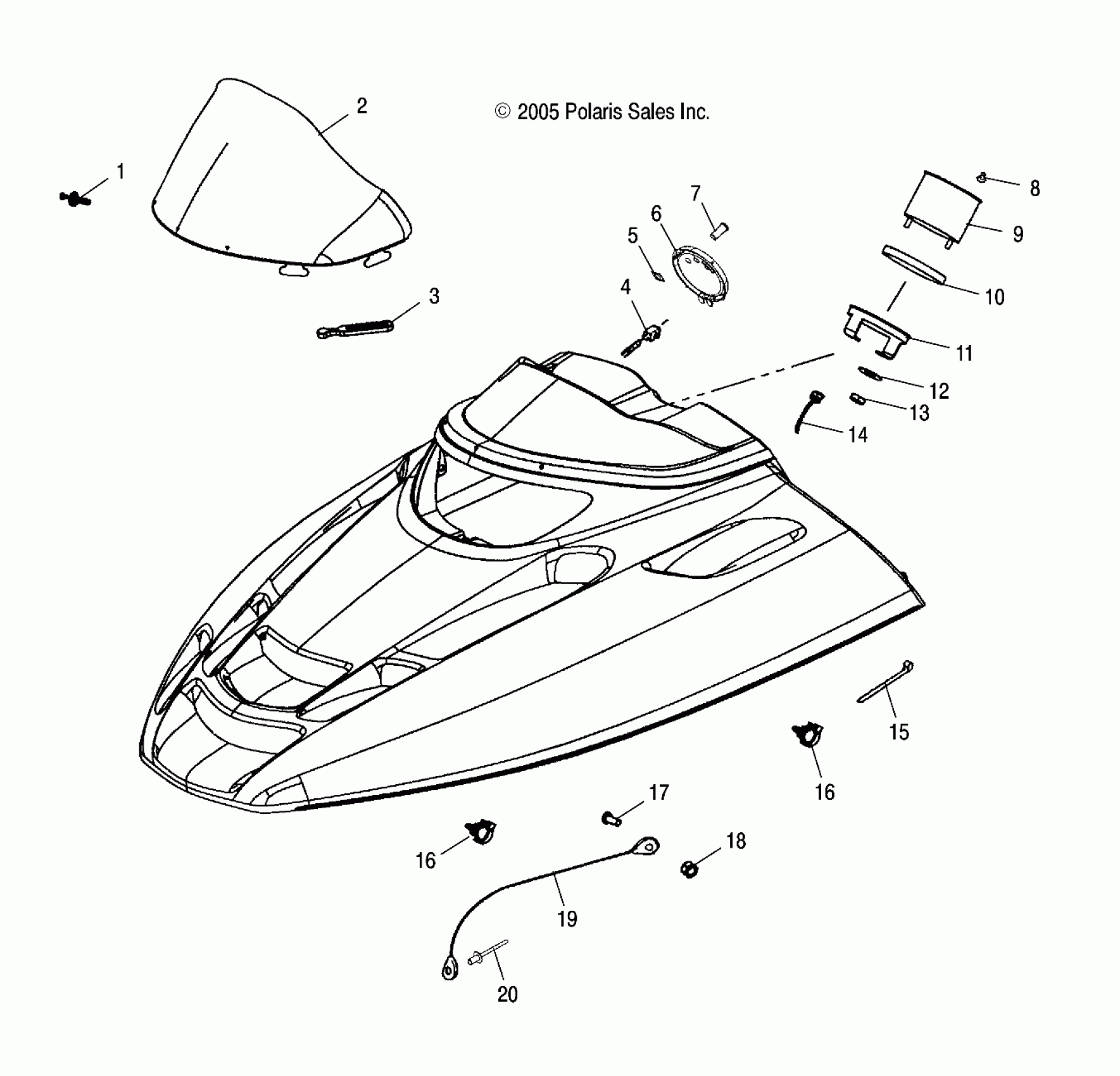

Polaris SUPERSPORT EDGE - S07NP5BS/BE HOOD - S07NP5BS/BE (4997239723A09) Diagram

#

Description
Price

1

RIVET

7621509

$1.49

2

Windshield, 7 Inch, Matte Black

5436558

$124.99

3

RETAINER, WINDSHIELD

5410970

$1.49

4

Harness, Jumper, Reverse Light

2461031

$5.75

5

Retainer, Bolt/Lamp

7670133

Unavailable

6

Plug, Dash

5434081

Unavailable

7

Indicator, Reverse

4010687

Unavailable

8

Knob, Trip Odometer

3280186

$9.70

9

Bulb, Taillight/Tach/Speedo

4030015

$4.03

9

Asm., Speedometer

3280411

$339.98

10

Cushion, Rubber

3280209

$3.99

11

Bracket, Speedometer/Tachometer

3280210

$28.32

12

Washer, Flat

3280157

$2.39

13

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

14

Cable, Speedometer

3280385

$93.08

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

Clip, Plastic, Nylon

4010589

$2.39

16

Clip, Plastic, Nylon

4010589

$2.39

17

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

18

Nut, Nylok

7541925

$1.49

19

Cable, Hood Retainer

7080521

$24.27

20

RIVET-3/16-.090-.290

7661637

$1.49
