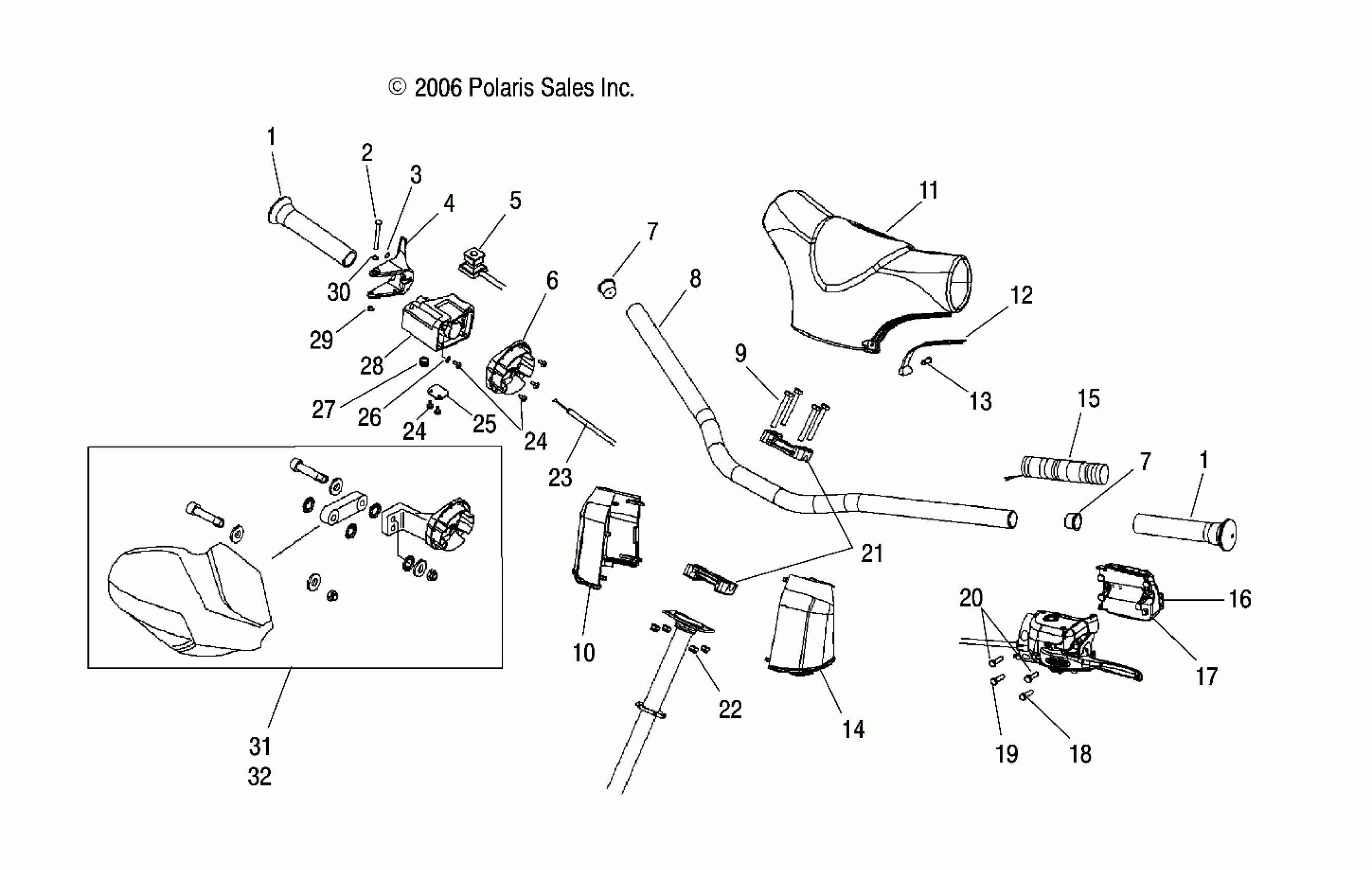

Polaris SUPERSPORT EDGE - S07NP5BS/BE HANDLEBAR - S07NP5BS/BE (49SNOWHANDLEBARSUPER) Diagram

#

Description
Price

1

Grip, Handlebar

5432634

$24.27

1

Grip, Handlebar

5432634

$24.27

2

PIN-RETAINING .186X1.780-AL

7661624

$12.79

3

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

4

LEVER, THROTTLE

5432970

$29.03

4

ASM., LEVER W/HEATER, HI/LO

2010171

$84.98

5

Switch, Auxiliary Shut-Off

4110106

$94.99

6

ADAPTOR, BLOCK, THROTTLE

5433345

$15.99

7

Plug

5431096

$2.02

7

Plug

5431096

$2.02

8

Handlebar, Black

5243355-067

$94.99

9

SCREW

7517238

$4.79

10

Collar, Console, Forward, RH

5434146

Unavailable

11

Cover, Handlebar, CR, Black

5436562-070

$77.99

12

Slide, Handlebar Cover

5433160-070

$28.32

13

Dart, Clip, Nylon

4010287

$3.99

14

Collar, Console, Forward, LH

5434145

Unavailable

15

HEATER, GRIP, LO/MED/HI

2410812

$52.60

16

Button, Switch, Hi/Lo, LH

5433291

Unavailable

17

Asm., Control, LH

2010206

Unavailable

18

SCREW, 1.50

7517566

$3.99

19

SCREW, 1.12

7512078

$1.49

20

SCREW, .75

7517441

$2.39

21

Block, Handlebar, Black

5630187-067

$44.99

22

Nut, Nylok

7542122

$1.49

23

Cable, Throttle

7081173

$109.99

24

Screw

7511848

$3.99

24

Screw

7511848

$3.99

25

HOLDER, WIRE

5432261

$24.27

26

WASHER

7555727

$1.49

27

Screw Set

7512465

$3.99

28

BLOCK, THROTTLE/BRAKE

5431592

$49.99

29

RING-RETAINING EXTERNAL

7710401

$3.99

30

WASHER

7555730

$3.99

31

Kit, Handguard [Incl. 32]

2875536-070

Unavailable

32

Kit, Mounting Bracket, Handguard

2875590

Unavailable
