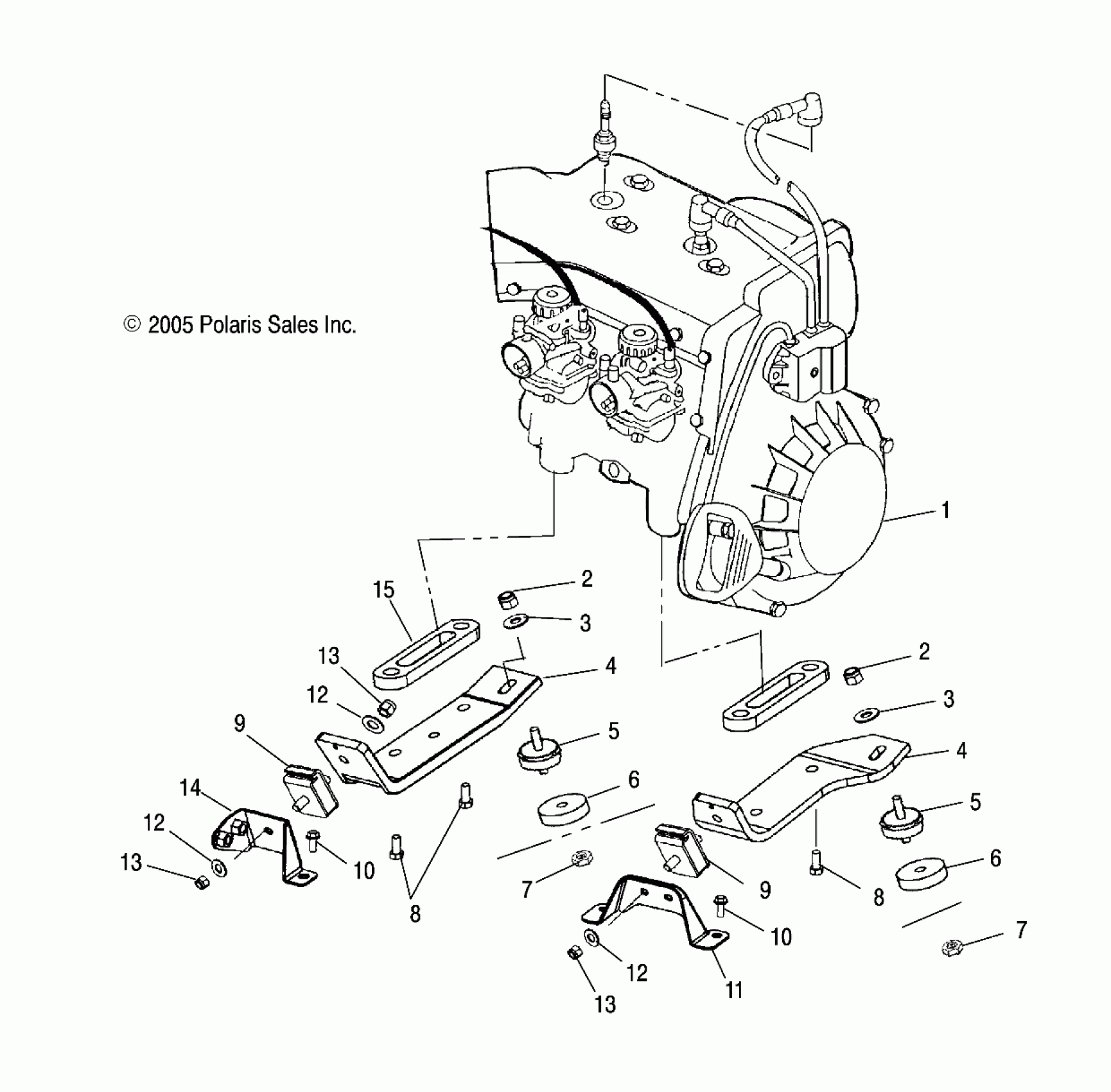

Polaris SUPERSPORT EDGE - S07NP5BS/BE ENGINE, MOUNTING - S07NP5BS/BE (4997239723C09) Diagram

#

Description
Price

1

Engine, Short Block, EC55PM100 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is require

3089517

Unavailable

2

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

2

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

3

Washer, Flat

7555893

$1.49

3

Washer, Flat

7555893

$1.49

4

Strap, Engine Mount, RH

5246193

$51.99

4

Strap, Engine Mount, LH

5245466

$52.37

4

Strap, Engine Mount, RH

5246193

$51.99

4

Strap, Engine Mount, LH

5245466

$52.37

5

Mount, Engine

3021220

Unavailable

5

Mount, Engine

3021220

Unavailable

6

Spacer, Engine Mount

5245117

$14.49

6

Spacer, Engine Mount

5245117

$14.49

7

NUT, FLANGED

7547180

$2.39

7

NUT, FLANGED

7547180

$2.39

8

Screw

7517399

$8.99

8

Screw

7517399

$8.99

9

Mount, Engine

3021206

$60.70

9

Mount, Engine

3021206

$60.70

10

Screw

7517854

$5.59

10

Screw

7517854

$5.59

11

Bracket, Engine Mounting, RH

5245044

Unavailable

12

Washer, Flat

7555806

$1.49

12

Washer, Flat

7555806

$1.49

12

Washer, Flat

7555806

$1.49

13

NUT, FLEXLOC

7547008

$6.39

13

NUT, FLEXLOC

7547008

$6.39

13

NUT, FLEXLOC

7547008

$6.39

14

Bracket, Engine Mounting, LH

1013397

$24.27

15

SPACER, ENGINE

5245020

$29.99
