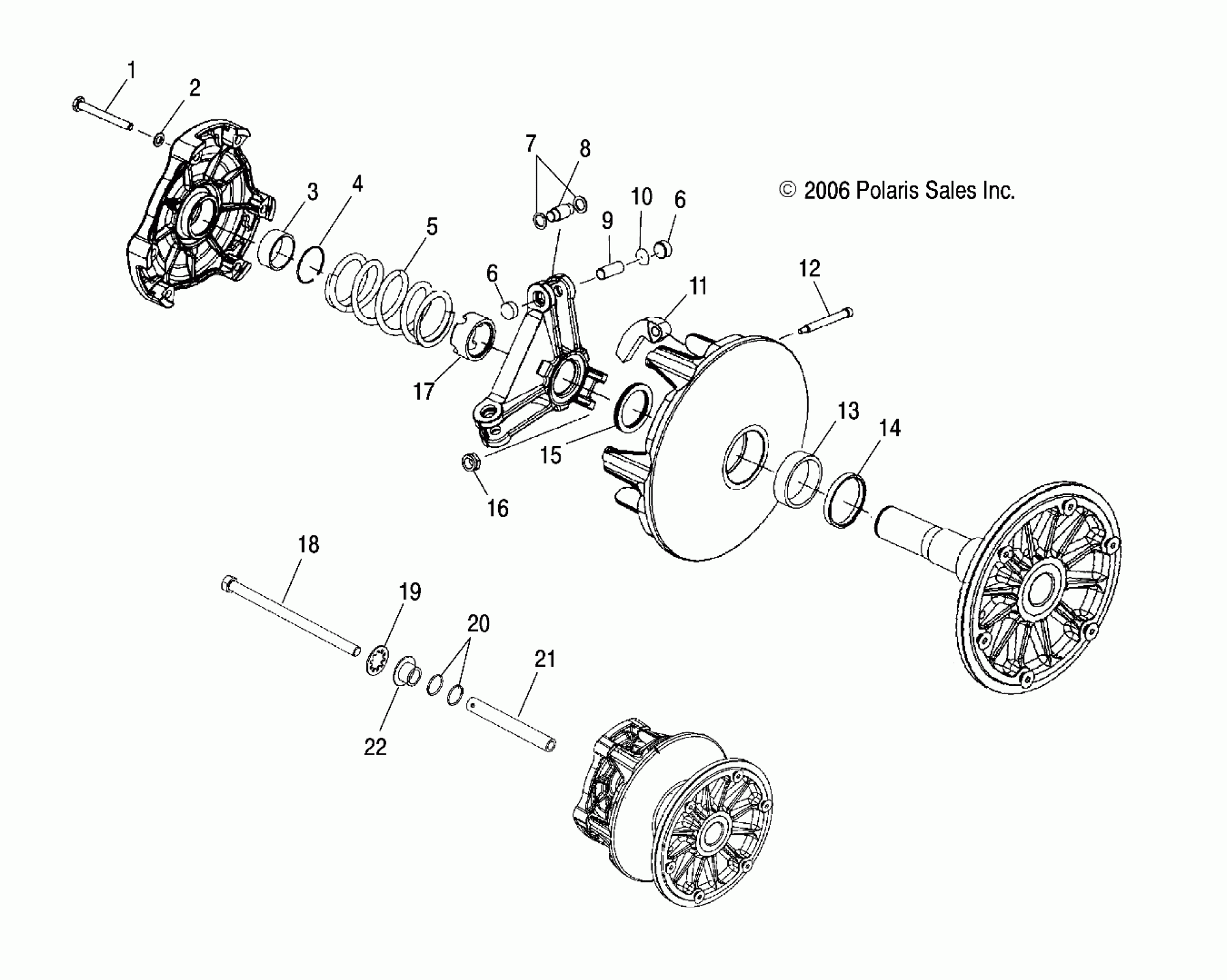

Polaris SUPERSPORT EDGE - S07NP5BS/BE DRIVE CLUTCH - S07NP5BS/BE (49SNOWDRIVECLUTCHSUPER) Diagram

#

Description
Price

-

Asm., Drive Clutch

1321699

Unavailable

1

Bolt

7512265

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

BEARING, COVER

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

Spring, Clutch, Dark Blue/White

7041781

$56.65

6

BUTTON, GUIDE

5430445

$6.39

6

BUTTON, GUIDE

5430445

$6.39

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321622

$32.37

9

PIN, ROLLER

5133079

$6.39

10

Kit - Shim, Drive Clutch

2200387

$24.27

11

ASM., WEIGHT/BUSHING, 10-62

1321586

$40.46

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

Bearing, Sleeve

3576502

$23.99

14

INSERT-MOVEABLE

5010188

$7.99

15

SPACER, .050

5210754

Unavailable

15

SPACER, .020

5210752

Unavailable

15

SPACER, .032

5210753

Unavailable

15

Spacer, .130

5134018

Unavailable

16

NUT, FLEXLOC

7541906

$3.19

17

NUT-JAM

5020425

$23.99

18

SCREW

7517776

$34.99

19

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

20

O-Ring

5410507

$1.49

21

Spacer

5020513

$44.99

22

WASHER, CLUTCH RETAINER

5010287

$12.99
