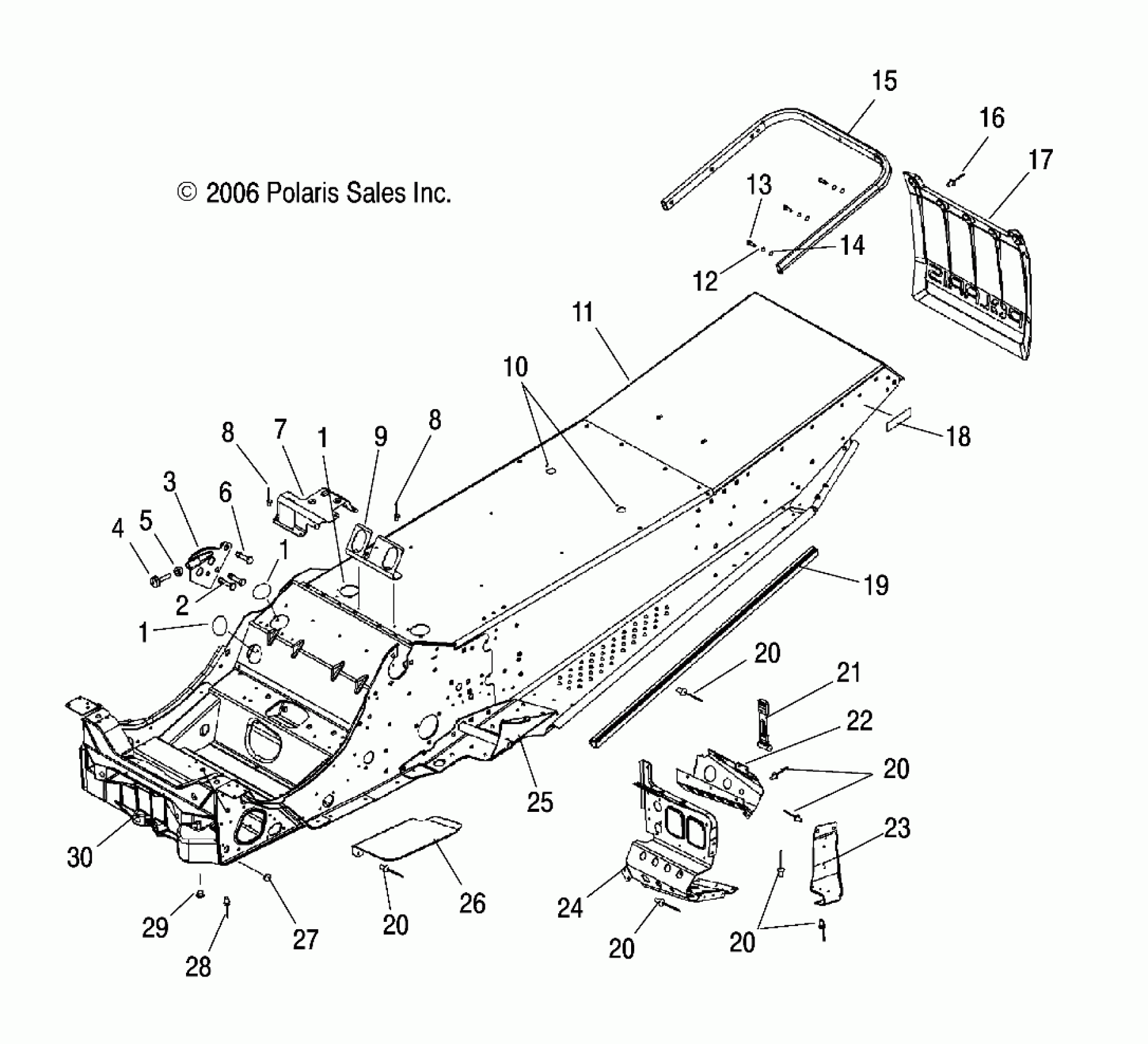

Polaris SUPERSPORT EDGE - S07NP5BS/BE CHASSIS - S07NP5BS/BE (49SNOWCHASSISSUPER) Diagram

#

Description
Price

1

Caplug

7080934

$1.83

1

Caplug

7080934

$1.83

1

Caplug

7080934

$1.83

2

Screw

7517854

$5.59

3

Stop, Torque

1013399

$27.19

4

Stop, Torque

3021104

$20.22

5

NUT

7542404

$1.59

6

SCREW

7517632

$5.59

7

Bracket, Oil Tank/Hose Support

5246330

$13.19

8

Rivet

7621432

$1.49

8

Rivet

7621432

$1.49

9

Bracket, Air Box

5246177

$18.23

10

Caplug

7080592

Unavailable

11

Asm., Chassis, Edge [Incl. 25,30]

1015493-309

$1,192.99

12

WASHER, SPRING LOCK

7552801

$1.59

13

Bolt

7512232

$1.49

14

Washer, Flat

7558301

$1.49

15

Asm., Bumper, Rear

2632165-309

Unavailable

16

RIVET

7621472

$1.49

17

Flap, Snow, Short, Black/White

5433961-1038

Unavailable

18

Reflector, Red

2670133

$5.75

19

Brace, Tunnel, Roll

5245118

$23.81

20

RIVET-3/16-.090-.290

7661637

Unavailable

20

RIVET-3/16-.090-.290

7661637

Unavailable

20

RIVET-3/16-.090-.290

7661637

Unavailable

20

RIVET-3/16-.090-.290

7661637

Unavailable

20

RIVET-3/16-.090-.290

7661637

Unavailable

21

STRAP-AIRBOX TOP

5433150

$24.27

22

Mount, Console, Toe Clip, LH

5245457

Unavailable

22

Mount, Console, Toe Clip, RH

5245458

Unavailable

23

Support, Footrest, LH

5246310

$19.83

23

Support, Footrest, RH

5246311

$32.37

24

Footrest, LH

5245288

Unavailable

24

Footrest, RH

5247205

Unavailable

25

Kit, Trailing Arm Mount, LH

2202059

$213.00

25

Kit, Trailing Arm Mount, RH

2202598

$124.99

26

Guard, Belt

5246066

Unavailable

27

PLUG, HOLE

7080416

$5.65

28

Rivet

7661130

$1.49

29

Plug, Hole

7081076

$3.22

30

Bulkhead, Front

5132292

$115.99
