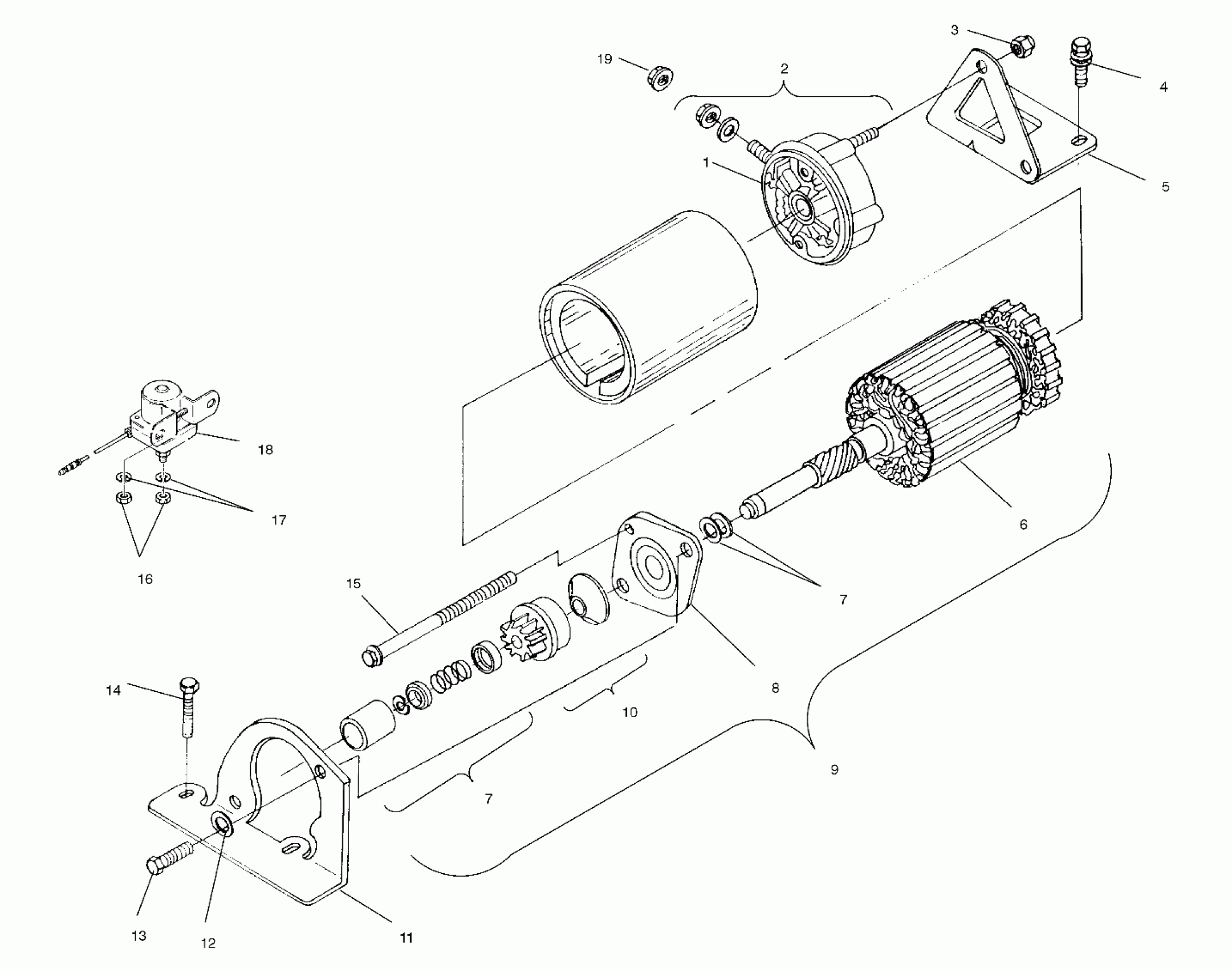

Polaris SUPERSPORT EDGE - S04NP5BS/A/B STARTING MOTOR - S04NP5BS/A/B-S04NE5BS (4988338833D13) Diagram

#

Description
Price

1

Kit, Brush & Spring

2200759

$59.99

1

ASM., BRUSH & SCREW

-------

Unavailable

1

ASM., BRUSH

-------

Unavailable

1

BUSHING, INSULATION

-------

Unavailable

1

WASHER, INSULATION

-------

Unavailable

1

Nut

-------

Unavailable

2

Kit, Commutator Cap [Incl. 1]

2200758

$82.39

3

Nut

7542153

$1.59

4

SCREW

7516815

$6.39

5

Bracket, Starter, Rear

5240956

$16.99

6

Kit, Armature

2200756

$169.99

7

Kit, Drive Hardware

2200755

Unavailable

7

WASHER, CURVED SPRING

-------

Unavailable

7

Washer, Thrust

-------

Unavailable

7

SPACER

-------

Unavailable

7

SPRING, ANTIDRIFT

-------

Unavailable

7

PINION, STOP

-------

Unavailable

7

RING, LOCK

-------

Unavailable

7

COVER, DUST

-------

Unavailable

7

Kit, Drive Hardware

2200755

Unavailable

7

WASHER, CURVED SPRING

-------

Unavailable

7

Washer, Thrust

-------

Unavailable

7

SPACER

-------

Unavailable

7

SPRING, ANTIDRIFT

-------

Unavailable

7

PINION, STOP

-------

Unavailable

7

RING, LOCK

-------

Unavailable

7

COVER, DUST

-------

Unavailable

8

Kit, Drive Cap

2200757

$59.99

9

Motor, Starter, Domestic

4170006

Unavailable

10

Kit, Drive

2200754

Unavailable

10

PLATE, DRIVE

-------

Unavailable

10

PINION

-------

Unavailable

11

Bracket, Starter, Front

5241271

$32.37

12

Washer, Spring Lock

7552603

$1.49

13

Screw

7512492

$1.49

14

Screw

7516730

$6.39

15

Kit, Screw

2200753

$29.99

15

BOLT, THRU

-------

Unavailable

16

NUT

7542105

$3.99

17

Washer, Spring

7552801

$1.59

18

Switch, Magnetic [Incl. 16,17]

4010930

$60.70

19

Nut

7542103

$5.59
