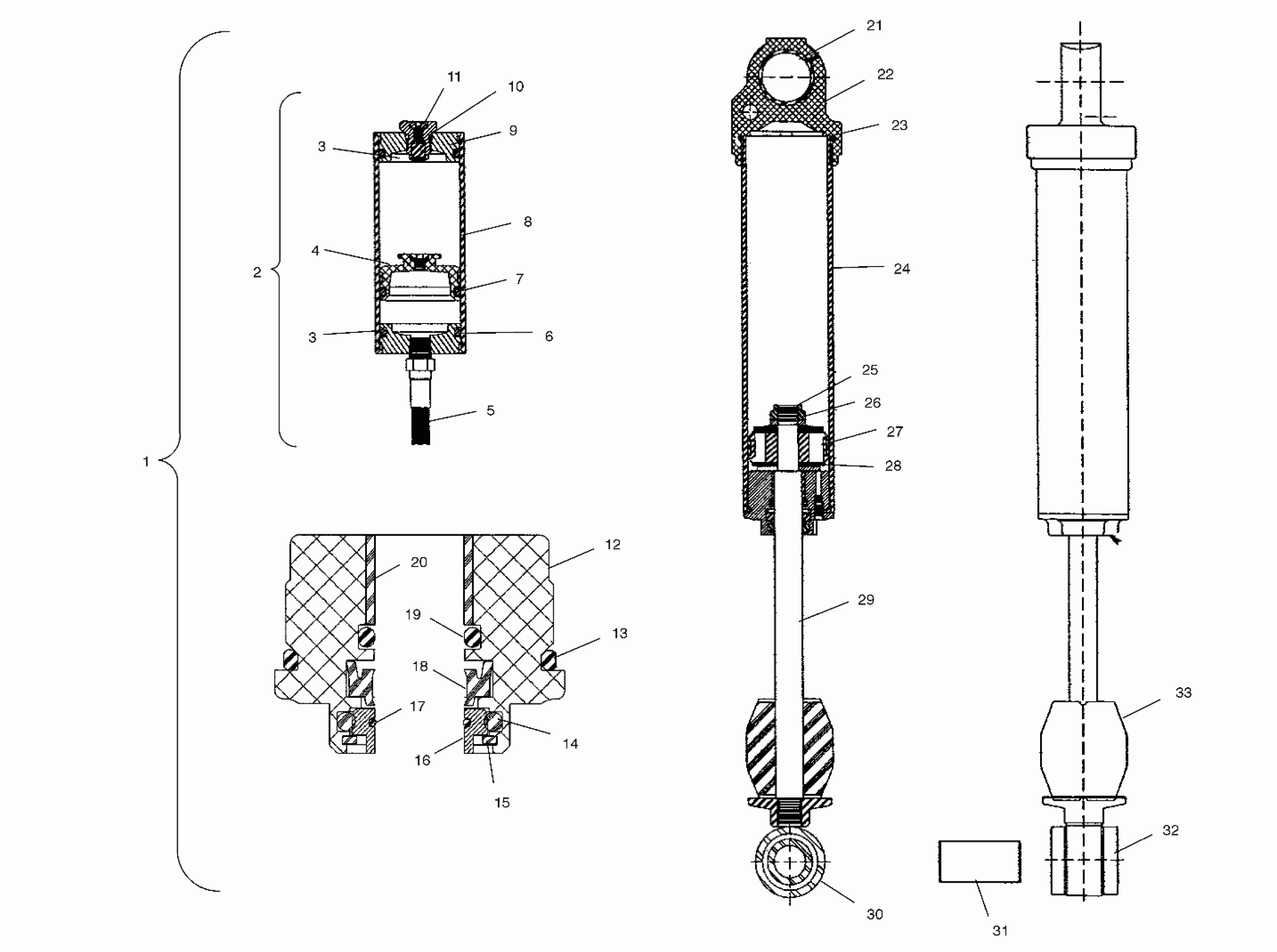

Polaris SUPERSPORT EDGE - S04NP5BS/A/B SHOCK (REAR TRACK)(M-10) - S04NP5BS/A/B-S04NE5BS (4988338833C03) Diagram

#

Description
Price

1

Shock, Rear Track, M-10 [Incl. All]

7042216

Unavailable

2

Asm., Reservoir [Incl. 3-11]

1500449

Unavailable

3

Seal, O-Ring

1500450

Unavailable

3

Seal, O-Ring

1500450

Unavailable

4

Piston, Floating

1500187

$26.98

5

Hose

1500445

Unavailable

6

Cap, Reservoir

1500163

$69.51

7

O-Ring

1500003

$8.89

8

Reservoir

1500451

Unavailable

9

Cap, Reservoir

1500160

$216.17

10

O-Ring

1500023

$2.84

11

Asm., Air Valve

1500014

$69.99

12

Asm., Bearing [Incl. 13-20]

1500545

Unavailable

13

O-Ring

1500020

$10.63

14

O-Ring

1500483

$8.89

15

Ring, Snap

1500486

Unavailable

16

Scraper, FIST

1500485

Unavailable

17

O-Ring

1500484

$8.89

18

U-Cup

1500266

$24.27

19

O-Ring

1500021

$10.99

20

Bearing

1500488

Unavailable

21

Bearing

1500444

Unavailable

22

Cap, Body

1500448

Unavailable

23

O-Ring

1500108

$10.99

24

Body

1500446

$70.39

25

Nut, Lock

1500016

$12.79

26

Plate, Backup

1500015

$6.76

27

Bearing

1500002

$31.99

28

Plate, Top-Out

1500017

$20.22

29

Shaft

1500447

$38.89

30

EYELET

1500164

$93.08

31

SLEEVE

1500310

$23.99

32

Bushing

1500309

Unavailable

33

Bumper

5410855

$39.19
