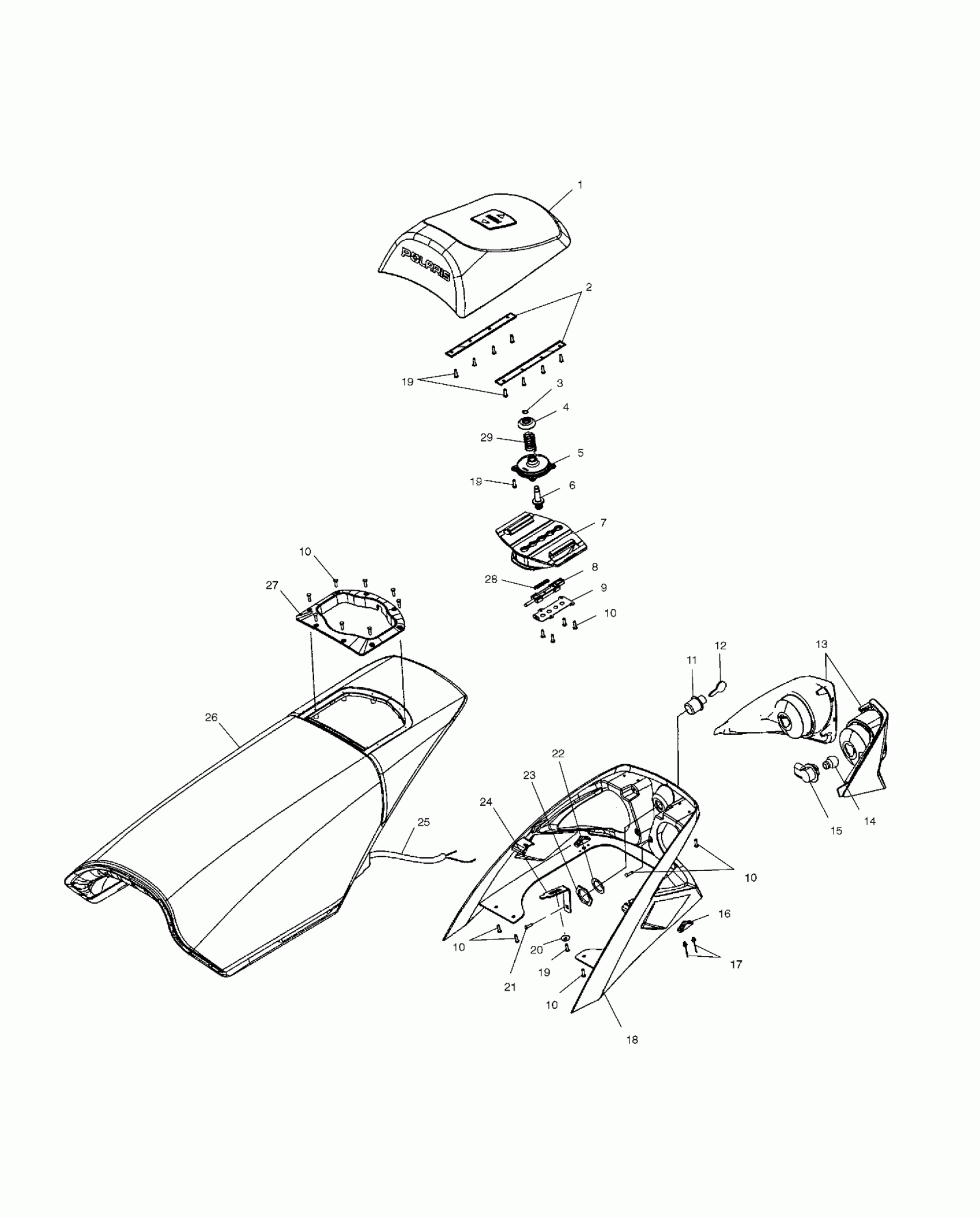

Polaris SUPERSPORT EDGE - S04NP5BS/A/B SEAT, ADJUSTABLE - S04NP5BS/A/B-S04NE5BS (4988338833A07) Diagram

#

Description
Price

1

Asm., Seat Bucket

5434819-070

Unavailable

2

Plate, Adjustable Seat

5247123

$75.99

3

Ring, Retaining

7710429

$2.54

4

Cap, Plunger, Seat Bucket

5434822

$4.95

5

Plunger, Seat Bucket

5133975

$11.51

6

Base, Plunger

5434821

$12.39

7

Cover, Trunk

5434816

$36.31

8

Latch, Trunk

5434814

$21.43

9

Lock, Bracket

5247107

Unavailable

10

SCREW

7512026

$1.49

10

SCREW

7512026

$1.49

10

SCREW

7512026

$1.49

10

SCREW

7512026

$1.49

10

SCREW

7512026

$1.49

11

Lock, Adjustable Seat w/Keys, 1333 [Incl. 12]

7081121-03

Unavailable

11

Lock, Adjustable Seat w/Keys, 1334 [Incl. 12]

7081121-04

Unavailable

11

Lock, Adjustable Seat w/Keys, 1335 [Incl. 12]

7081121-05

Unavailable

11

Lock, Adjustable Seat w/Keys, 1336 [Incl. 12]

7081121-06

Unavailable

11

Lock, Adjustable Seat w/Keys, 1337 [Incl. 12]

7081121-07

Unavailable

12

Key, Adjustable Seat [Must order #11 Lock to get a Key]

-------

Unavailable

13

Asm., Taillight, LH

2410395

$66.39

13

Asm., Taillight, RH

2410396

$70.39

14

BULB, TAILLIGHT

4010764

$20.22

15

Socket, Bulb

4010767

Unavailable

16

NUT, SEAT

5631194

$4.99

17

RIVET

7621319

$1.49

18

Trunk, Bottom, Black

5434813-070

Unavailable

19

SCREW

7518238

$3.99

19

SCREW

7518238

$3.99

19

SCREW

7518238

$3.99

20

WASHER

7555792

$4.79

21

Screw

7081162

$1.49

22

Washer

7081161

Unavailable

23

Nut

7081160

Unavailable

24

Bracket, Pushlock

5247221

$23.19

25

Harness, Taillight

2461126

$40.79

26

Asm., Seat, Adjustable, Edge, Blue/White

2683290

Unavailable

26

Asm., Seat Cover, Adjustable Seat

2683358

Unavailable

27

Flange, Trunk

5434812

$15.67

28

Spring, Compression, Lock

7042232

$4.95

29

Spring, Compression, Plunger

7042199

$4.92
