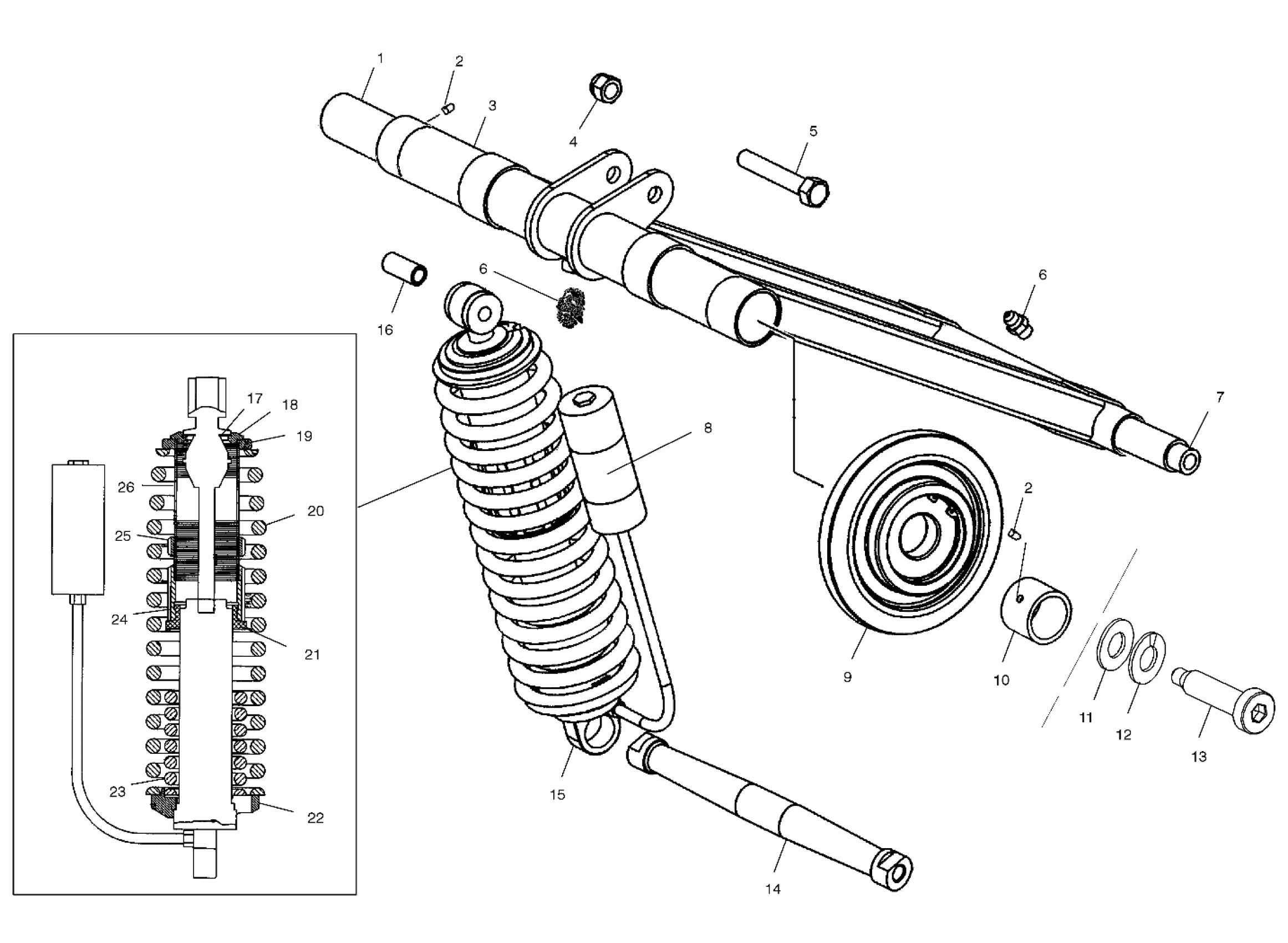

Polaris SUPERSPORT EDGE - S04NP5BS/A/B REAR TORQUE ARM (M-10) - S04NP5BS/A/B-S04NE5BS (4988338833C01) Diagram

#

Description
Price

1

Shaft

5132578

Unavailable

2

Screw, Set

7512257

$3.99

2

Screw, Set

7512257

$3.99

3

Arm, Torque, M-10, Black

1541527-067

Unavailable

4

Nut, Nylok

7542439

$1.49

5

Screw

7515415

$1.49

6

FITTING-LUBRICATION 1/4-28

7080424

$4.79

6

FITTING-LUBRICATION 1/4-28

7080424

$4.79

7

Shaft

5133093

$28.79

8

Decal, M-10, Fox

7079432

Unavailable

9

Asm., Wheel

1590308

Unavailable

9

Bearing

3514330

$31.99

9

Ring, Retaining

7710471

$13.59

10

Collar

5132582

Unavailable

11

Washer, Flat

7555984

$2.39

12

WASHER-LOCK, 7/16-B

7552614

$1.59

13

Screw, Socket Head

7517815

Unavailable

14

SHAFT, TAPERED [SEE REAR SUSPENSION [M-10] PG. B13, REF. 25]

-------

Unavailable

15

Shock, Rear Track, M-10 [See Shock [Rear Track][M-10] Pg. C3 for Details]

7042216

Unavailable

16

SLEEVE

5333905

$15.99

17

Cap

5244747

$5.75

18

Retainer, Spring Slotted

5020618

$24.99

19

Nut, Preload

5132645

Unavailable

20

Spring, Shock, Rear, M-10, Black

7041935-067

Unavailable

21

Bushing

5433882

$5.78

22

Retainer, Spring, Rear

5133032

$84.99

23

Spring, Overload, Rear

7041936-067

Unavailable

24

Ring, Adjuster

5132625

$97.99

25

Nut, Ring Adjuster

5132643

Unavailable

26

Sleeve

5132794

$29.37
