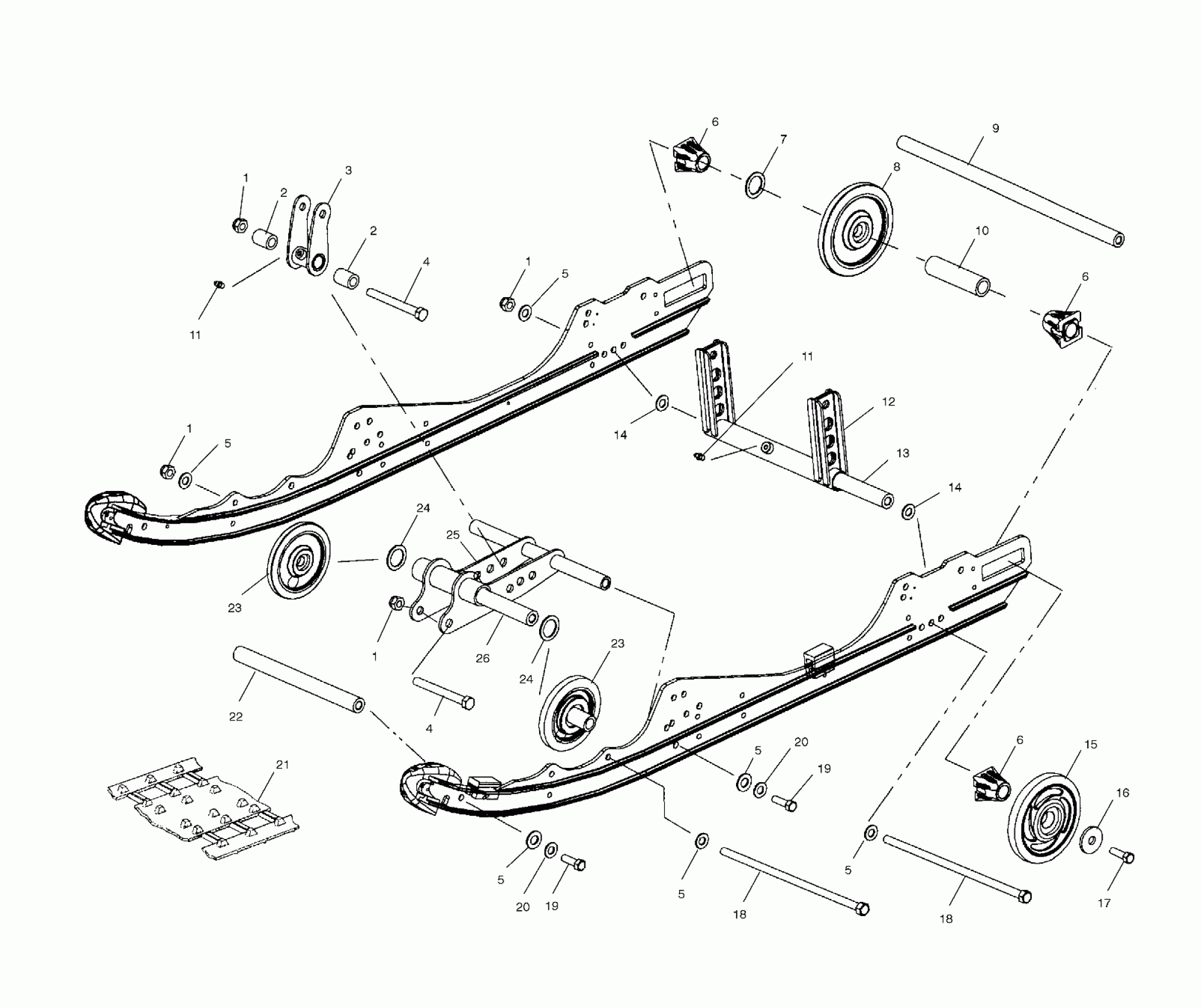

Polaris SUPERSPORT EDGE - S04NP5BS/A/B REAR SUSPENSION (EDGE) - S04NP5BS/A/B-S04NE5BS (4988338833B09) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

2

Bushing

5133233

$11.99

2

Bushing

5133233

$11.99

3

Arm, Pivot, Shock

1541477-067

$56.99

4

SCREW

7515417

$4.79

4

SCREW

7515417

$4.79

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

7

BUSHING

7555918

$1.59

8

Wheel

1594087

$72.84

9

SHAFT, IDLER

5020744

$59.99

10

SPACER-IDLER, LONG

5333285

$11.99

11

FITTING-LUBRICATION 1/4-28

7080424

$4.79

11

FITTING-LUBRICATION 1/4-28

7080424

$4.79

12

Arm, Pivot, Rear

1541707-067

$32.95

13

SHAFT

5333404

$24.27

14

Washer, Flat

7555893

$1.49

14

Washer, Flat

7555893

$1.49

15

BEARING

3514384

$19.84

15

RING-RETAINING

7710444

$8.79

15

Asm., Idler Wheel, Silver

1590303-244

Unavailable

16

WASHER, BELLE

7556130

$6.39

17

BOLT

7517731

$1.49

18

SCREW

7517921

$23.99

18

SCREW

7517921

$23.99

19

Screw

7517247

$3.19

19

Screw

7517247

$3.19

20

Washer, Spring Lock

7552603

$1.49

20

Washer, Spring Lock

7552603

$1.49

21

CLIP, GUIDE

5222840

Unavailable

21

Track [.82 Inch]

5411057

$583.99

22

Shaft, Pivot Arm

5020723

$29.99

23

Asm., Wheel

1541485

$72.84

23

Asm., Wheel

1541485

$72.84

24

Bushing

7556301

$3.19

24

Bushing

7556301

$3.19

25

Mount, Shock

1541711-067

$109.99

26

Shaft

5132490

Unavailable
