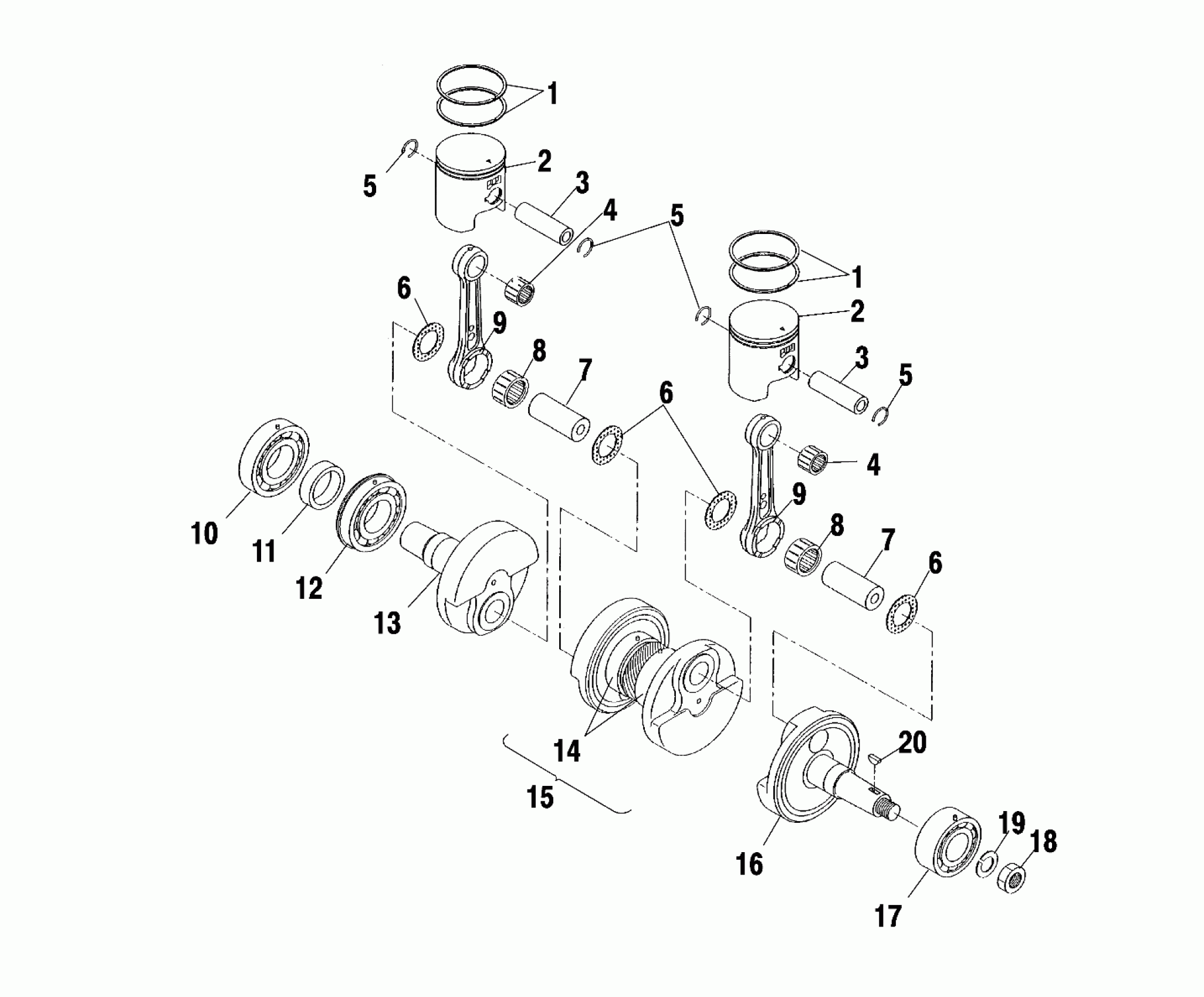

Polaris SUPERSPORT EDGE - S04NP5BS/A/B PISTON and CRANKSHAFT - S04NP5BS/A/B-S04NE5BS (4988338833D07) Diagram

#

Description
Price

1

Ring, Piston [Standard]

3086988

Unavailable

1

Ring, Piston [0.25mm/.010 Inch O/S]

3086989

Unavailable

1

Ring, Piston [0.50mm/.020 Inch O/S]

3086990

$33.32

1

Ring, Piston [Standard]

3086988

Unavailable

1

Ring, Piston [0.25mm/.010 Inch O/S]

3086989

Unavailable

1

Ring, Piston [0.50mm/.020 Inch O/S]

3086990

$33.32

2

Piston, Set [Standard]

3088216

Unavailable

2

Piston, Set [0.25m/.010 O/S]

3088217

$142.84

2

Piston, Set [0.50m/.020 O/S]

3088218

$152.37

2

Piston, Set [Standard]

3088216

Unavailable

2

Piston, Set [0.25m/.010 O/S]

3088217

$142.84

2

Piston, Set [0.50m/.020 O/S]

3088218

$152.37

3

Pin, Piston

3083838

$27.99

3

Pin, Piston

3083838

$27.99

4

BEARING, END, SMALL

3083216

$16.57

4

BEARING, END, SMALL

3083216

$16.57

5

Clip, Piston Pin

3084167

$6.39

5

Clip, Piston Pin

3084167

$6.39

5

Clip, Piston Pin

3084167

$6.39

6

SPACER, CRANK PIN

3083277

$15.99

6

SPACER, CRANK PIN

3083277

$15.99

6

SPACER, CRANK PIN

3083277

$15.99

7

Crank Pin No. 2

3083456

Unavailable

7

Crank Pin No. 2

3083456

Unavailable

8

BEARING, END, LARGE

3086390

$1,634.99

8

BEARING, END, LARGE

3086390

$1,634.99

9

ROD, CONNECTING

3240083

$1,634.99

9

ROD, CONNECTING

3240083

$1,634.99

10

BEARING, BALL

3085754

$64.99

11

SPACER

3085677

$11.99

12

BEARING, BALL

3085753

$64.99

13

Crankshaft 3 [PTO Side]

3088199

$319.99

14

BEARING, BALL

3084586

$44.99

15

Crankshaft 2 [Incl. 7]

3085674

$694.99

16

Crankshaft 1 [MAG Side]

3087177

$529.99

16

Asm., Crankshaft [Incl. 6-9,10,14-15]

3088198

$1,684.99

17

BEARING, BALL

3084681

Unavailable

18

NUT

3083093

$19.99

19

WASHER, SPRING

3083094

$3.17

20

Key

3080130

Unavailable
