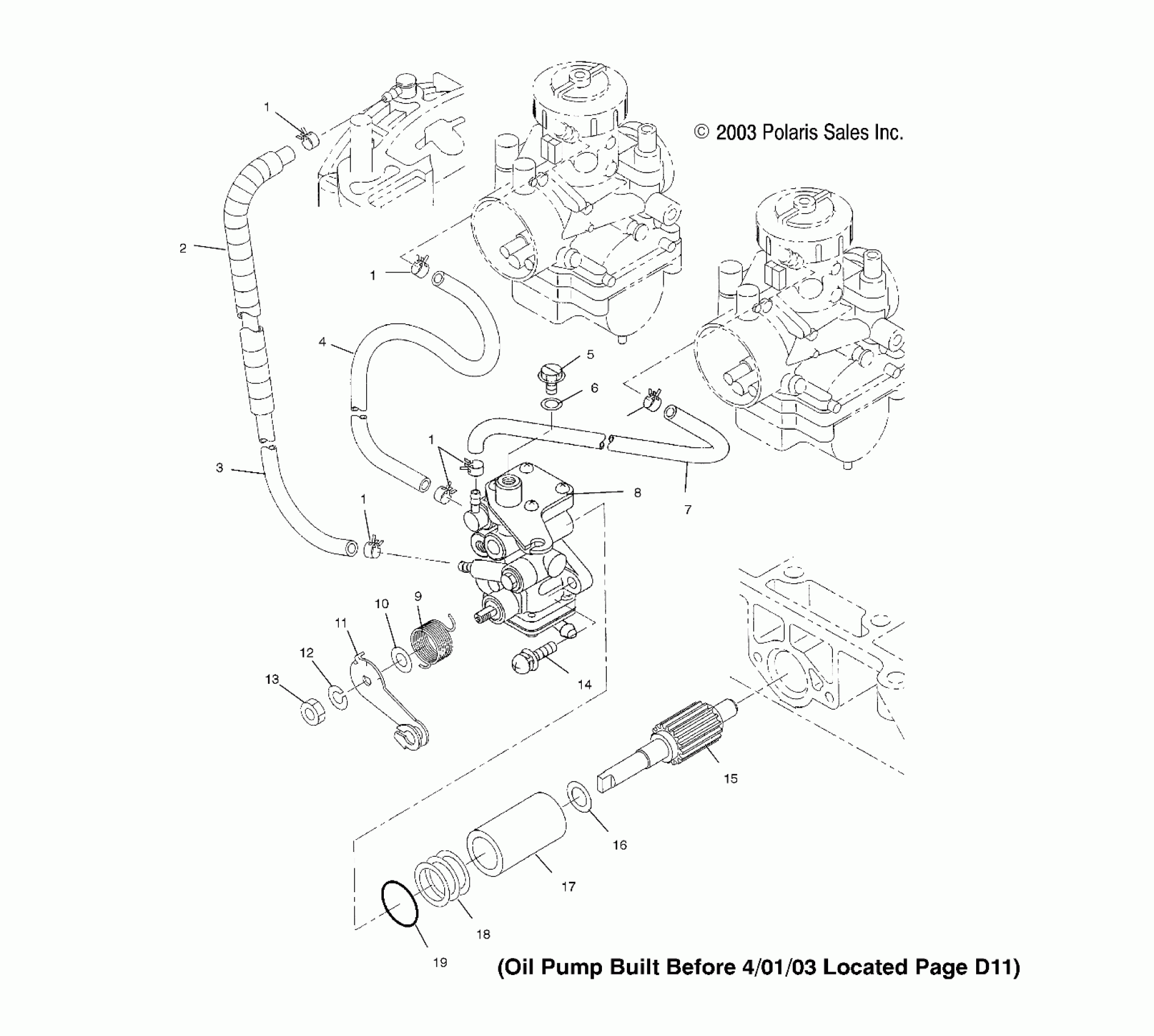

Polaris SUPERSPORT EDGE - S04NP5BS/A/B OIL PUMP (3 Way)(Built After 4/01/03) - S04NP5BS/A/B-S04NE5BS (4988338833E01) Diagram

#

Description
Price

1

Clamp, Hose

3083141

$1.49

1

Clamp, Hose

3083141

$1.49

1

Clamp, Hose

3083141

$1.49

1

Clamp, Hose

3083141

$1.49

2

TUBE

3087114

Unavailable

3

Pipe, Rubber

3087113

Unavailable

4

Pipe, Vinyl 2

3085157

$29.99

5

Screw, Air Vent

3083125

Unavailable

6

Packing

3083126

$4.03

7

PIPE, VINYL

3087185

Unavailable

8

Asm., Oil Pump (Incl. 3-10,16)(If built after 4/01/03)

3089223

Unavailable

9

SPRING, RETURN

3089228

$71.99

10

COLLAR, CAM SHAFT

3083445

$2.39

11

LEVER, CONTROL

3089227

Unavailable

12

Washer, Spring

3083121

$299.99

13

Nut

3083120

$3.19

14

Screw and Washer

3083783

$2.39

15

Gear, Small

3083131

$89.99

16

SPACER

3083130

$1.59

17

Bushing, Oil Pump

3083353

$31.99

18

Spacer 3 (.6)

3083673

Unavailable

18

Spacer 2 (.3)

3083672

Unavailable

18

Spacer 1 (.15)

3083671

Unavailable

19

O-Ring

3083127

Unavailable
