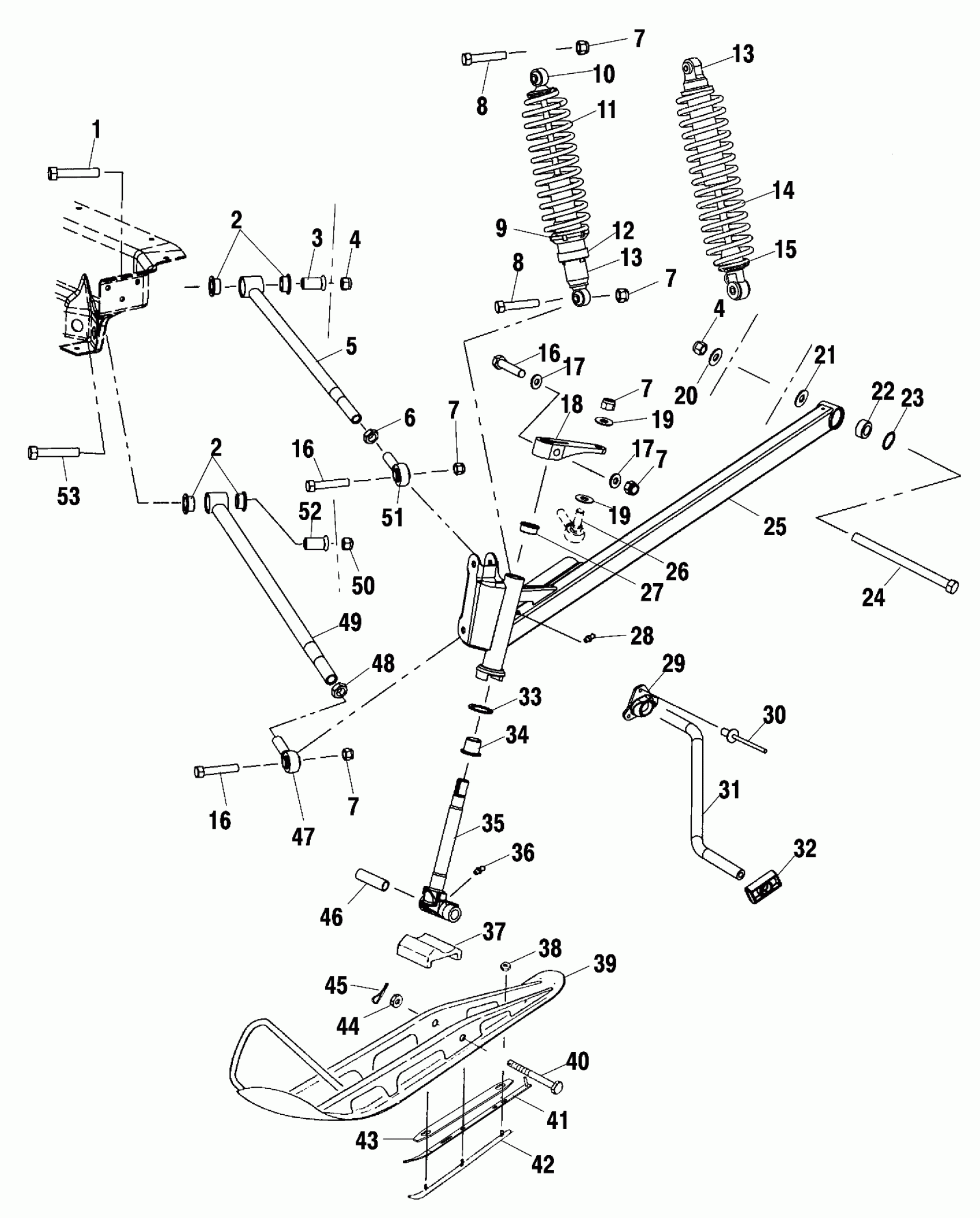

Polaris SUPERSPORT EDGE - S04NP5BS/A/B FRONT SUSPENSION and SKI - S04NP5BS/A/B-S04NE5BS (4988338833B01) Diagram

#

Description
Price

1

Bolt

7517980

$7.99

2

Bushing, Pivot, Inner

5434036

$14.99

2

Bushing, Pivot, Inner

5434036

$14.99

3

Bushing, Shoulder

5132779

$11.99

4

Nut, Nylok

7547066

$1.59

4

Nut, Nylok

7547066

$1.59

5

Rod, Radius, Upper

1820679-067

$104.99

6

Nut, Jam

7542520

$2.39

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

8

Screw

7515433

$1.59

8

Screw

7515433

$1.59

9

Ring, Spring Preload

5431734

$52.60

10

Retainer, Spring, Slotted

5630580

Unavailable

11

Spring, Compression

7041551-067

$74.99

12

Retainer, Threaded

1500063

$44.51

13

Shock

7041932

Unavailable

13

Shock, IFS [See Shock - IFS [Edge] Pg. C4 for Details]

7042211

Unavailable

13

Shock

7041932

Unavailable

13

Shock, IFS [See Shock - IFS [Edge] Pg. C4 for Details]

7042211

Unavailable

14

Spring

7042195-067

Unavailable

15

Retainer, Spring

5020618

$24.99

16

SCREW

7517583

$4.35

16

SCREW

7517583

$4.35

16

SCREW

7517583

$4.35

17

WSHR-.813X.406X.105-Y

7555832

$2.39

17

WSHR-.813X.406X.105-Y

7555832

$2.39

18

Arm, Steering

5132728

$79.99

19

Washer, Flat

7555797

$3.99

19

Washer, Flat

7555797

$3.99

20

WASHER, FLAT

7555820

$3.99

21

Cup, Trailing Arm Mount

5132364

$20.22

22

Bearing, Spherical

7061042

$31.99

23

Ring, Retaining

7710437

$3.19

24

Screw

7512099

$19.99

25

Asm., Trailing Arm, CLoud Silver, LH [Incl. 22,23]

1821165-385

Unavailable

25

Asm., Trailing Arm, Cloud Silver, RH [Incl. 22,23]

1821166-385

Unavailable

26

ROD END [SEE STEERING PG B5, REF 6]

-------

Unavailable

27

Bushing

3573909

$2.39

28

Fitting, Lubrication

7080433

$1.49

29

Bushing, Torsion Bar

5433234

$23.99

30

Rivet

7621452

$1.49

31

Bar, Torsion

5244415-067

Unavailable

32

Slide, Torsion Bar

5434369

Unavailable

33

Bushing

7556509

$1.59

34

BUSHING, FLANGED

3574208

$3.19

35

Shaft, Spindle

6230225-067

$219.99

36

Fitting, Lubrication

7080306

$3.19

37

Stop, Rubber

5411083

$12.94

38

NUT-5/16-18 NYLOK-Y

7542324

$1.49

39

Ski

1820430-067

Unavailable

40

Screw

7515462

$8.79

41

Plate, Skag

1011829-067

$54.99

41

Kit, Carbide, 3", Easy Steer [Incl. Skag and Plate]

2870976

Unavailable

42

Skag

1820318-067

$49.99

43

Shim, Skag Plate

5245145-067

Unavailable

44

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

45

Pin, Cotter

7661209

Unavailable

46

Bushing

5010158

$19.99

47

Rod End

7061060

$48.56

48

Nut

7542711

$2.39

49

Rod, Radius, Lower

1820677-067

$104.99

50

Nut, Nylok

7547065

$3.99

51

Rod End

7061061

$48.56

52

Bushing, Shoulder

5132780

$7.99

53

Bolt

7512684

Unavailable
