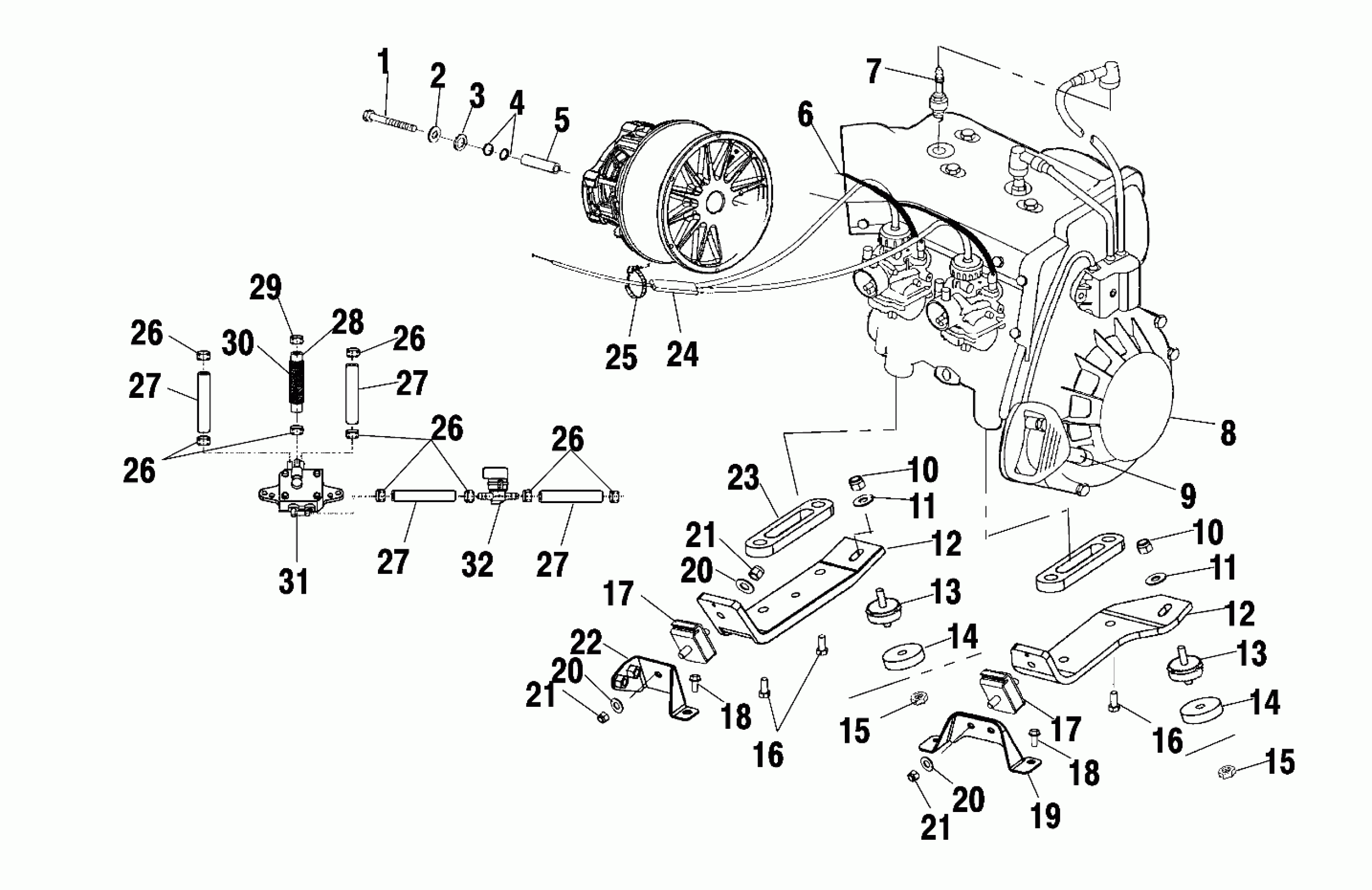

Polaris SUPERSPORT EDGE - S04NP5BS/A/B ENGINE MOUNTING - S04NP5BS/A/B-S04NE5BS (4988338833D04) Diagram

#

Description
Price

1

SCREW

7517776

$34.99

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

Washer, Clutch Retainer, Short

5010287

$12.99

4

O-RING, CLUTCH BOLT

5410507

$1.49

5

SPACER, CLUTCH BOLT

5020513

$44.99

6

Cable, Choke Control

7080290

$105.22

7

SPARK PLUG-NGK BR9ES

3070163

$3.99

8

Engine, Short Block, EC55PM06 SB (If built before 4/01/03) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. P

3087197

Unavailable

8

Edngine, Short Block, EC55PM07/09 (If built after 4/01/03) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. P

3088822

Unavailable

9

Handle, Recoil

5431499-070

$15.48

10

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

10

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

11

Washer, Flat

7555893

$1.49

11

Washer, Flat

7555893

$1.49

12

Strap, Engine Mount, RH

5246193

$51.99

12

Strap, Engine Mount, LH

5245466

$52.37

12

Strap, Engine Mount, RH

5246193

$51.99

12

Strap, Engine Mount, LH

5245466

$52.37

13

Mount, Engine

3021220

Unavailable

13

Mount, Engine

3021220

Unavailable

14

Spacer, Engine Mount

5245117

$14.49

14

Spacer, Engine Mount

5245117

$14.49

15

NUT, FLANGED

7547180

$2.39

15

NUT, FLANGED

7547180

$2.39

16

Screw

7517399

$8.99

16

Screw

7517399

$8.99

17

Mount, Engine

3021206

$60.70

17

Mount, Engine

3021206

$60.70

18

Screw

7517854

$5.59

18

Screw

7517854

$5.59

19

Bracket, Engine Mounting, RH

5245044

Unavailable

20

Washer, Flat

7555806

$1.49

20

Washer, Flat

7555806

$1.49

20

Washer, Flat

7555806

$1.49

21

Nut, FLEXLOC, Thin

7547008

$6.39

21

Nut, FLEXLOC, Thin

7547008

$6.39

21

Nut, FLEXLOC, Thin

7547008

$6.39

22

Bracket, Engine Mounting, LH

1013397

$24.27

23

SPACER, ENGINE

5245020

$29.99

24

Cable, Throttle (If built before 4/01/03)

7080888

$157.84

24

Cable, Throttle (If built after 4/01/03)

7081172

$109.99

25

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

Line, Fuel

8350018-600

Unavailable

27

Line, Fuel

8350018-600

Unavailable

27

Line, Fuel

8350018-600

Unavailable

27

Line, Fuel

8350018-600

Unavailable

28

Line, Fuel

8450040-600

Unavailable

29

HOSE CLAMP, RED

7080003

$1.49

30

TUBING, CONVOLUTED

8360052-305

$28.32

31

ASM., FUEL PUMP [SEE FUEL PUMP PG. D10, REF. 2]

-------

Unavailable

32

Valve, Fuel Shut-Off

7052248

$24.27
