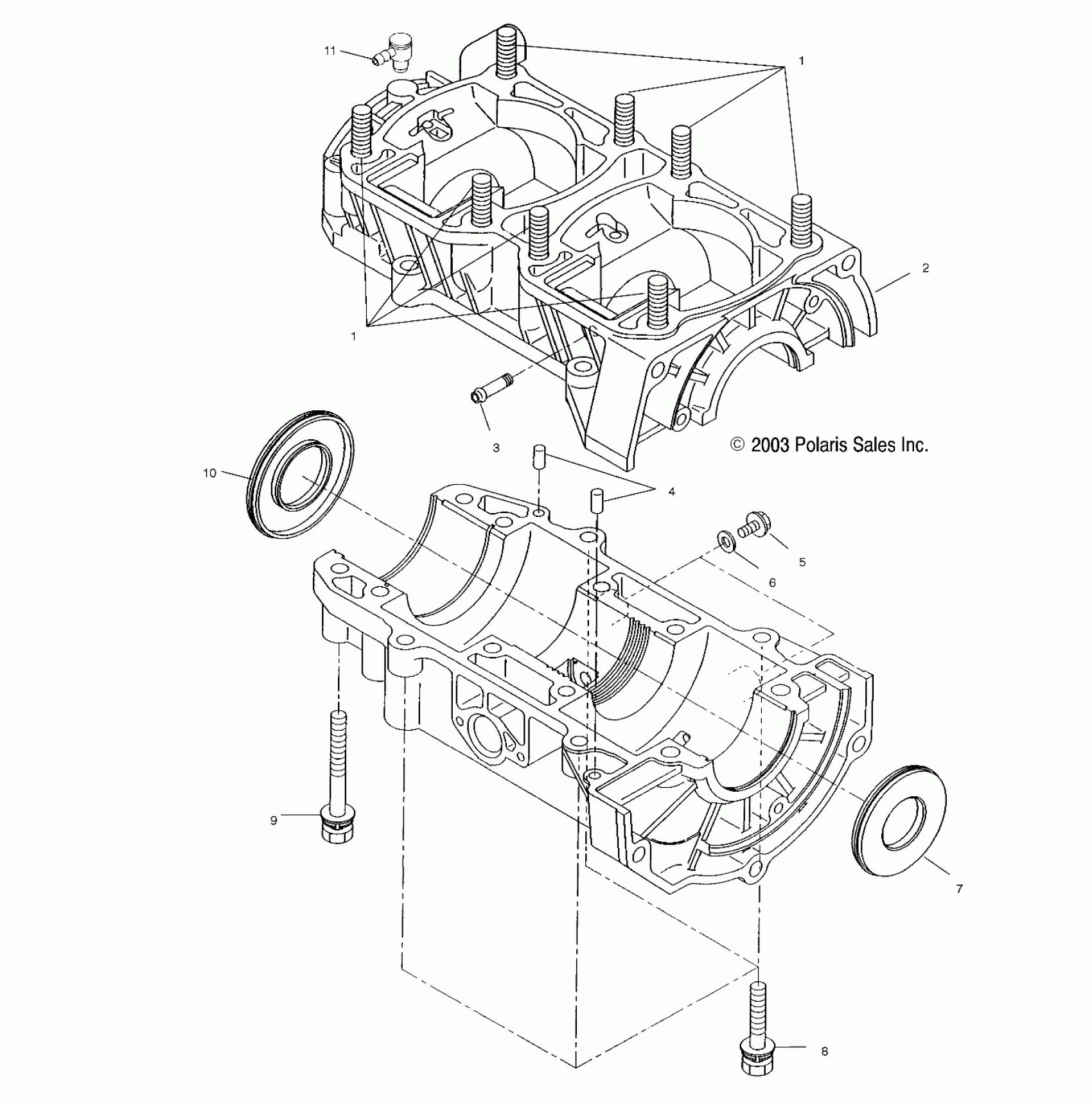

Polaris SUPERSPORT EDGE - S04NP5BS/A/B CRANKCASE - S04NP5BS/A/B-S04NE5BS (4988338833D05) Diagram

#

Description
Price

1

STUD

3085713

$3.17

1

STUD

3085713

$3.17

2

Asm., Crankcase (If built after 4/01/03)[Incl. 1-4,8,9]

3089225

$734.99

2

Asm., Crankcase (If built before 4/01/03)[Incl. 1-4,8,9]

3088213

Unavailable

3

PIPE, PULSE

3083798

$9.52

4

Pin, Dowel

3080103

$7.14

5

Bolt, Flange

3083568

$3.85

6

Gasket, Aluminum

3082758

$1.19

7

SEAL, OIL

3085664

$28.32

8

Bolt and Washer

3084225

$3.99

9

Bolt and Washer

3084670

Unavailable

10

SEAL, OIL

3085241

Unavailable

11

Nipple (If built after 4/01/03)

3085462

Unavailable
