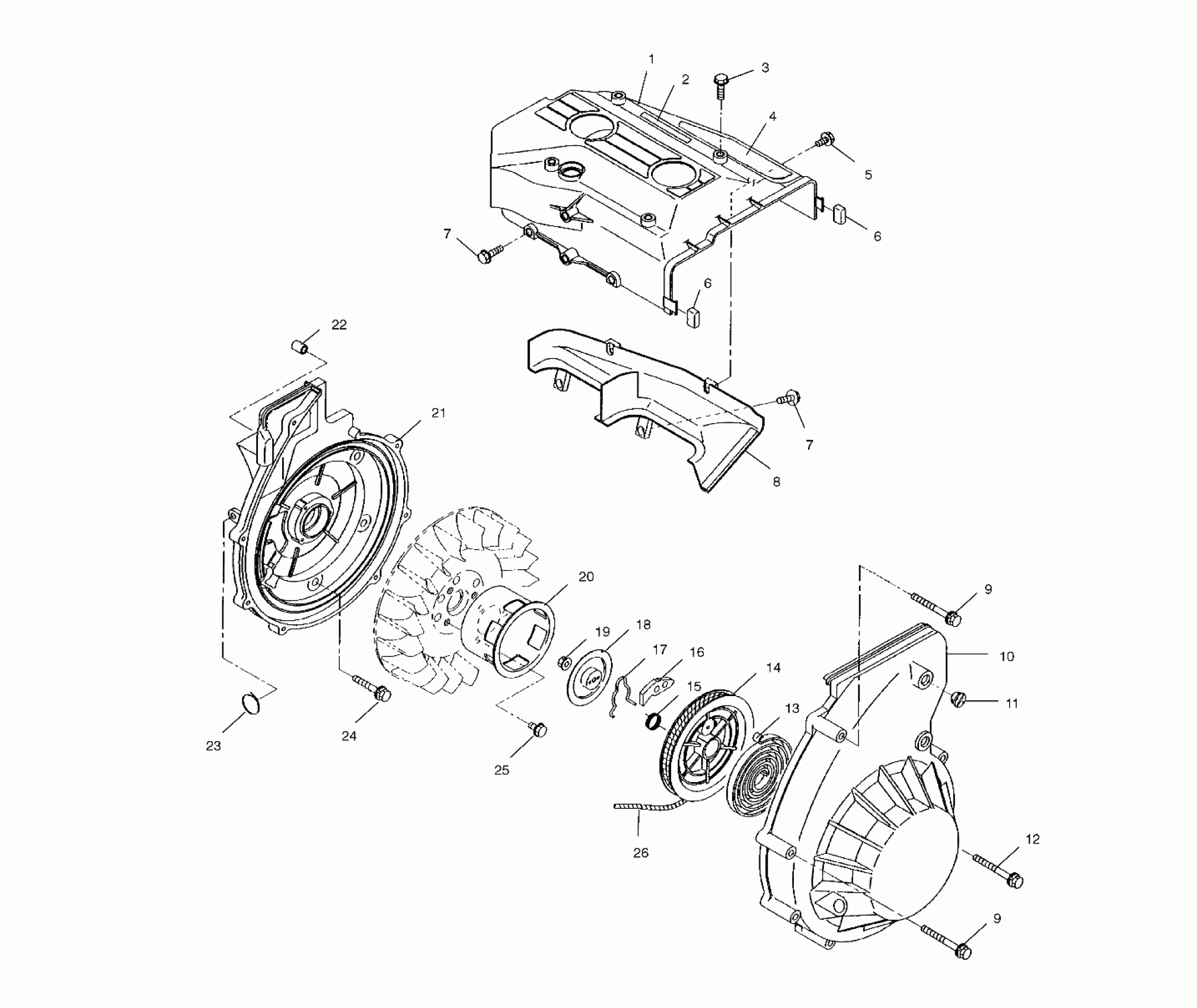

Polaris SUPERSPORT EDGE - S04NP5BS/A/B BLOWER HOUSING and RECOIL STARTER - S04NP5BS/A/B-S04NE5BS (4988338833D08) Diagram

#

Description
Price

1

Baffle, Cylinder, 1

3086991

$119.99

2

Decal, "POLARIS", Engine Shroud

7079511

Unavailable

3

Bolt, Flange

3084566

$3.19

4

Decal, "550", Engine Shroud

7079510

Unavailable

5

Bolt, Flange

3085693

$2.39

6

CAP, CYLINDER BAFFLE

3085690

$9.70

6

CAP, CYLINDER BAFFLE

3085690

$9.70

7

Bolt, Flange

3085694

$2.63

7

Bolt, Flange

3085694

$2.63

8

Cylinder Baffle 2

3085691

Unavailable

9

Bolt and Washer

3083550

Unavailable

9

Bolt and Washer

3083550

Unavailable

10

Case, Starter

3087180

$242.84

10

Starter, Recoil [Incl. 13-19,26]

3087206

Unavailable

11

Plug, Rubber

3086792

$24.27

12

Bolt and Washer

3082030

$3.97

13

Spring, Spiral

3083376

$179.11

14

Reel

3083377

$56.65

15

Spring, Return

3083463

$4.03

16

Ratchet

3087207

$11.99

17

Spring, Friction

3083379

$24.27

18

Plate, Friction

3083464

$28.32

19

Nut, Flange

3083381

$2.99

20

Pulley, Starting

3087181

$36.41

21

Housing, Blower

3087020

$178.08

22

Pin, Straight

3084857

Unavailable

23

Band, Wire

3084823

$12.79

24

Bolt and Washer

3084225

$3.99

25

Bolt and Washer

3085688

$2.99

26

Rope, Starter

3085723

Unavailable
