Description

Price

11012

CAP,JET PUMP

11012-3712

$58.91

13107

SHAFT,JET PUMP

13107-3721

$77.79

13234

SHAFT-COMP,JOINT

13234-3708

Unavailable

39145

TRIM-SEAL

39145-3732

$66.68

52014

ELBOW

52014-3708

$34.82

59136

NOZZLE-PUMP

59136-3721

$135.61

59256

IMPELLER

59256-3720

Unavailable

59266

JOINT-BALL

59266-3707

$66.16

59366

GRATE

59366-3710

$212.40

59476

NOZZLE-STRG

59476-3717

Unavailable

59496

VANE-GUIDE

59496-3703

$1,103.37

92001

BOLT,BALL,6MM

92001-3703

Unavailable

92002

BOLT,6X30

92002-3726

$4.69

92002A

BOLT,6X16

92002-3728

$4.69

92002B

BOLT,SOCKET,8X20

92002-3771

$8.28

92022

WASHER

92022-567

$2.67

92028

BUSHING,17X25X15

92028-3717

$34.49

92028A

BUSHING

92028-3740

$8.14

92045

BEARING-BALL,#63032RD

92045-3706

$39.98

92049

SEAL-OIL,TBY25X47X6

92049-3714

$33.99

92055

RING-O,13X1.9

92055-1021

$7.62

92055A

RING-O

92055-3706

$4.45

92062A

NOZZLE

92062-3714

$121.77

92093

SEAL,JET PUMP

92093-3739

$15.50

92143

COLLAR,17.4X25.4X53

92143-3708

$24.05

92150

BOLT,SOCKET,6X18

92150-3795

$4.69

92150A

BOLT

92150-3808

$26.47

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

410A

WASHER-PLAIN-SMALL,8MM

410S0800

$2.58

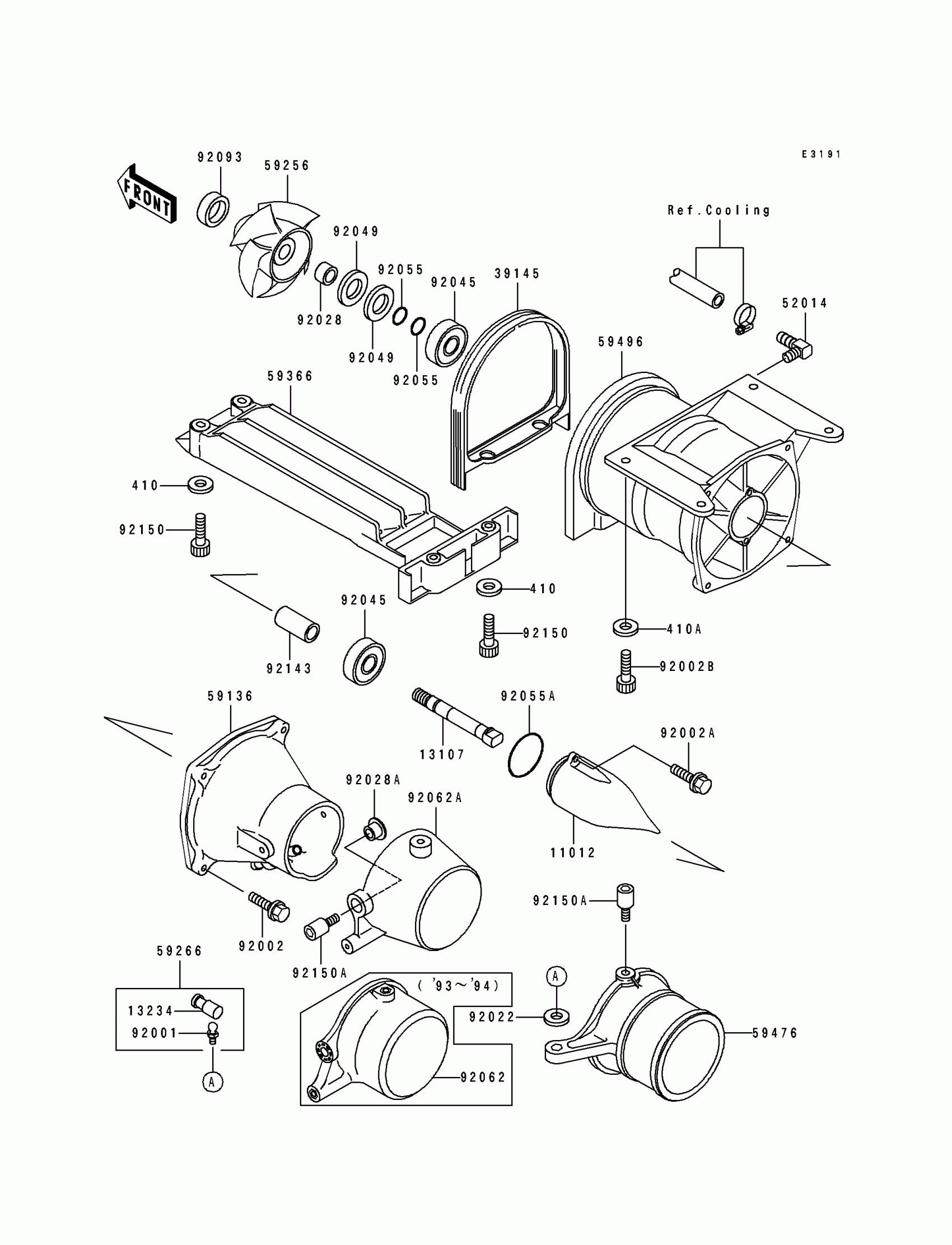

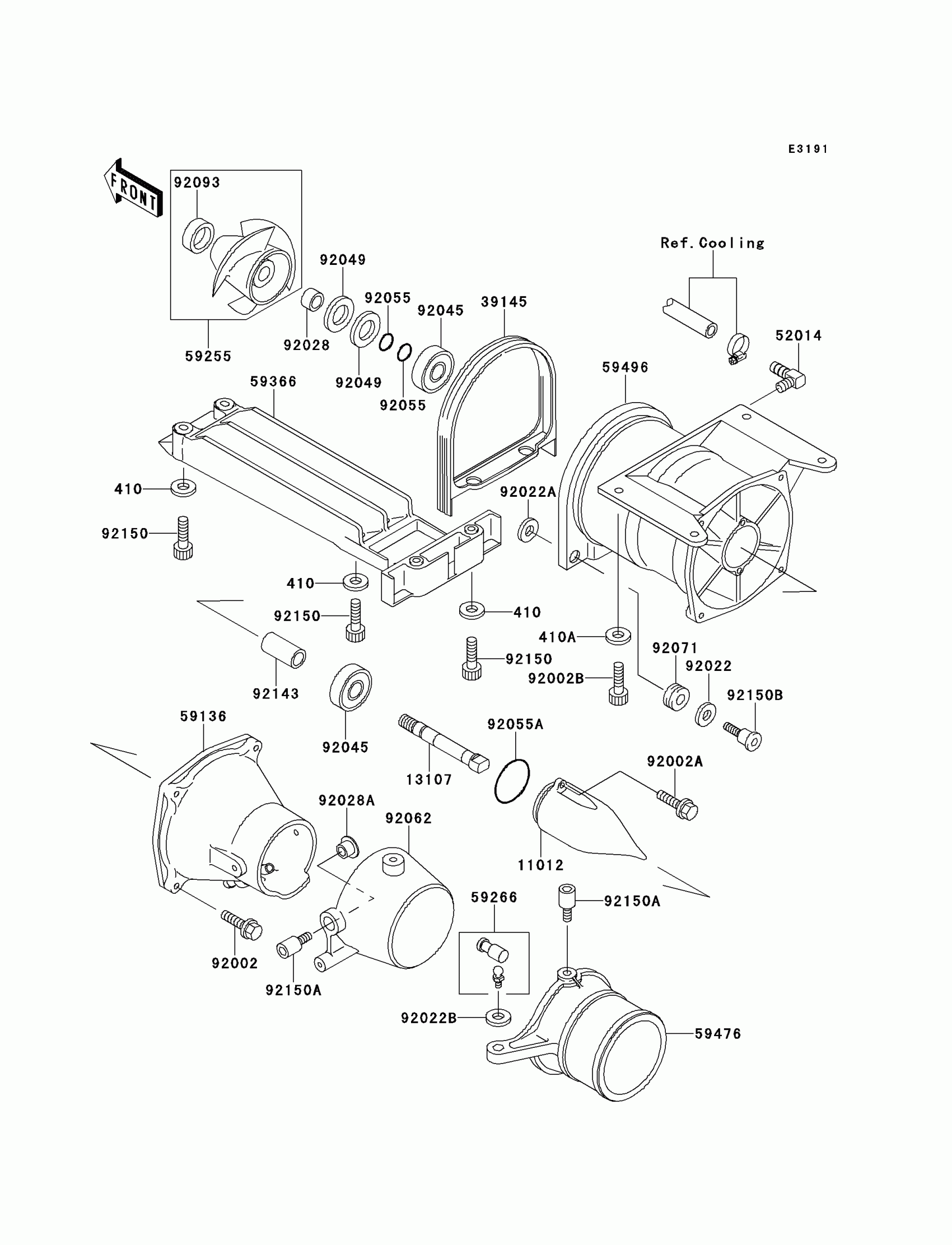

Kawasaki Super Sport XI Jet Pump Diagram

CAP,JET PUMP

SHAFT,JET PUMP

SHAFT-COMP,JOINT

TRIM-SEAL

ELBOW

NOZZLE-PUMP

IMPELLER

JOINT-BALL

GRATE

NOZZLE-STRG

VANE-GUIDE

BOLT,BALL,6MM

BOLT,6X30

BOLT,6X16

BOLT,SOCKET,8X20

WASHER

BUSHING,17X25X15

BUSHING

BEARING-BALL,#63032RD

SEAL-OIL,TBY25X47X6

RING-O,13X1.9

RING-O

NOZZLE

SEAL,JET PUMP

COLLAR,17.4X25.4X53

BOLT,SOCKET,6X18

BOLT

WASHER-PLAIN-SMALL,6MM

WASHER-PLAIN-SMALL,8MM
