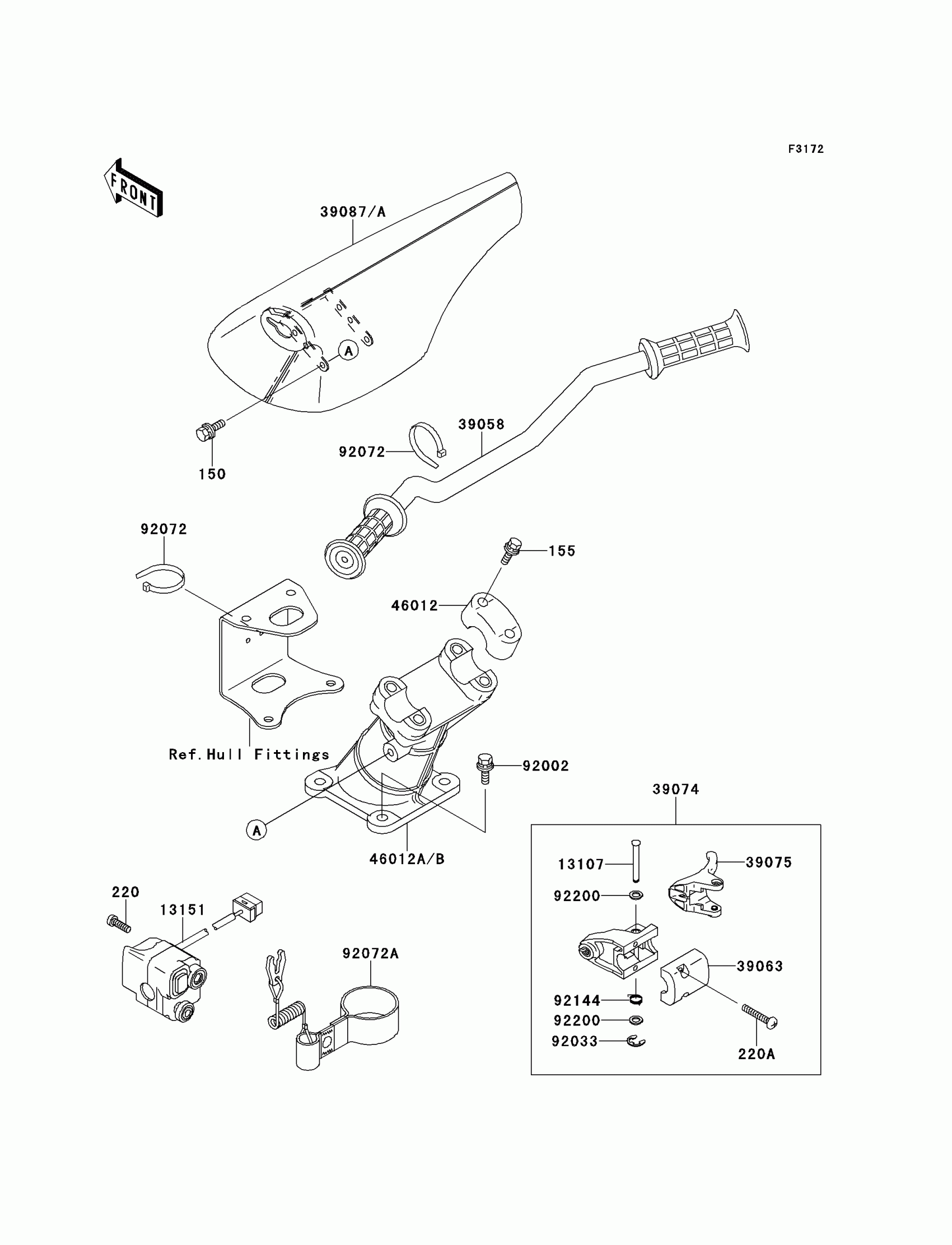

Kawasaki Super Sport XI Handlebar Diagram

Description

Price

150

BOLT-WS,6X14

150R0614

$5.96

155

BOLT-WSP-SMALL,8X35

155R0835

$8.19

220

SCREW-PAN-CROS,5X30

220R0530

$4.87

220A

SCREW-PAN-CROS

220R0630

$5.59

13107

SHAFT

13107-3740

$8.58

13151

SWITCH-COMP,STOP&START&TRIM

13151-3713

$535.57

39058

HANDLE-COMP,GRAY

39058-3714-RA

$165.88

39063

HOUSING-CONTROL

39063-3720

Unavailable

39074

LEVER-ASSY-THROTTLE

39074-3717

$111.90

39075

LEVER-THROTTLE

39075-3710

$49.50

39087

PAD-HANDLE,BLACK

39087-3717-MA

Unavailable

46012

HOLDER-HANDLE,UPP

46012-3720

$16.69

46012B

HOLDER-HANDLE,LWR

46012-3724

$163.07

92002

BOLT,8X25

92002-3774

$7.91

92033

RING-SNAP

92033-3723

$3.29

92072

BAND,L=201

92072-3778

$1.84

92072A

BAND,TETHER SWITCH

92072-3784

$59.26

92144

SPRING

92144-3749

$4.26

92200

WASHER

92200-3738

$3.32
