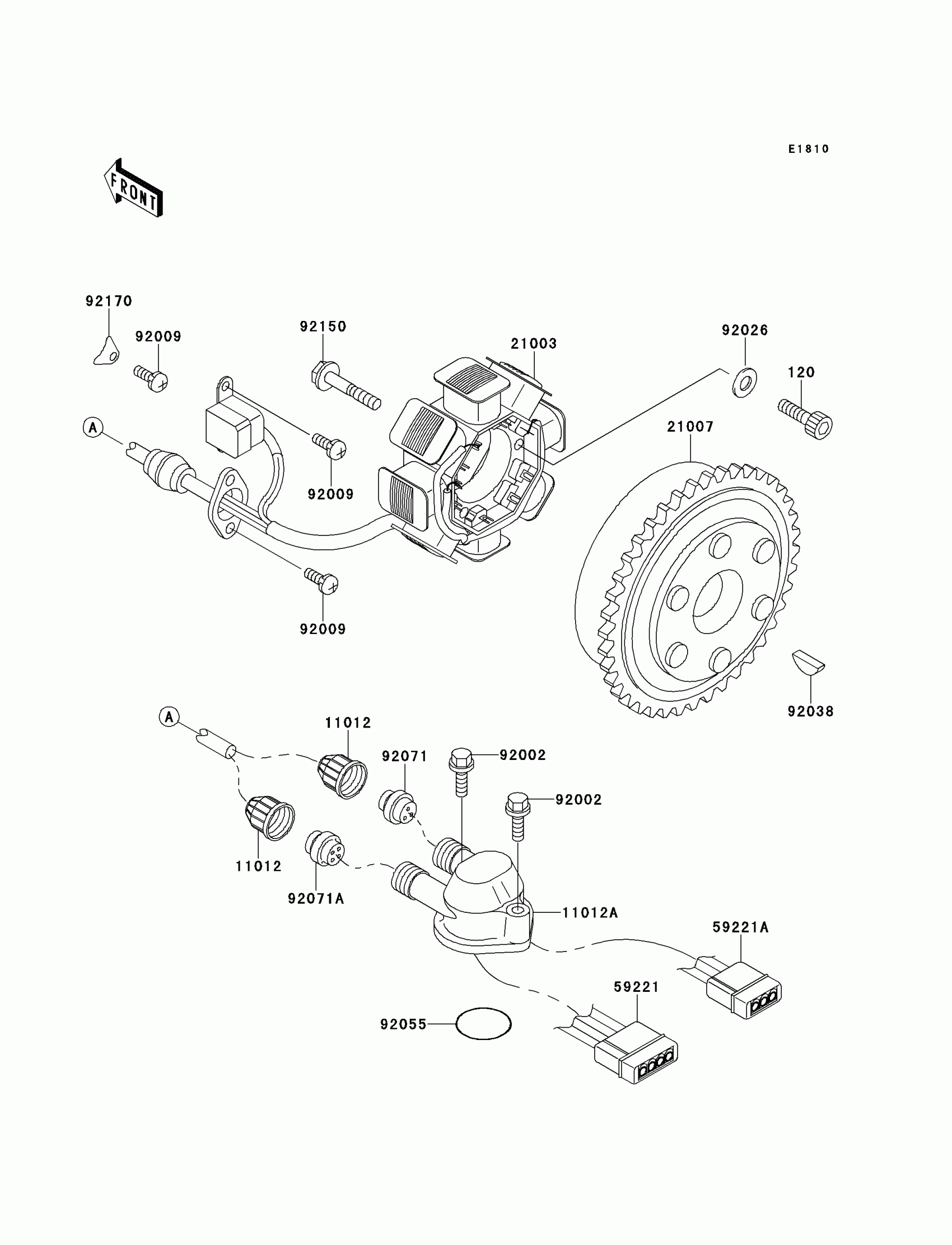

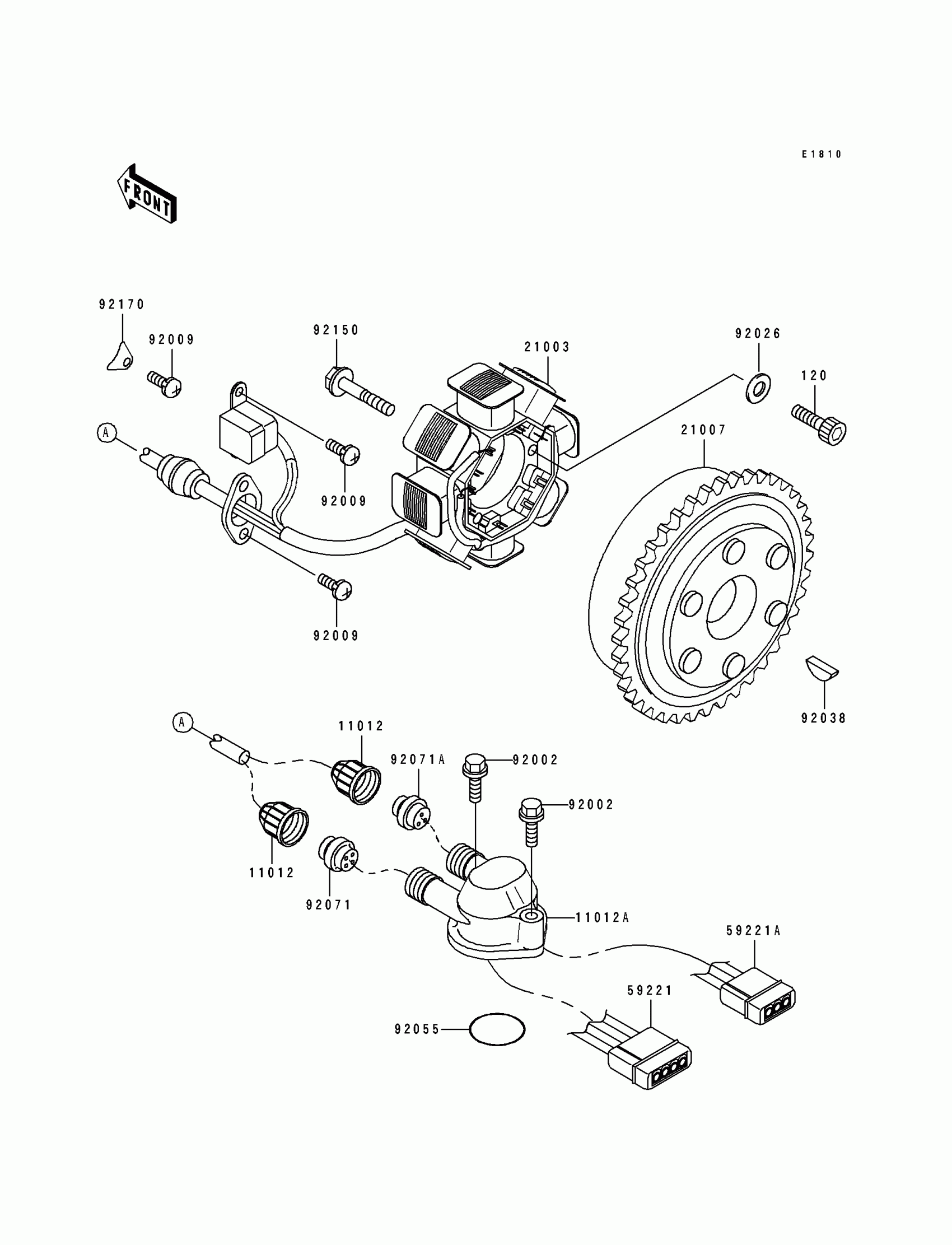

Kawasaki Super Sport XI Generator Diagram

Description

Price

120

BOLT-SOCKET,6X30

120P0630

$5.59

11012

CAP

11012-3005

$5.54

11012A

CAP,ELECTRIC CASE

11012-3761

$18.04

21003

STATOR

21003-3733

$754.74

21007

ROTOR,MAGNETO

21007-3712

Unavailable

59221

CONNECTOR-CORD

59221-3701

$11.57

59221A

CONNECTOR-CORD

59221-3703

$8.29

92002

BOLT,6X35

92002-3715

$6.61

92009

SCREW,5X12

92009-1296

$3.92

92026

SPACER,6.3X12X1.0

92026-094

$9.18

92038

KEY,WOODRUFF

92038-001

$4.96

92055

RING-O

92055-3706

$4.45

92071

GROMMET

92071-3784

$6.55

92071A

GROMMET

92071-3786

$7.84

92150

BOLT

92150-3843

$19.88

92170

CLAMP,HARNEES

92170-3728

$4.45
