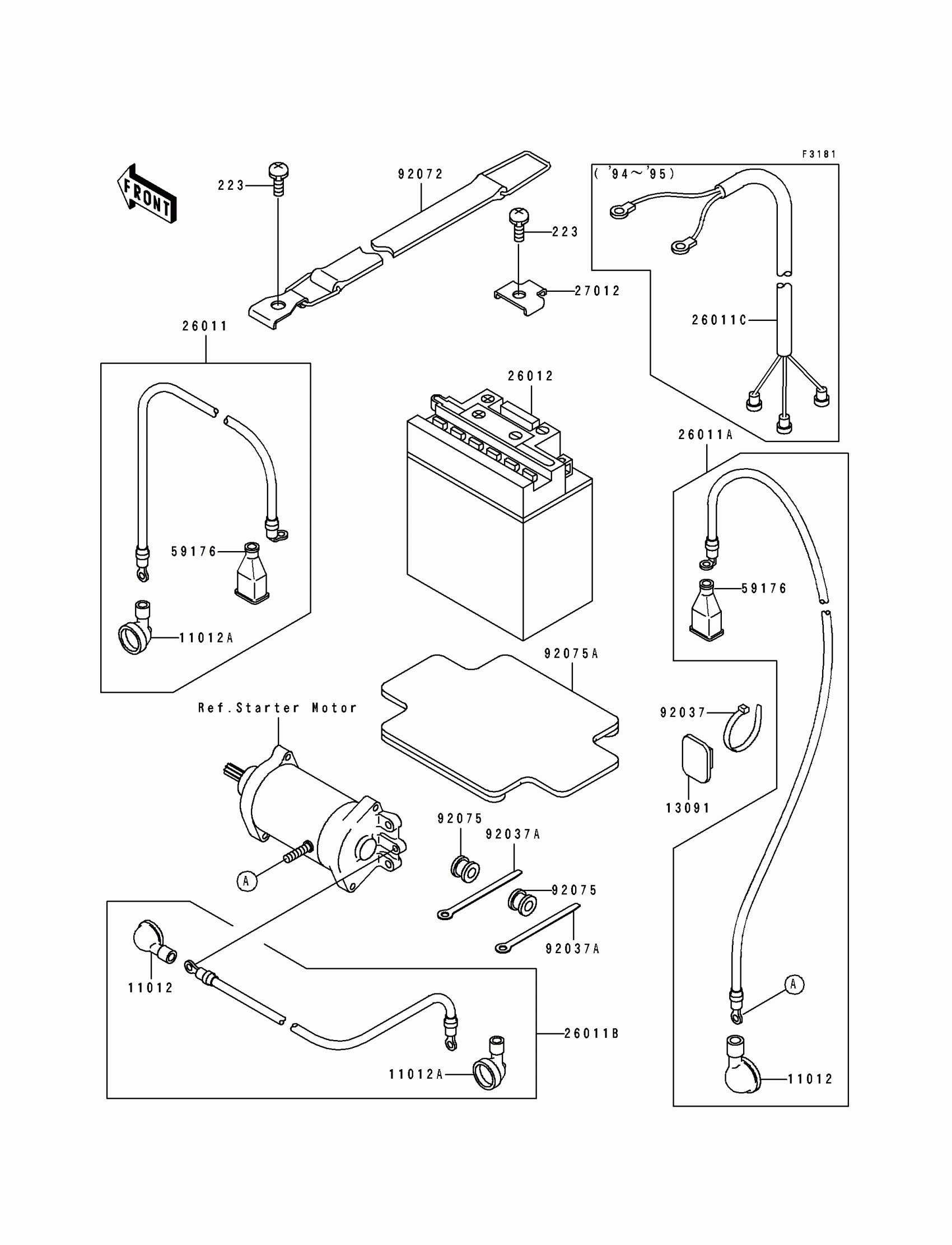

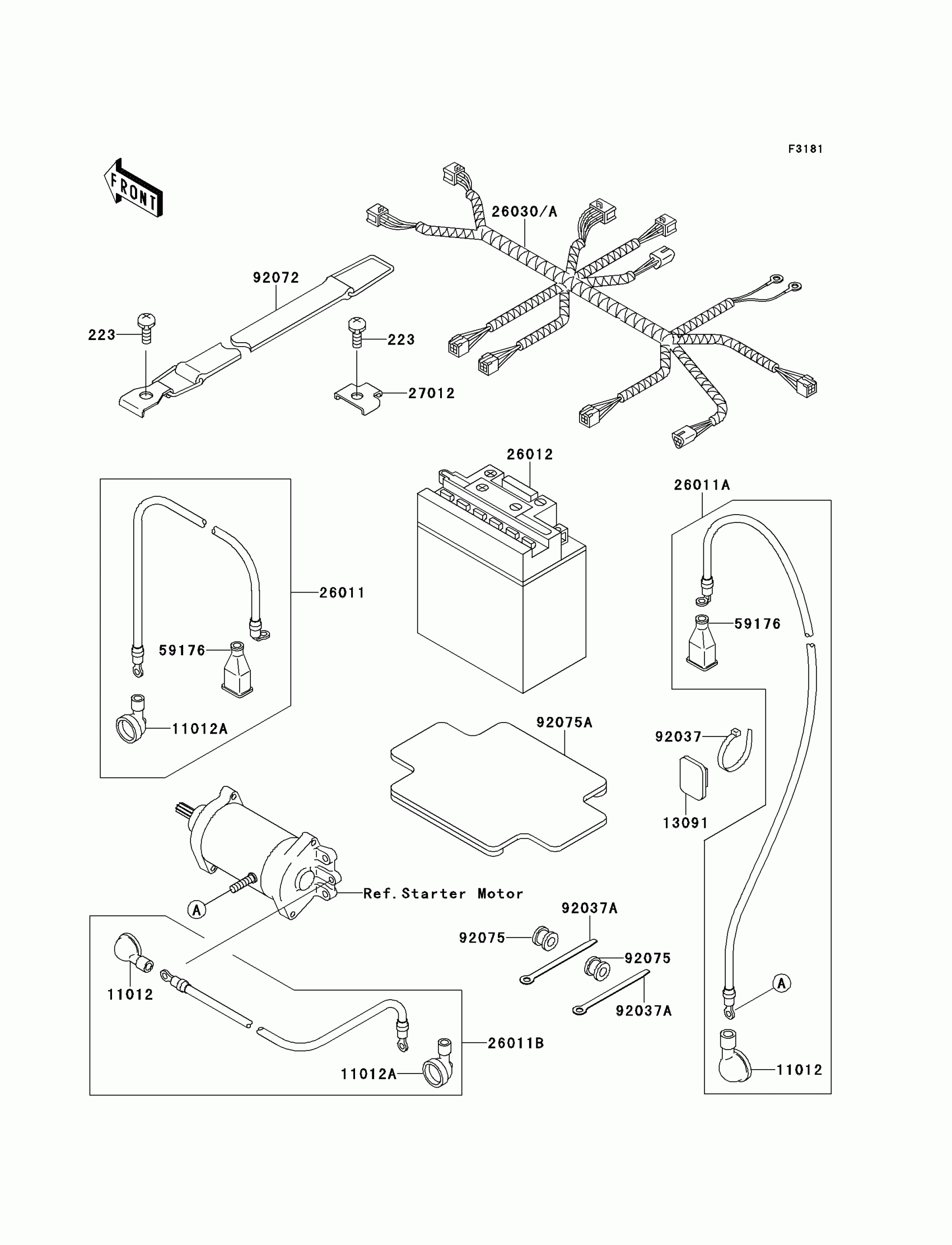

Kawasaki Super Sport XI Electrical Equipment Diagram

Description

Price

11012

CAP

11012-3004

$7.55

11012A

CAP,LEAD WIRE

11012-3726

$7.84

13091

HOLDER,BAND

13091-3764

$5.17

26011

WIRE-LEAD,RELAY-BATTERY

26011-3795

Unavailable

26011A

WIRE-LEAD,STARTER-BATTERY

26011-3796

$68.85

26011B

WIRE-LEAD,RELAY-STARTER

26011-3797

$65.55

26011C

WIRE-LEAD,MOTOR BOX

26011-3804

$41.82

26012

BATTERY,YB16CL-B,12V 19AH

26012-3720

$124.91

27012

HOOK

27012-3751

$6.01

59176

CAP.,TERMINAL

59176-501

$8.94

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP,L=100

92037-3736

$5.52

92072

BAND,BATTERY

92072-3748

$31.80

92075

DAMPER

92075-1650

Unavailable

92075A

DAMPER,BATTERY

92075-3714

$16.74

223

SCREW-PAN-WS-CROS,6X14

223R0614

$3.34
