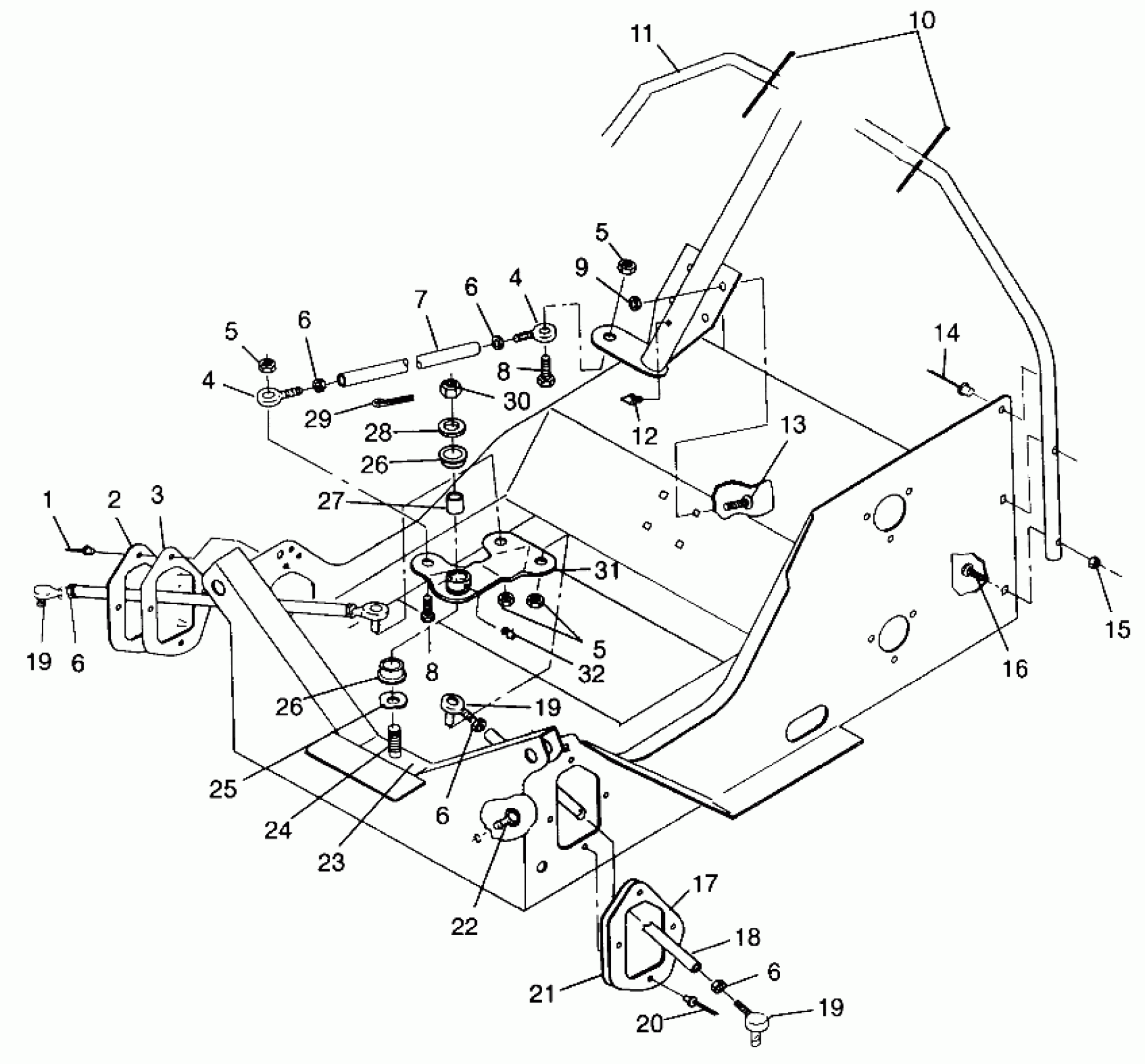

Polaris SUPER SPORT - 099SB5BS STEERING - 099SB5BS (4948354835b004) Diagram

#

Description
Price

1

RIVET(50)

7621340

$0.56

2

PLATE,RH,BOOTSEAL,BLK.

5211453-067

$15.67

3

BOOT,TIEROD,RH,XTRA

5411123

$20.22

4

ROD END, RH.

7060165

$48.56

4

ROD END, LH.

7060164

$48.56

4

ROD END, RH.

7060165

$48.56

4

ROD END, LH.

7060164

$48.56

5

NUT LOCK(10)

7542403

$3.99

5

NUT LOCK(10)

7542403

$3.99

5

NUT LOCK(10)

7542403

$3.99

6

NUT HEX(10)

7542401

$2.39

6

NUT

7542424

$1.49

6

NUT HEX(10)

7542401

$2.39

6

NUT

7542424

$1.49

6

NUT HEX(10)

7542401

$2.39

6

NUT

7542424

$1.49

6

NUT HEX(10)

7542401

$2.39

6

NUT

7542424

$1.49

6

NUT HEX(10)

7542401

$2.39

6

NUT

7542424

$1.49

7

ROD-DRAG LINK

5332712

Unavailable

8

BOLT(10)

7512404

$3.99

8

BOLT(10)

7512404

$3.99

9

NUT FLEX-LOC(10)

7542303

$6.39

10

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

11

STEERING HOOP,BLK Substituted by 1013153-067

1012795-067

$41.59

12

FITTING,LUB/VEN(10)

7080561

$4.79

13

BOLT,(10)

7517428

$2.39

14

RIVET,INTERLOCK,B(50)

7661638

$1.49

15

NUT, LOCK(10)

7542103

$5.59

16

BOLT-CARRIAGE(10)

7512275

$3.99

17

PLATE,BOOTSEAT,BLK.

5211454-067

Unavailable

18

ROD,TIE,BLK.

5020859-067

Unavailable

19

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

19

ROD END,LH,3/8 HI-ANGLE PRO

7061005

Unavailable

19

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

19

ROD END,LH,3/8 HI-ANGLE PRO

7061005

Unavailable

19

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

19

ROD END,LH,3/8 HI-ANGLE PRO

7061005

Unavailable

20

POP RIVET(50)

7621323

$1.49

21

BOOT,TIEROD,LH,XTRA

5411122

Unavailable

22

CLIP, PLASTIC(10)

4020139

$4.79

23

BLOCK,STRG,(CAST)

5630563

$32.37

24

BOLT(10)

7512682

Unavailable

25

WASHER,WAVE(10)

7555735

$3.99

26

BUSHING

3563907

$3.99

26

BUSHING

3563907

$3.99

27

O RING

5410463

$6.99

28

WASHER(10)

7555721

$1.49

29

PIN COTTER(10)

7661203

$1.49

30

NUT FLEX,(10)

7542703

Unavailable

31

STRG.ASM,CTR. (Incl. 9,12)

1822286

$29.60

32

ZERK,FITTING,THREADED(10)

7080433

$1.49
