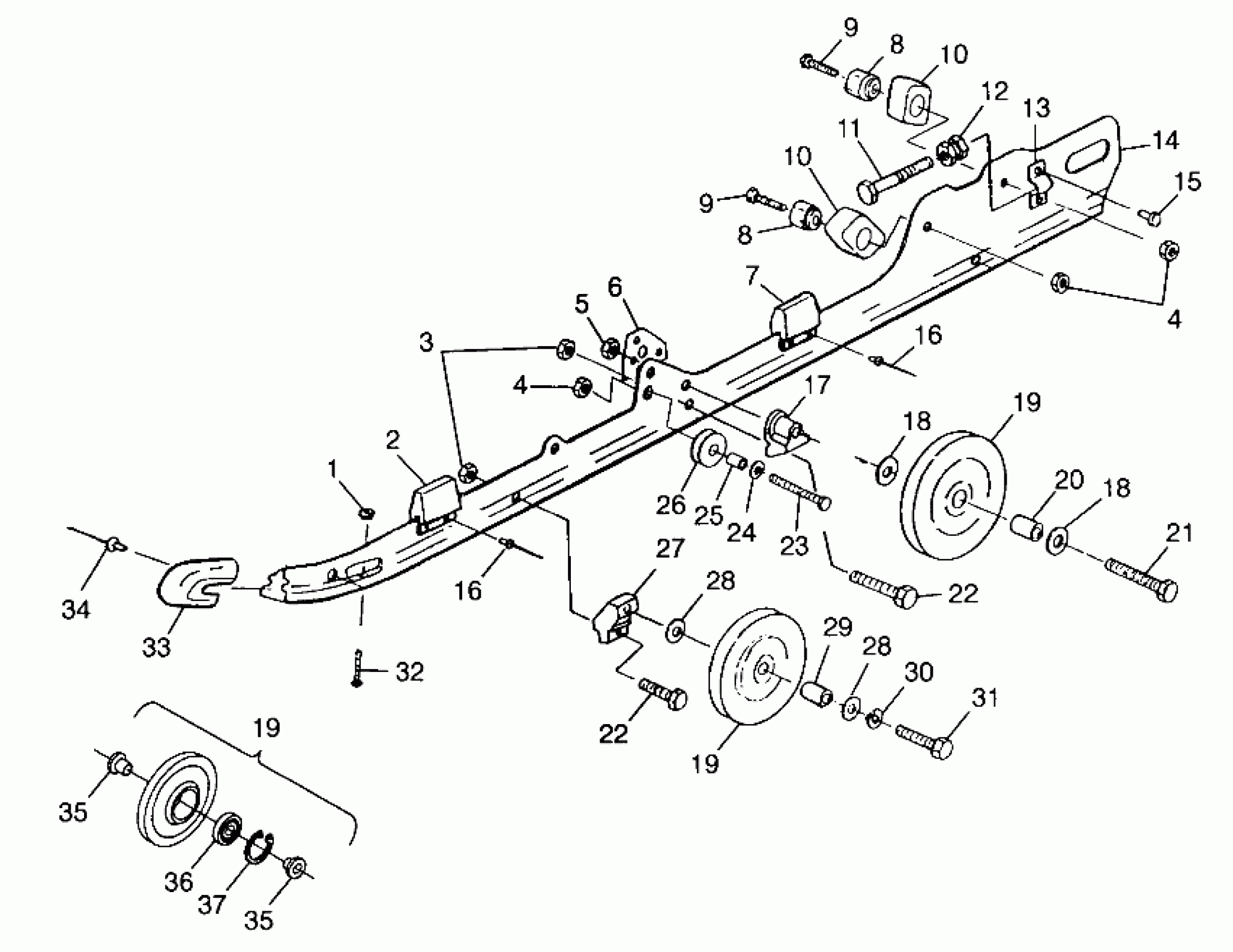

Polaris SUPER SPORT - 099SB5BS RAIL MOUNTING (SUSPENSION) - 099SB5BS (4948354835b008) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542122

$1.49

2

REINF., BUMPER

5222629

$13.75

2

BUMPER, RAIL

5810554

$7.27

3

NUT-LOCK(10)

7542439

$1.49

4

NUT LOCK(10)

7542411

$3.19

4

NUT LOCK(10)

7542411

$3.19

5

NUT, NYLOCK(10)

7542525

$4.79

6

BRKT,RAIL,REINF

5211790

Unavailable

7

REINF., BUMPER

5222629

$13.75

7

BUMPER,SUSPENSION

5811097

Unavailable

8

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

8

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

9

BOLT,(10)

7515545

$5.59

9

BOLT,(10)

7515545

$5.59

10

BUMPER,F.PIVOT ARM

5410925

$12.94

10

BUMPER,F.PIVOT ARM

5410925

$12.94

11

BOLT, ADJUSTER(10)

7515455

$29.99

12

NUT,TENSIONER ADJ.

5020943

$20.22

13

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

14

RAIL,LH,121,XTRA 10 (Incl. 2,7,13,33)

1541146

$288.99

14

RAIL,RH,121,XTRA 10 (Incl. 2,7,13,33)

1541147

Unavailable

15

RIVET,(50)

7621501

$2.39

16

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

16

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

17

SPACER

5630399

$11.99

18

WASHER, FLAT(10)

7555852

$2.39

18

WASHER, FLAT(10)

7555852

$2.39

19

WHEEL, IDLER (Incl. 35-37)

1543018

$56.65

19

WHEEL, IDLER (Incl. 35-37)

1543018

$56.65

19

WHEEL, IDLER (Incl. 35-37)

1543018

$56.65

20

SPACER, WHEEL

5333116

$7.99

21

BOLT(10)

7512538

$6.39

22

BOLT(10)

7512404

$3.99

22

BOLT(10)

7512404

$3.99

23

BOLT Substituted by 7515491

7515433

$1.59

24

WASHER(10)

7555743

Unavailable

25

Spacer

5332787

Unavailable

26

ROLLER,SPRING

5432170

Unavailable

27

BRACKET,BOGIE WHEEL

5130570

$48.56

28

WASHER(10)

7555804

$3.99

28

WASHER(10)

7555804

$3.99

29

SPACER

5332786

$7.99

30

LOCK WASHER(10)

7553201

$3.99

31

BOLT(10)

7512659

$7.99

32

BOLT(10)

7515175

$3.99

33

COVER, RAIL TIP Substituted by 5433005

5431421

Unavailable

34

RIVET(50)

7621435

$1.49

35

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

35

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

36

BEARING (1 per Wheel)

3514303

$11.99

37

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79
