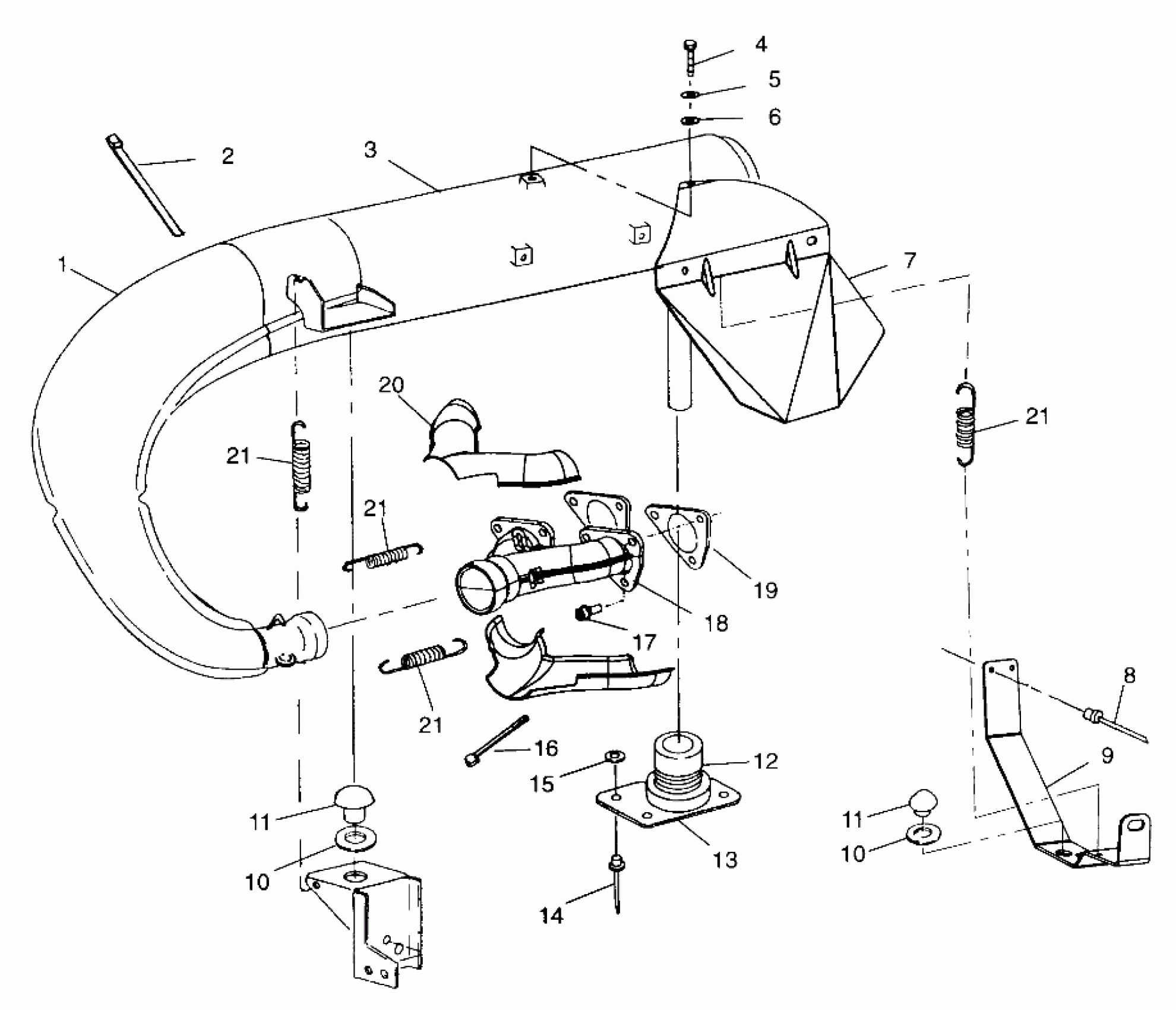

Polaris SUPER SPORT - 099SB5BS EXHAUST SYSTEM - 099SB5BS (4948354835b013) Diagram

#

Description
Price

1

COVER-MEGAPHONE,TOP

5243197

Unavailable

1

COVER-MEGAPHONE,BOTTOM

5243198

Unavailable

1

MATTE-SOUND

5830162

Unavailable

2

CLAMP,WORM,(10) (.44 x 3.69)

7080740

$13.19

2

CLAMP-WORM DRIVE,.44WX2.75 DIA (.44 x 2.75)

7080809

$9.59

2

CLAMP-WORM DRIVE,.44WX5.5 DIA (.44 x 5.5)

7080808

Unavailable

3

PIPE,TUNED (Incl. 1,2)

1260927

Unavailable

3

PIPE,TUNED,BLK Substituted by 1260927

1260876-029

Unavailable

4

BOLT(10)

7515354

$3.99

5

LOCK WASHER(10)

7552901

$1.49

6

WASHER(10)

7555734

$1.49

7

SHIELD-MUFFLER

5243214

Unavailable

8

RIVET(50)

7621452

$1.49

9

BRKT,TUNED PIPE/CHASSIS,BLK.

5242735-067

$13.19

10

WASHER, THRUST(10)

7555788

Unavailable

10

WASHER, THRUST(10)

7555788

Unavailable

11

DAMPNER, VIB.

5410467

$8.79

11

DAMPNER, VIB.

5410467

$8.79

12

Boot, Exhaust

5410502

$24.27

13

HAT,EXH,SNOW DEFLECTOR

5432465

$9.70

14

RIVET, BLIND(50)

7621467

$1.49

15

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

16

CLAMP, HOSE(10) Substituted by 7080870

7080481

Unavailable

17

SCREW,HXSOC

7517555

$8.79

18

MANIFOLD,BLK

1260875-029

Unavailable

19

Gasket, Exhaust (See Cylinder Pg. C4, Ref. 4)

-------

Unavailable

20

COVER-MANIFOLD

5243196

$84.99

20

MATTE-SOUND

5830161

$8.89

21

SPRING-EXHAUST

7041687

$5.65

21

SPRING-EXHAUST

7041687

$5.65

21

SPRING-EXHAUST

7041687

$5.65

21

SPRING-EXHAUST

7041687

$5.65
