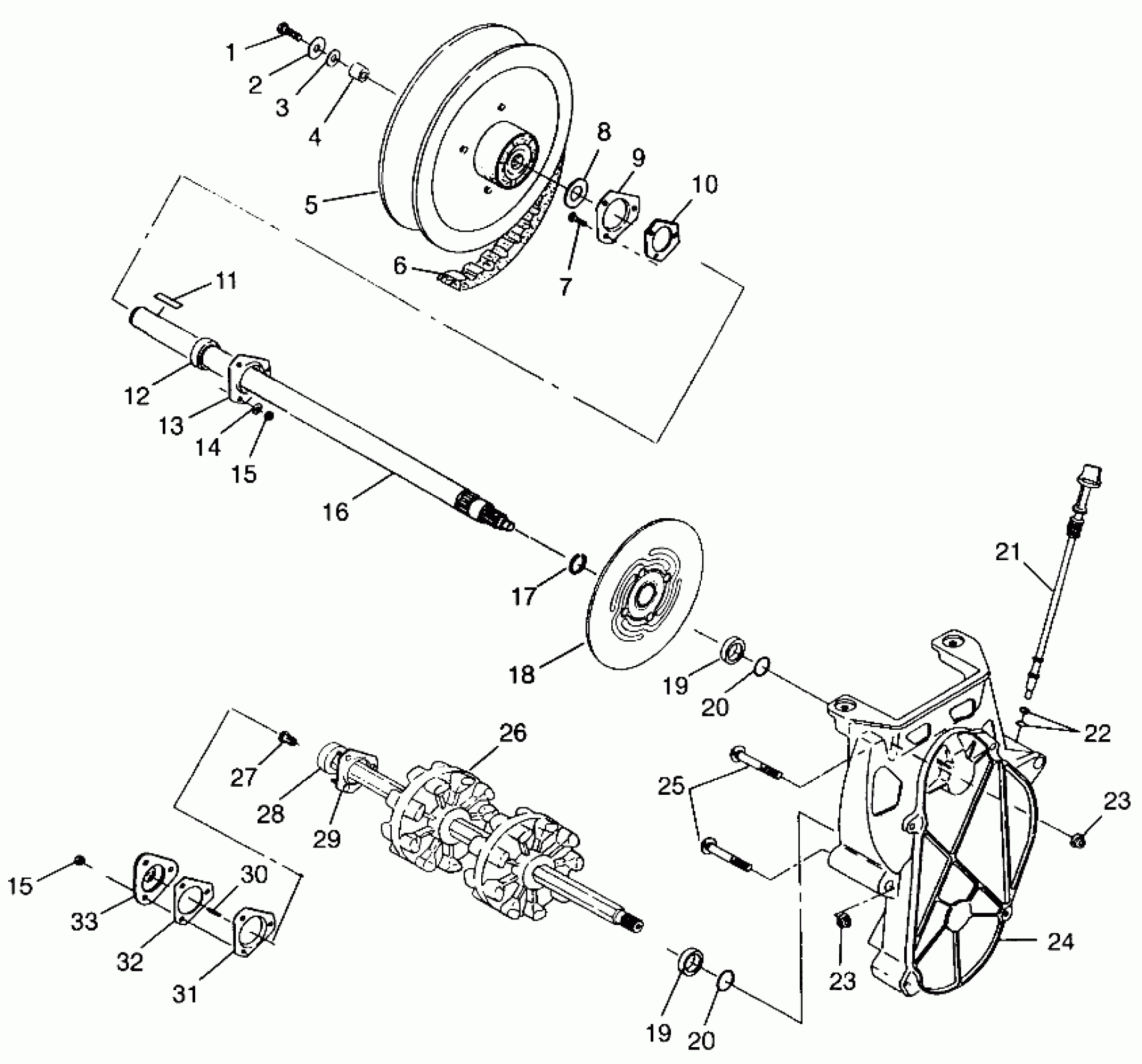

Polaris SUPER SPORT - 099SB5BS DRIVE TRAIN - 099SB5BS (4948354835b006) Diagram

#

Description
Price

1

BOLT(10)

7515301

Unavailable

2

WASHER FLAT(10)

7555701

$3.99

3

WASHER(10)

7555734

Unavailable

4

SPACER

5020291

Unavailable

5

Driven Clutch (See Footnote) (See Driven Clutch Pg. B12 For Details)

-------

Unavailable

6

BELT,DRIVE,28 DEG.(5)

3211070

$114.99

7

BOLT(10)

7512377

$4.79

8

WASHER SPECIAL(10)

7556509

Unavailable

9

FLANGE RD,RELUBE W/ZERK

5241359

$32.37

10

GASKET,JACKSHAFT,BLK.

5811095

$2.41

11

KEY(10)

7721116

$12.94

12

BEARING

3514525

$31.99

13

FLANGETTE

5222751

$16.44

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

DESC NOT_AVAILABLE (Incl. 12,17)

1332207-067

Unavailable

17

RING, RETAINING(10)

7710422

$3.99

18

DISC ASM,BRAKE,SLOTTED,SNO Substituted by 1910403

1910276

Unavailable

19

SLEEVE, SEAL

5020588

$23.99

19

SLEEVE, SEAL

5020588

$23.99

20

O RING,(10)

5410613

$1.99

20

O RING,(10)

5410613

$1.99

21

DIPSTICK Substituted by 1332143

5431419

Unavailable

22

O-RING

5410675

$1.60

23

NUT(10)

7542423

$3.99

23

NUT(10)

7542423

$3.99

24

Cover, Chaincase (See Footnote) (See Chaincase Pg. B5, Ref. 12)

-------

Unavailable

25

BOLT(10)

7515428

$4.79

26

DRIVESHAFT ASM,2 DR.W/BEARING Substituted by 1590283 (Incl. 27,28,29)

1590271

Unavailable

27

BUSHING METAL SPEEDO

3280019

$11.99

28

BEARING,LUBE. Substituted by 3514525

3514526

$31.75

29

FLANGETTE ASM,,W/ SCREWS Substituted by 1012945

1012434

Unavailable

30

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

31

FLANGETTE Substituted by 5243529

5241178

$13.75

32

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

33

ADAPTER,DRIVE,W/ZERK

3280116

$101.17
