REAR TORQUE ARM SUPER SPORT 0960743 (4932183218B011)

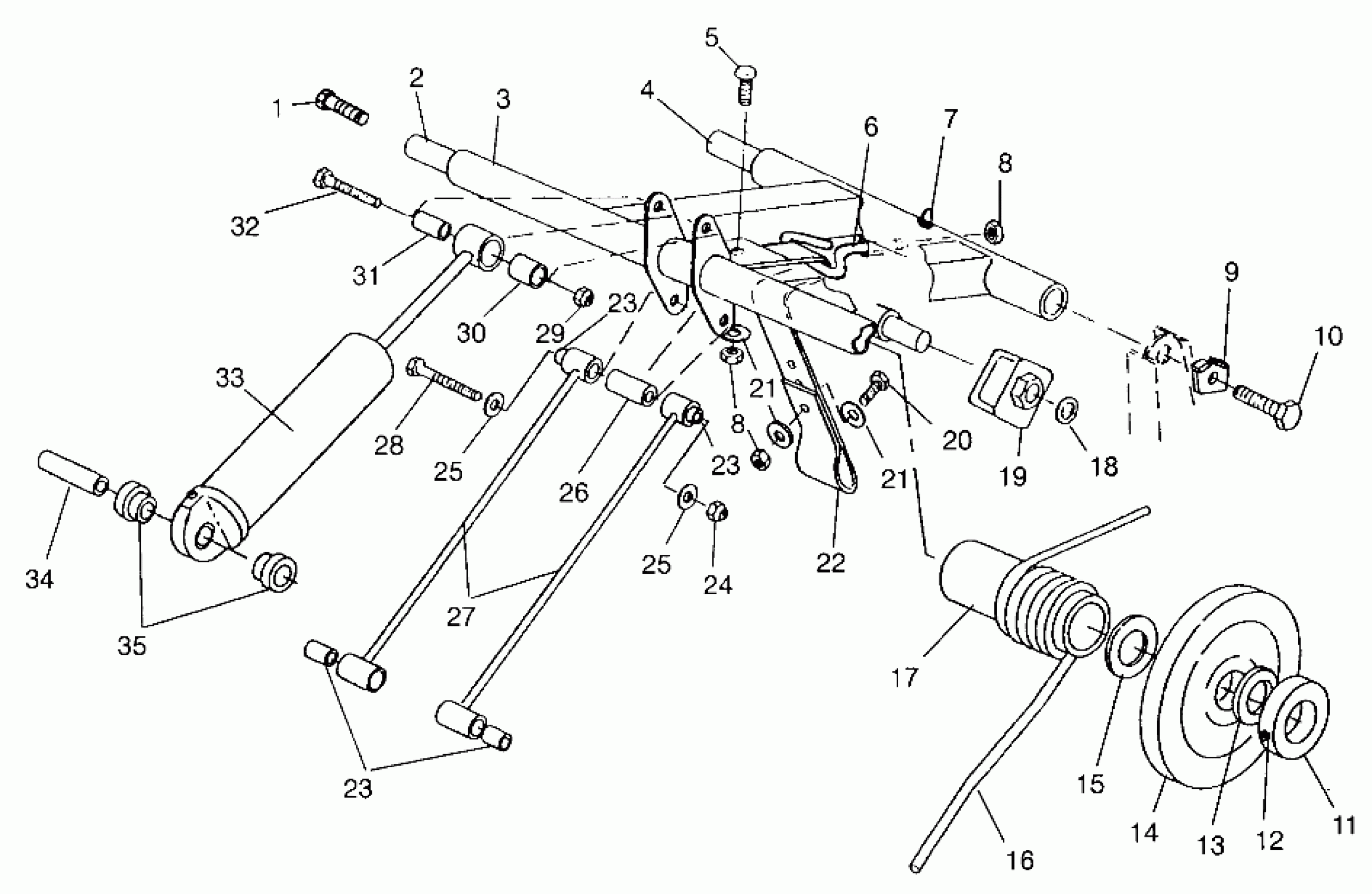

Polaris SUPER SPORT - 0960743 REAR TORQUE ARM SUPER SPORT 0960743 (4932183218B011) Diagram
#
1
BOLT,NYLOC,BLACK(10) Substituted by 7515432
7515493
Unavailable
2
SHAFT,R.TORQUE,UPPER
5020845
$63.99
3
ARM,R.TORQUE,BLK Substituted by 2200914 (X-10, Blk)
1541024-067
$68.19
4
SHAFT,LOW,RR,TORQUE
5020843
Unavailable
5
BOLT(10)
7512377
$4.79
6
BOLT,EYE
7010050
Unavailable
7
ZERK,FITTING,THREADED(10)
7080433
$1.49
8
NUT LOCK(10)
7542321
$1.49
8
NUT LOCK(10)
7542321
$1.49
9
LOCK,BOLT,MECHANICAL
5211649
Unavailable
10
BOLT(10)
7515526
$1.19
11
COLLAR-BRG. LOCK
5010155
Unavailable
12
SCREW-SET(10)
7512257
$3.99
13
WASHER, THRUST(10) Substituted by 7555871
7555862
$5.56
14
Wheel, Carrier
1543023
Unavailable
15
WASHER, THRUST(10) Substituted by 7555871
7555787
Unavailable
16
SPRING,LH,TORS(.421DIA) (Firm)
7041461-067
Unavailable
16
SPRING,RH,TORS(.406DIA) (.406) Std.
7041464-067
Unavailable
16
SPRING,RH,TORS(.421DIA) (Firm)
7041462-067
$113.32
16
SPRING,LH,TORS(.406DIA) (.406) Std.
7041463-067
Unavailable
17
SLEEVE,TORSION SPRING
5431923
$6.39
18
CLIP-PUSH ON
7080394
$2.39
19
ROLLER, SPRING ADJ.
5431168
Unavailable
20
BOLT(10)
7515307
$3.99
21
WASHER(10)
7555716
$1.59
21
WASHER(10)
7555716
$1.59
22
STRAP,LIMITER (RR, QA)
5411061
Unavailable
23
BUSHING,PIVOT TUBE
5020561
$1.59
23
BUSHING,PIVOT TUBE
5020561
$1.59
23
BUSHING,PIVOT TUBE
5020561
$1.59
24
NUT LOCK(10)
7542411
$3.19
25
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
25
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
26
Spacer
5333420
$11.99
27
ROD,SHOCK
1541015-067
Unavailable
28
BOLT(10)
7515472
$2.39
29
NUT FLEX-LOC(10)
7542303
$6.39
30
BUSHING
5430537
$3.99
31
BUSHING,R.SHOCK
5333030
Unavailable
32
BOLT(10)
7512329
$3.99
33
SHOCK,GAS,ADJ,R.TRACK
7041441
Unavailable
34
BUSHING, 1.40
5020657
$15.99
35
BUSHING,SHOCK,.340
5431542
Unavailable
