PISTON and CRANKSHAFT SUPER SPORT 0960743 (4932183218C006)

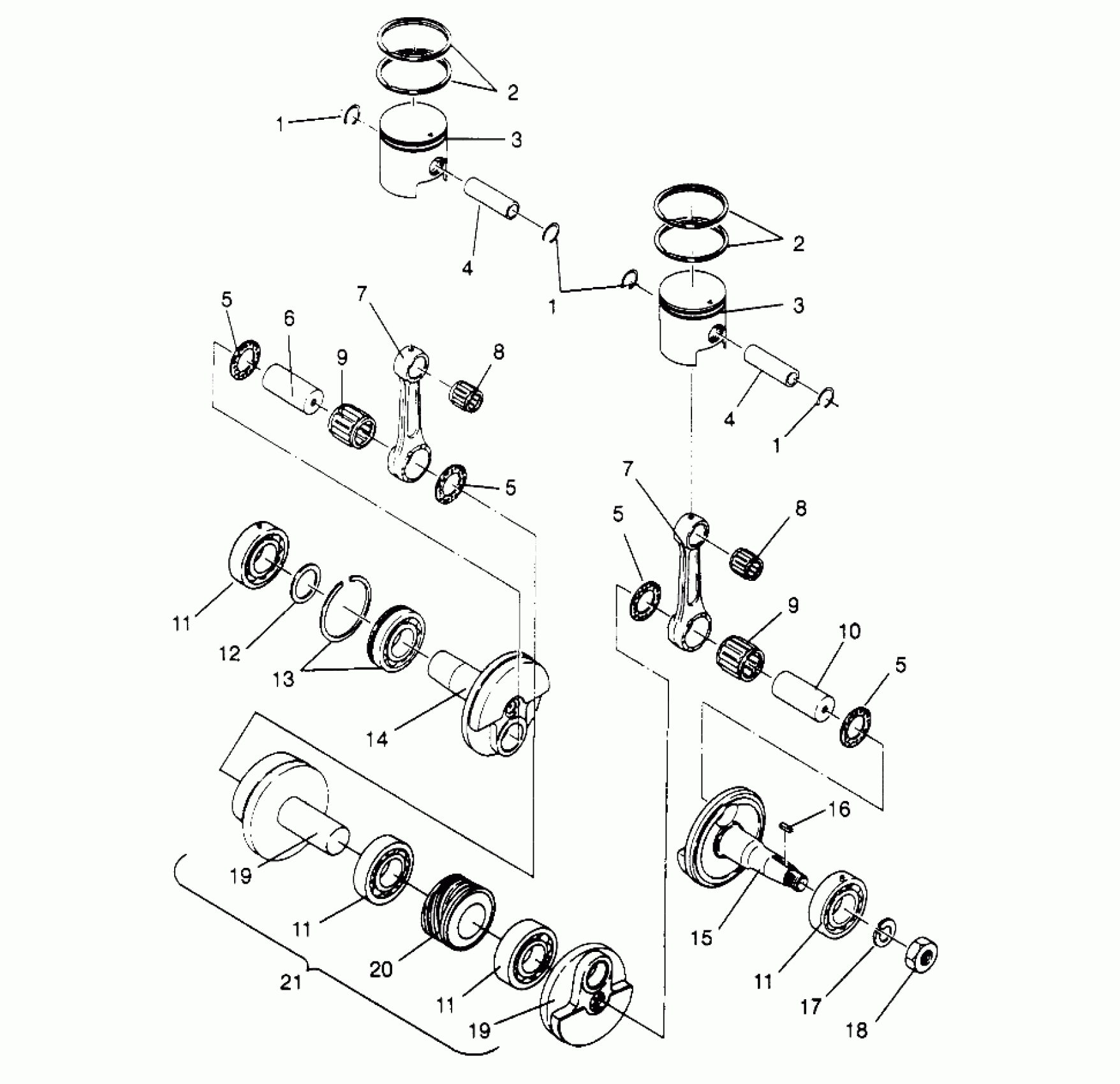

Polaris SUPER SPORT - 0960743 PISTON and CRANKSHAFT SUPER SPORT 0960743 (4932183218C006) Diagram
#
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
2
RING, PISTON (Standard)
3082822
Unavailable
2
RING,PISTON,.010 O/S (0.25mm/.010" O/S)
3084242
Unavailable
2
RING,PISTON,(.020) (0.50mm/.020" O/S)
3084243
Unavailable
2
RING, PISTON (Standard)
3082822
Unavailable
2
RING,PISTON,.010 O/S (0.25mm/.010" O/S)
3084242
Unavailable
2
RING,PISTON,(.020) (0.50mm/.020" O/S)
3084243
Unavailable
3
PISTON,(.010 O/S) Substituted by 3085838 (0.25m/.010" O/S)
3084240
Unavailable
3
PISTON,(.020 O/S) Substituted by 3085839 (0.50m/.020" O/S)
3084241
Unavailable
3
PISTON, STD. Substituted by 3085837 (Standard)
3084239
$138.08
3
PISTON,(.010 O/S) Substituted by 3085838 (0.25m/.010" O/S)
3084240
Unavailable
3
PISTON,(.020 O/S) Substituted by 3085839 (0.50m/.020" O/S)
3084241
Unavailable
3
PISTON, STD. Substituted by 3085837 (Standard)
3084239
$138.08
4
PIN, PISTON
3083858
$23.99
4
PIN, PISTON
3083858
$23.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
6
Pin, Crank, 2
3083456
Unavailable
7
ROD-CONNECTING
3083252
$164.99
7
ROD-CONNECTING
3083252
$164.99
8
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
8
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
9
BEARING,LGE.END Substituted by 3085720
3083276
Unavailable
9
BEARING,LGE.END Substituted by 3085720
3083276
Unavailable
10
PIN,CRANK
3083233
$36.41
11
BEARING, BALL
3084586
$44.99
11
BEARING, BALL
3084586
$44.99
11
BEARING, BALL
3084586
$44.99
11
BEARING, BALL
3084586
$44.99
12
SPACER,CRANKSHAFT
3080447
$1.99
13
BEARING, BALL
3084587
Unavailable
14
CRANKSHAFT #3 (PTO End)
3083278
Unavailable
15
CRANKSHAFT #1 (Mag End)
3083280
$255.99
16
KEY
3081447
Unavailable
17
WASHER-SPRING(10)
3083094
$3.17
18
NUT
3083093
$19.99
19
CRANKSHAFT #2 (Center) (Incl. 6, 10)
3083890
Unavailable
19
CRANKSHAFT #2 (Center) (Incl. 6, 10)
3083890
Unavailable
20
DRIVEGEAR,OILPUMP
3083780
$107.99
21
CRANKSHAFT ASM. (Incl. 5-7, 9-15, 19, 20)
3084585
Unavailable
