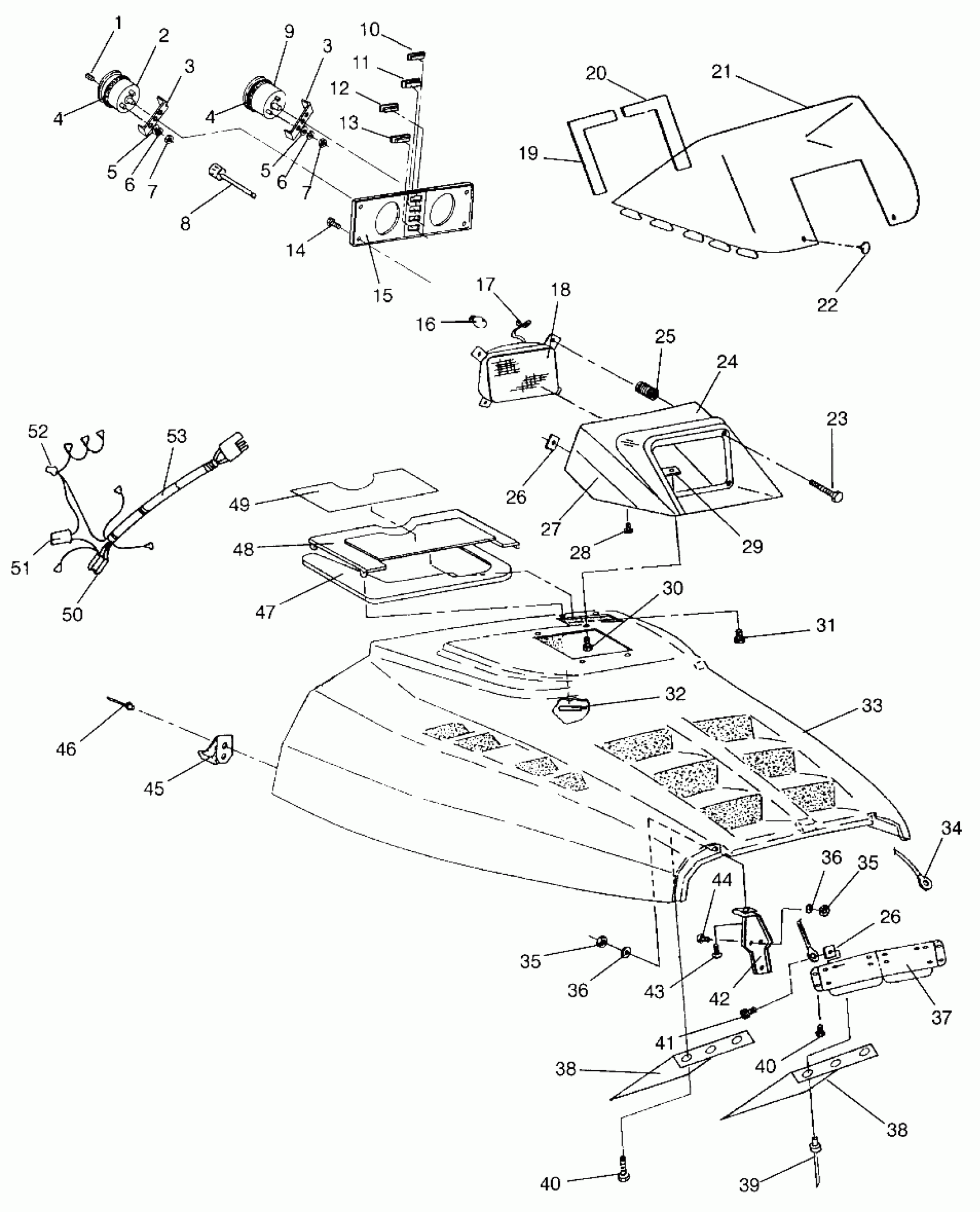

Polaris SUPER SPORT - 0960743 HOOD SUPER SPORT 0960743 (4932183218A009) Diagram

#

Description
Price

1

KNOB,TRIP ODOMETER,LH THD.

3280186

$9.70

2

BULB TAILLIGHT(10)

4030015

$4.03

2

TACHOMETER,BACKLIT(2P) (Incl. 3, 7)

3280149

Unavailable

3

BRKT,SPEEDO/TACH

3280153

Unavailable

3

BRKT,SPEEDO/TACH

3280153

Unavailable

4

CUSHION,TACH/SPEEDO,RUBBER

3280151

Unavailable

4

CUSHION,TACH/SPEEDO,RUBBER

3280151

Unavailable

5

WASHER,FLAT,(10)

3280157

$2.39

5

WASHER,FLAT,(10)

3280157

$2.39

6

WASHER,SPLIT LOCK

3280156

$1.49

6

WASHER,SPLIT LOCK

3280156

$1.49

7

Nut

3280158

Unavailable

7

Nut

3280158

Unavailable

8

CABLE,SPEEDO.

3280094

$60.70

9

SPEEDOMETER,BACKLIT (Incl. 3, 7)

3280148

Unavailable

10

INDICATOR'OIL/BRK'WARN.

4040034

$12.17

11

INDICATOR,'ACC'WARN.

4040014

Unavailable

12

INDICATOR'HI-BEAM'WARN.

4040013

Unavailable

13

PLUG,INDIC.HOLE

5430967

$5.65

14

SCREW,SCKT.HD.CAP(10)

7512008

Unavailable

15

BEZEL, INST.

5430924

Unavailable

16

BULB, H/L

4030028

$29.99

17

RETAINER,H/L BULB

4032063

Unavailable

18

HEADLIGHT ASM. (Incl. 16)

4032038

Unavailable

19

PAD, W/S

5810415

Unavailable

20

PAD, W/S, LH

5810414

Unavailable

21

WINDSHIELD,LOW,WHITE

5431712

Unavailable

22

RIVET,(PLASTIC LOK)(50) Substituted by 7621509

7621505

$1.19

23

SCREW, ADJ.(10)

4032003

Unavailable

24

HSG,INST.TOP,WHITE

5430923-133

Unavailable

25

SPRING-ADJ

4032002

Unavailable

26

NUT, SPEED(10)

7670056

Unavailable

26

NUT, SPEED(10)

7670056

Unavailable

27

HSG,INST.BOTT,WHITE

5430922-133

Unavailable

28

SCREW(10)

7512009

Unavailable

29

NUT, SPEED(10)

7670057

$1.49

30

SCREW, SEMS(10)

7512283

$3.99

31

SCREW(10)

7511840

Unavailable

32

RETAINER,WINDSHIELD,(10)

5410970

$1.49

33

HOOD,INDY F/C,WHI. (Incl. Foam, Foil & Warning Decals)

2631735-133

Unavailable

34

CABLE,HD.RETAINER

7080360

$24.27

35

NUT-LOCK(10)

7542122

$1.49

35

NUT-LOCK(10)

7542122

$1.49

36

WASHER,WROUGHT(10)

7558302

$1.59

36

WASHER,WROUGHT(10)

7558302

$1.59

37

PLATE,RE-INF.,(HD.)

5222105

$49.51

38

DEFLECTOR, AIR Substituted by 5243393

5222691

Unavailable

38

DEFLECTOR, AIR Substituted by 5243393

5222691

Unavailable

39

POP RIVET(50)

7621425

$1.49

40

SCREW(10)

7511861

Unavailable

40

SCREW(10)

7511861

Unavailable

41

SCREW(10)

7511989

Unavailable

42

HINGE ASM,HD,WHITE (White)

2635005-133

$15.70

43

BOLT-CARRIAGE(10)

7512263

$3.99

44

BOLT(10)

7512193

$2.39

45

CUP, HOOD LATCH,(10)

5430733

$4.84

46

RIVET(50)

7621334

$1.49

47

SEAL, INTAKE

5810597

Unavailable

48

PANEL ASM,INTAKE,WHITE (Incl. 49)

2620091-133

Unavailable

49

DECAL,DASH WARN,PARKBRAKE

7075364

Unavailable

50

HOUSING

4020052

Unavailable

51

Housing

4020115

$1.59

52

HOUSING

4020114

Unavailable

53

HARNESS, HEADLIGHT

2460383

Unavailable
