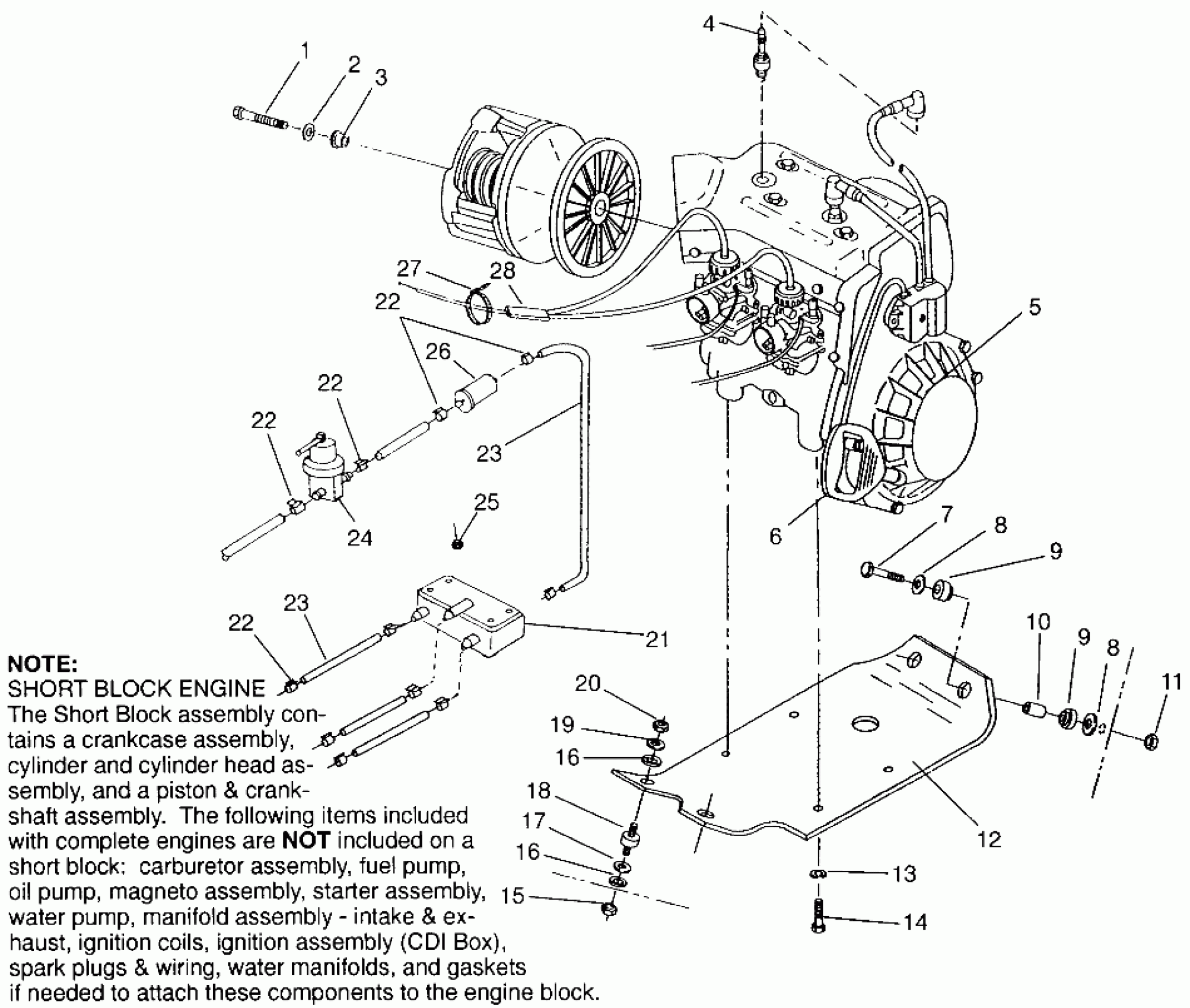

Polaris SUPER SPORT - 0960743 ENGINE MOUNTING SUPER SPORT 0960743 (4932183218B014) Diagram

#

Description
Price

1

SCREW(10)

7512593

Unavailable

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAINER

5010278

Unavailable

4

SPARKPLUG (10)

3070156

$3.99

5

ENG.(S.B.)EC44-3PM025 [No Longer Available]

3084623

Unavailable

6

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

7

SCREW(10)

7512530

$5.59

8

WASHER(10)

7555740

$1.59

8

WASHER(10)

7555740

$1.59

9

MOUNT, ENGINE

5410390

Unavailable

9

MOUNT, ENGINE

5410390

Unavailable

10

TUBE,SPACER

5333354

Unavailable

11

NUT,FLANGE(10)

7542522

$5.59

12

PLATE,MTR.MT. Substituted by 5131192

5131099

Unavailable

13

WASHER LOCK(10)

7553101

$3.99

14

BOLT(10)

7512539

$3.99

15

NUT LOCK(10)

7542411

$3.19

16

WASHER,FLAT(10)

7555915

$3.19

16

WASHER,FLAT(10)

7555915

$3.19

17

WASHER(10)

7555721

$1.49

18

MOUNT

3110022

Unavailable

19

WASHER(10) Substituted by 7555806

7555720

$0.79

20

NUT-LOCK(10)

7542439

$1.49

21

Asm., Fuel Pump (See Pg., Ref. 2)

-------

Unavailable

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

23

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

23

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

24

VALVE,FUEL SHUT-OFF

7052060

Unavailable

25

NUT-LOCK(10)

7542122

$1.49

26

FILTER FUEL,(10)

2530008

$4.84

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

28

CABLE,THROTTLE,W/OIL

7080552

Unavailable
