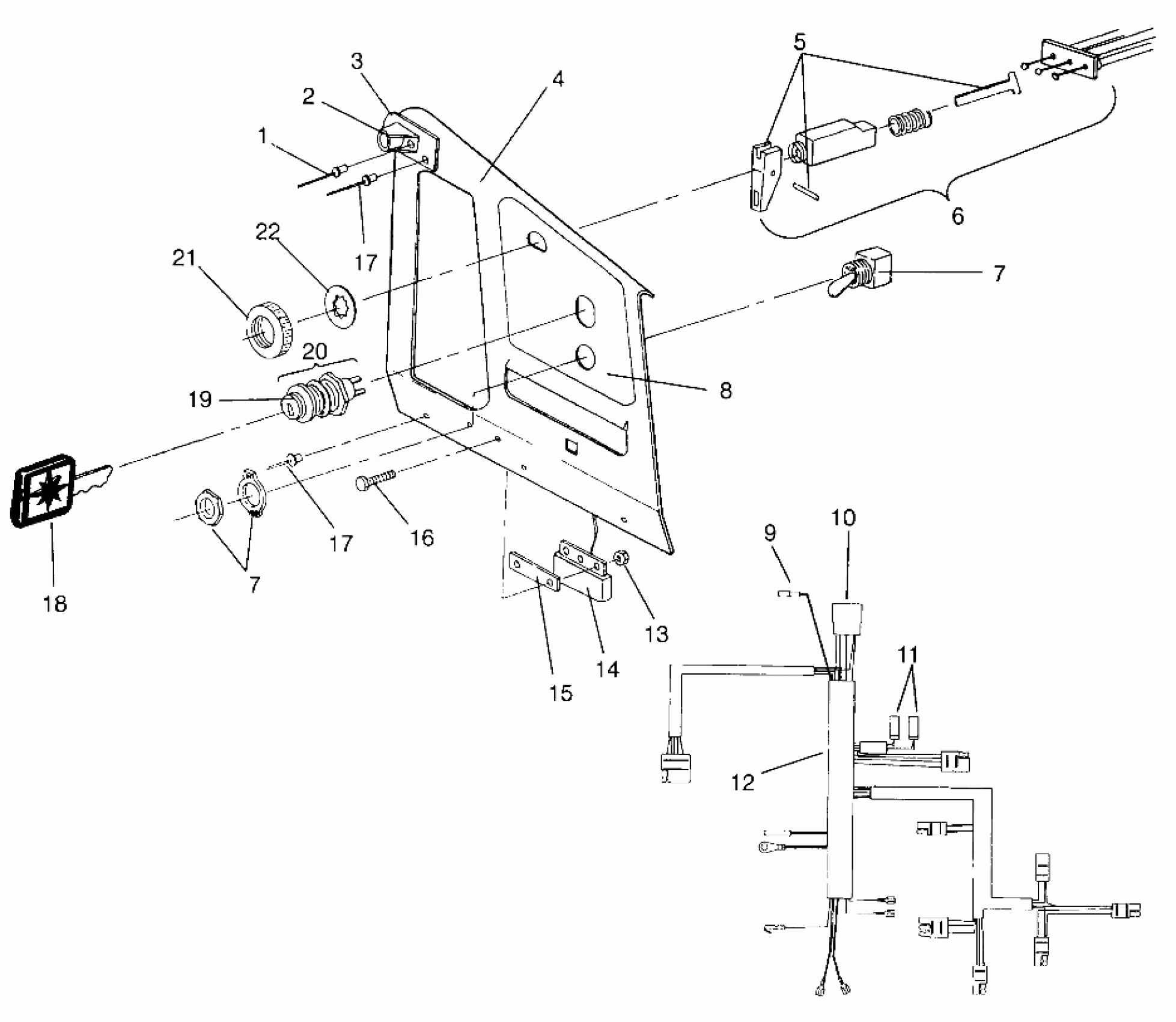

Polaris SUPER SPORT - 0960743 CONSOLE SUPER SPORT 0960743 (4932183218A013) Diagram

#

Description
Price

1

RIVET,(50)

7621477

$1.19

2

GUIDE, RECOIL

5431385

$10.51

3

BRKT,ROPE GUIDE,BLK.

5222682-067

Unavailable

4

CONSOLE

5222756-067

Unavailable

5

KIT-CHOKE CONTROL

2200188

$24.27

6

Cable, Choke Control

7080290

$105.22

7

SWITCH,H-BAR HEATER

4110066

Unavailable

7

SWITCH,H-BAR HEATER

4110066

Unavailable

8

DECAL, CONSOLE [No Longer Available]

7072973

Unavailable

9

HOUSING

4020133

Unavailable

10

Housing w/Receptacle

4020057

$3.51

11

Housing

4020153

$1.49

12

HARNESS, MAIN WIRE

2460429

Unavailable

13

NUT(10)

7541925

$1.49

14

REGULATOR,14 VAC.LR-9 (replaces LR8)

4060122

Unavailable

15

SPACER,REGULATOR

5211573

Unavailable

16

BOLT(10)

7512031

$2.23

17

RIVET,INTERLOCK,B(50)

7661638

$1.49

17

RIVET,INTERLOCK,B(50)

7661638

$1.49

18

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote)

5410611

Unavailable

19

NUT, IGN.SWITCH(10)

7543101

Unavailable

20

KIT,IGN. SWITCH (Incl.)

2200357

Unavailable

21

Nut

7080229

$19.99

22

WASHER-LOCK(10) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code

7571610

$3.99
