Partiron

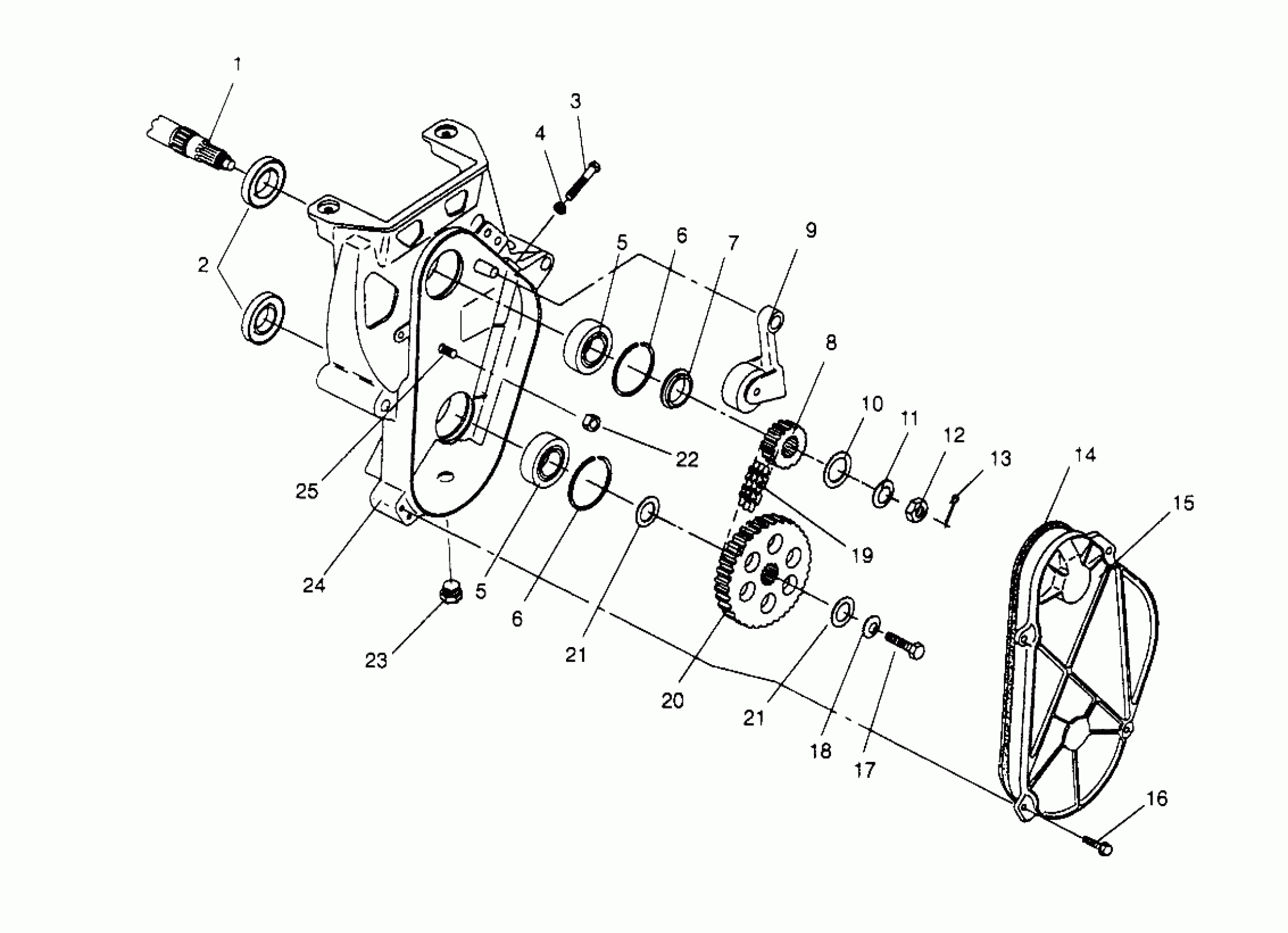

Polaris SUPER SPORT - 0960743 CHAINCASE SUPER SPORT 0960743 (4932183218B006) Diagram

#

Description
Price

1

Asm., Jackshaft (See Pg. A19, Ref. 15)

-------

Unavailable

2

SEAL-OIL

3610030

$20.22

3

SCREW(10)

7515511

$3.99

4

NUT(10)

7542404

$1.59

5

BEARING,205,W/O SEAL

3514304

$15.99

5

BEARING,205,W/O SEAL

3514304

$15.99

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

SPACER, SPROCKET

5010270

Unavailable

8

SPROCKET 17 T

3221033

Unavailable

9

PIN,CHAIN TIGHTENER

7662210

Unavailable

9

TIGHTENER ASM,GEARCASE Substituted by 1332213

1332096

$159.99

9

BEARING

3553002

$11.99

9

BLOCK,TIGHTENER [No Longer Available]

5630122

Unavailable

9

WHEEL,C/C IDLER

5630123

Unavailable

9

WASHER THRUST(10)

7558702

$1.59

10

BUSHING(10)

7555863

$2.39

11

WASHER, SLOTTED(10)

7571620

$7.19

12

NUT

7542811

Unavailable

13

COTTER PIN(10)

7661401

$1.49

14

GASKET-CHAINCASE

5410277

$24.99

15

COVER, CHAINCASE Substituted by 5630968

5630413

Unavailable

16

SCREW(10)

7512242

$2.39

17

SCREW(10)

7515350

$3.97

18

WASHER(10)

7571618

$6.39

19

CHAIN,62P,SILENT

3224026

Unavailable

20

SPROCKET 35 T

3222036

$53.59

21

BUSHING(10)

7555864

$2.39

21

BUSHING(10)

7555864

$2.39

22

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

23

PLUG(10)

7052115

$5.65

24

CHAINCASE,TOP MT,VENTED MACH Substituted by 5131121

5131055

Unavailable

25

BOLT(10)

7515477

$34.99
