BLOWER HOUSING and RECOIL STARTER SUPER SPORT 0960743 (4932183218C011)

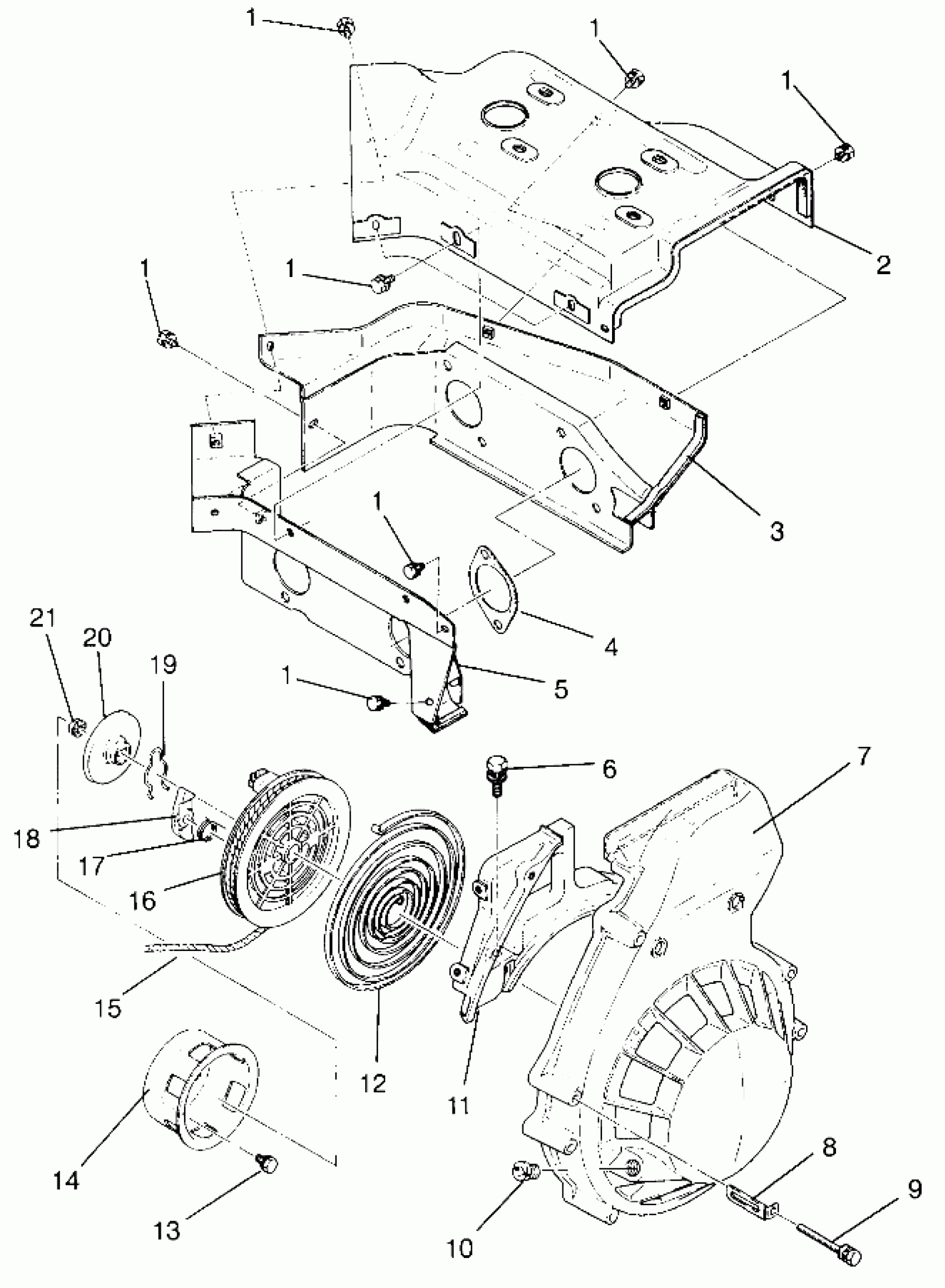

Polaris SUPER SPORT - 0960743 BLOWER HOUSING and RECOIL STARTER SUPER SPORT 0960743 (4932183218C011) Diagram
#
Description
Price
1
BOLT & WASHER(10) Substituted by 3081645
3083231
Unavailable
1
BOLT & WASHER(10) Substituted by 3081645
3083231
Unavailable
1
BOLT & WASHER(10) Substituted by 3081645
3083231
Unavailable
1
BOLT & WASHER(10) Substituted by 3081645
3083231
Unavailable
1
BOLT & WASHER(10) Substituted by 3081645
3083231
Unavailable
1
BOLT & WASHER(10) Substituted by 3081645
3083231
Unavailable
1
BOLT & WASHER(10) Substituted by 3081645
3083231
Unavailable
2
BAFFLE,CYL.#1
3084588
Unavailable
3
BAFFLE,CYL.#2
3085008
Unavailable
4
Gasket, Intake, Non-Asbestos (See Pg., Ref.)
-------
Unavailable
5
BAFFLE,CYL.#3 (Incl. 4) (See Pg., Ref.)
3085009
Unavailable
6
BOLT&WASHER ASM.
3084225
$3.99
7
RECOIL STARTER (Incl. 7, 10, 12, 16-21)
3083547
Unavailable
7
CASE, STARTER
3083548
Unavailable
8
Clamp
3083590
$3.99
9
BOLT&WASHER ASM.
3083550
Unavailable
10
GUIDE-ROPE
3083107
Unavailable
11
HOUSING,BLOWER,#2
3083697
Unavailable
12
Spring, Spiral
3083376
$179.11
13
BOLT,(10)
3081665
$3.19
14
PULLEY, STARTER
3083549
Unavailable
15
ROPE,100 FT,NYL.STARTER
2870621
Unavailable
16
REEL, REWIND
3083377
$56.65
17
Spring, Return
3083463
$4.03
18
Ratchet
3083378
$20.22
19
Spring, Friction
3083379
$24.27
20
Plate, Friction
3083464
$28.32
21
NUT, FLANGE ,(10)
3083381
$2.99
