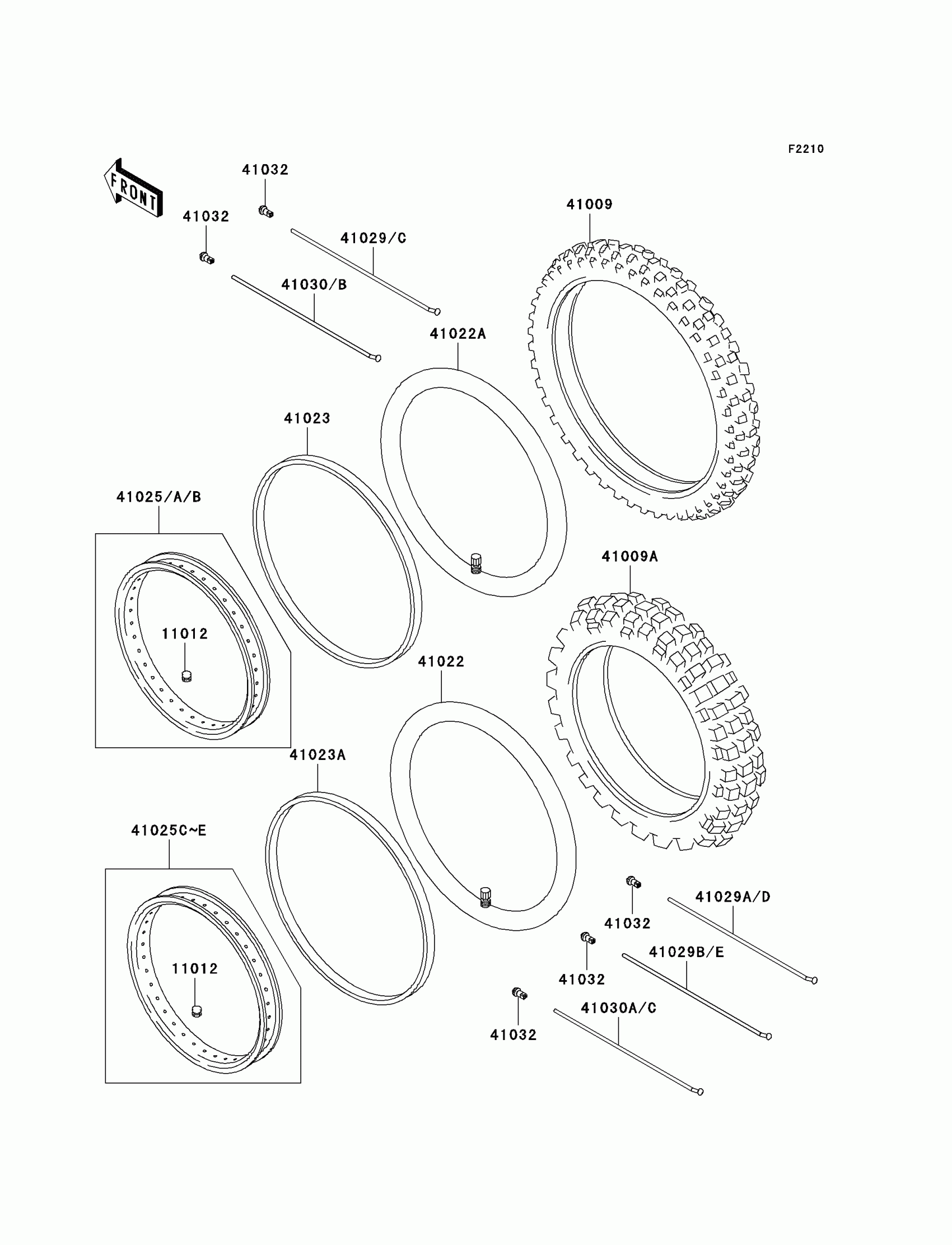

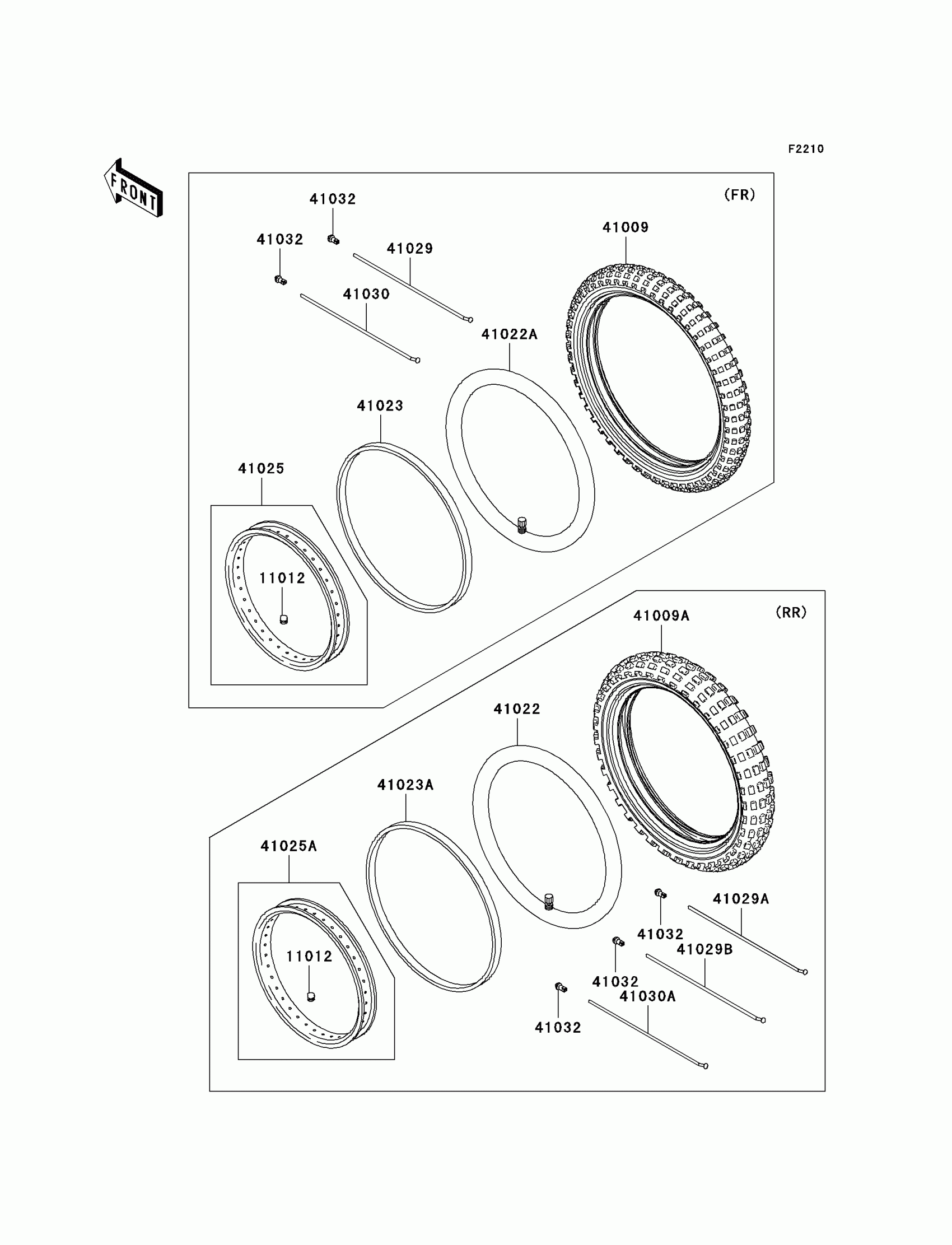

Kawasaki Super Sherpa (Canada Only) Wheels/Tires Diagram

Description

Price

11012

CAP,BEAD STOPPER

11012-1670

$2.60

41009

TIRE,FR,2.75-21 45P,TW301(BS)

41009-1194

$167.60

41009A

TIRE,RR,4.10-18 59P,TW302(BS)

41009-1195

$180.79

41022

TUBE-TIRE,4.10-18(BS)

41022-1145

$49.14

41022A

TUBE-TIRE,2.75/3.50-21(BS)

41022-1178

$49.14

41023

BAND-RIM,FR,X-21(BS)

41023-1009

$13.87

41023A

BAND-RIM,4.10-18(BS)

41023-1086

$13.23

41025B

RIM,FR,1.60X21,A.BLACK

41025-1330-WC

Unavailable

41025E

RIM,RR,2.15X18,A.BLACK

41025-1332-WC

Unavailable

41029

SPOKE-INNER,FR,229MMX167D

41029-0017

$4.74

41029A

SPOKE-INNER,RR,RH,190MMX162D

41029-0018

$4.74

41029B

SPOKE-INNER,RR,LH,194MMX172D

41029-0019

$4.74

41030

SPOKE-OUTER,FR,227MMX167D

41030-0006

$4.74

41030A

SPOKE-OUTER,RR,LH,192MMX172D

41030-0007

$4.74

41032

NIPPLE-SPOKE

41032-1073

$4.26
