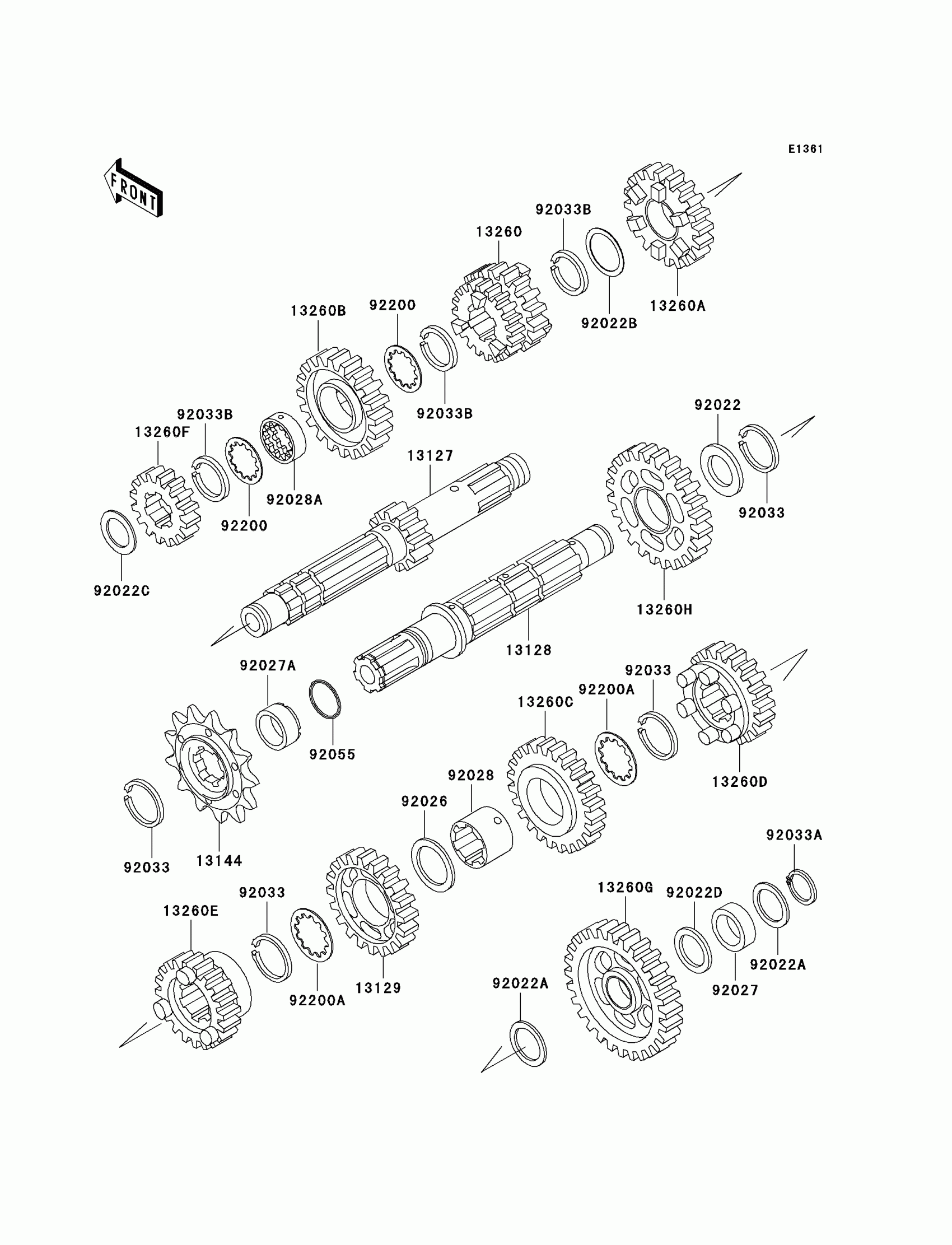

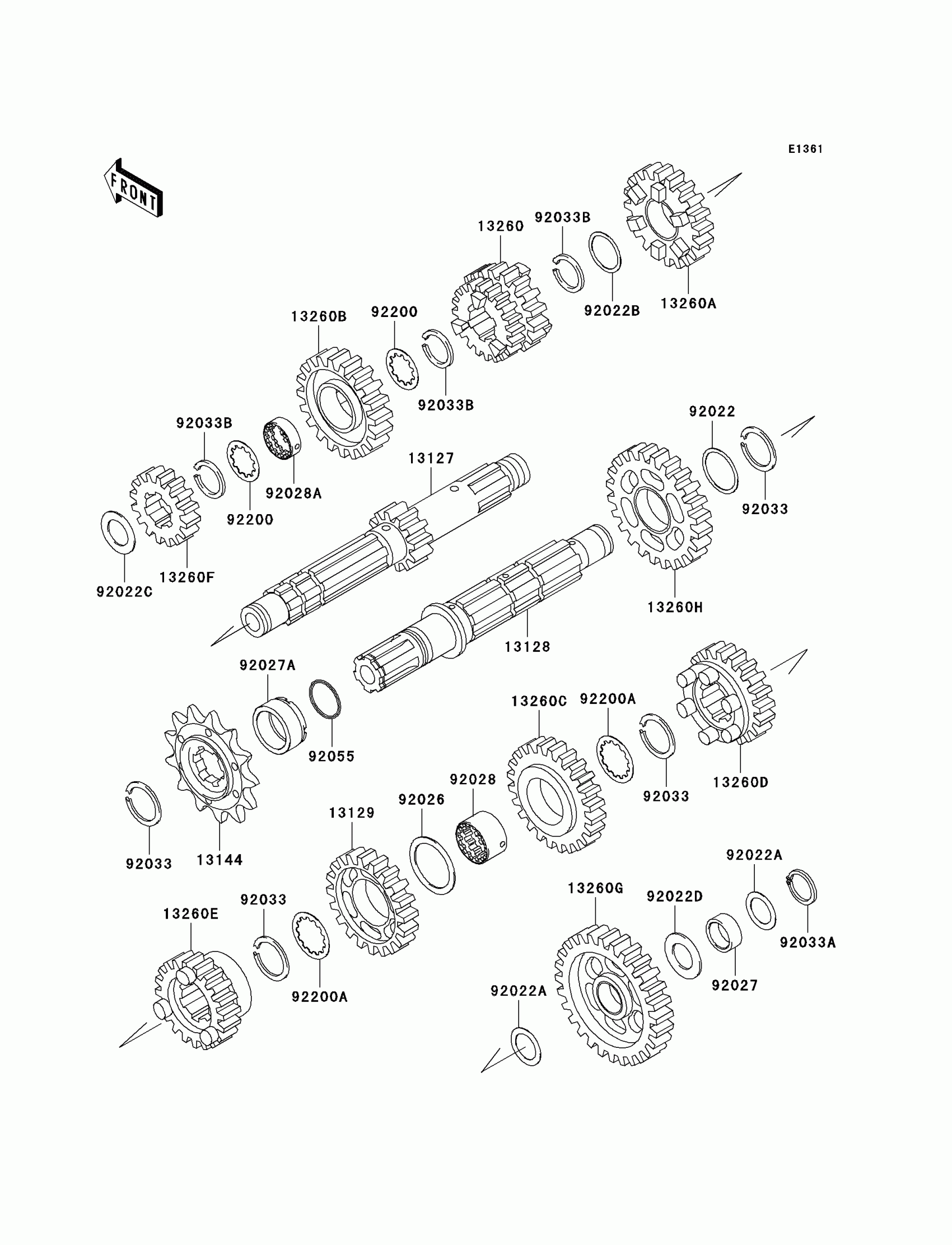

Kawasaki Super Sherpa (Canada Only) Transmission Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,11T

13127-1258

$202.32

13128

SHAFT-TRANSMISSION OUTPUT

13128-1224

$178.31

13129

GEAR,OUTPUT 3RD,27T

13129-1650

$125.01

13144

SPROCKET-OUTPUT,14T

13144-1237

$44.86

13260

GEAR,INPUT 3RD&4TH,18T&27T

13260-1656

$142.88

13260A

GEAR,INPUT 5TH,26T

13260-1657

$123.62

13260B

GEAR,INPUT TOP,27T

13260-1658

$127.60

13260C

GEAR,OUTPUT 4TH,31T

13260-1660

$123.62

13260D

GEAR,OUTPUT 5TH,25T

13260-1661

$123.62

13260E

GEAR,OUTPUT TOP,23T

13260-1662

$123.62

13260F

GEAR,INPUT 2ND,16T

13260-1672

$123.62

13260G

GEAR,OUTPUT LOW,34T

13260-1673

$123.62

13260H

GEAR,OUTPUT 2ND,34T

13260-1674

$123.62

92022

WASHER,25.3X30X0.5

92022-159

$8.58

92022A

WASHER,17.3X25X0.5

92022-1614

$4.31

92022B

WASHER,22.3X27X0.5

92022-198

$5.52

92022C

WASHER,17.3X28X1

92022-255

$8.58

92022D

WASHER,17.3X30X1.4

92022-270

$9.84

92026

SPACER,30X38X1.0

92026-079

$8.86

92027

COLLAR,17X22X8.5

92027-1315

$14.23

92027A

COLLAR,25X32X15.3

92027-1800

$28.72

92028

BUSHING,OUTPUT 3RD&4TH GEAR

92028-1822

$30.74

92028A

BUSHING,INPUT TOP GEAR

92028-1823

$24.53

92033

RING-SNAP,24MM

92033-026

$8.79

92033A

RING-SNAP

92033-032

$4.96

92033B

RING-SNAP

92033-1293

$3.56

92055

RING-O,21.5X1.5

92055-1293

$5.00

92200

WASHER,INPUT

92200-1370

$4.13

92200A

WASHER,OUTPUT

92200-1371

$4.67
