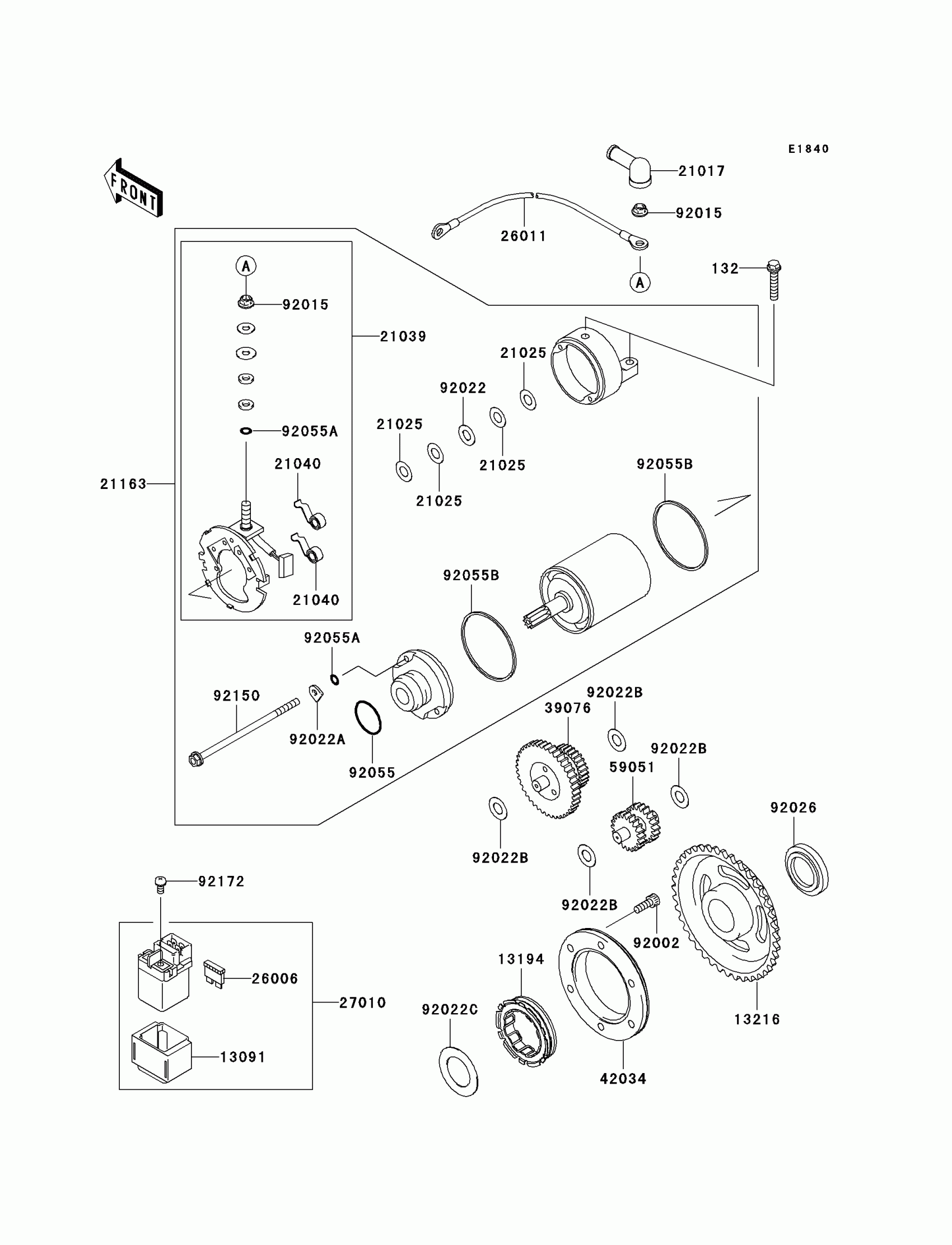

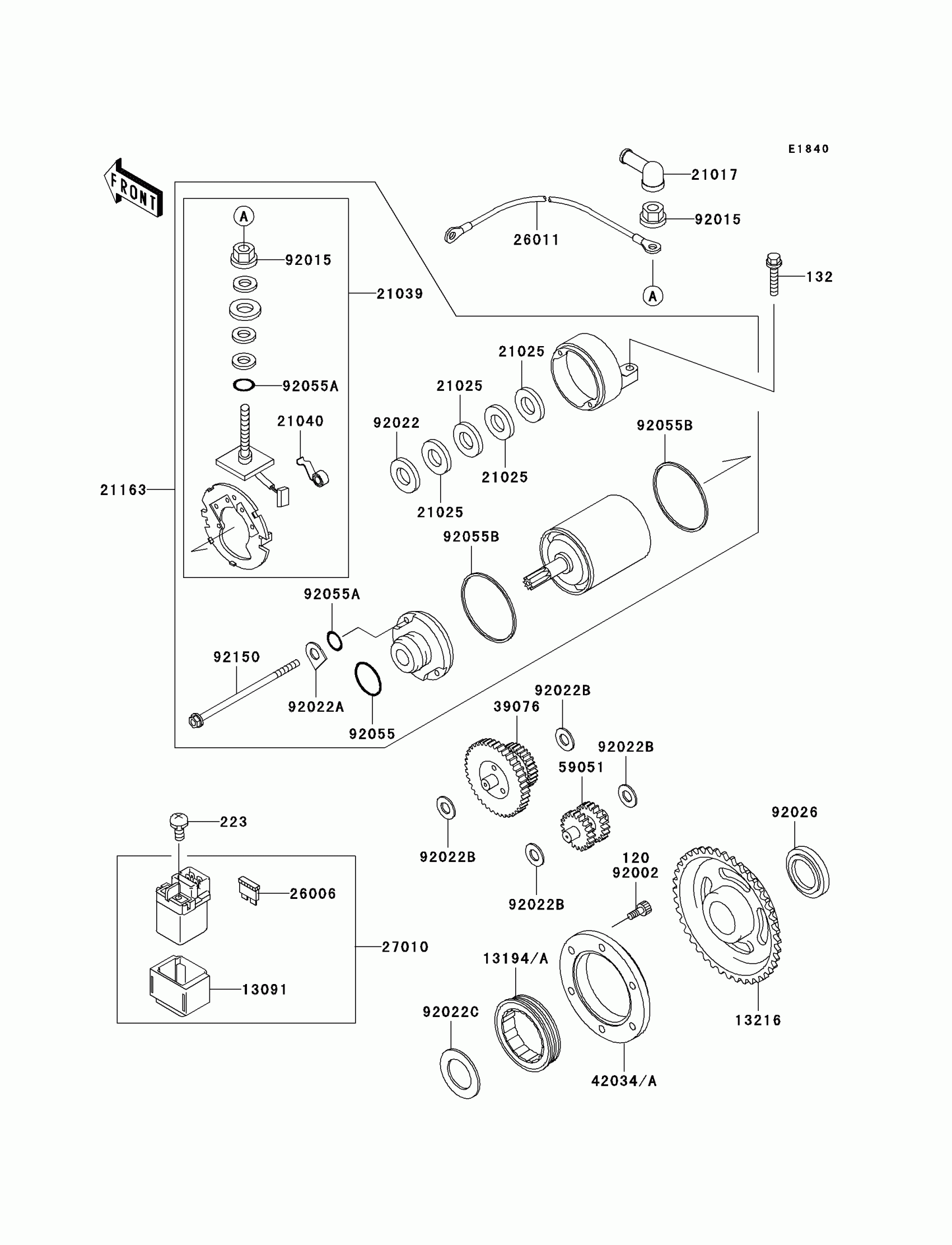

Kawasaki Super Sherpa (Canada Only) Starter Motor Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X30

132BC0630

$2.15

13091

HOLDER

13091-1992

$7.60

13194

CLUTCH-ONEWAY

13194-1091

Unavailable

13216

GEAR-COMP,ONEWAY CLUTCH

13216-1148

$195.45

21017

GROMMET,STARTER TERMINAL

21017-017

$9.43

21025

WASHER,9.1X18X0.2

21025-011

Unavailable

21039

BRUSH,CARBON

21039-1062

$84.32

21040

SPRING-BRUSH

21040-1057

$8.42

21163

STARTER-ELECTRIC

21163-1256

$453.32

26006

FUSE,BLADE,20A,YELLOW

26006-1051

$4.96

26011

WIRE-LEAD

26011-1604

$71.15

27010

SWITCH

27010-0004

Unavailable

39076

LIMITER,STARTER IDLER GEAR

39076-1069

$168.17

42034

COUPLING

42034-1181

$115.59

59051

GEAR-SPUR,IDLE

59051-1304

$89.00

92002

BOLT,SOCKET,6X16

92002-1778

$5.00

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,9.1X18X0.8

92022-1132

$6.22

92022A

WASHER,LOCK,T=2.0

92022-1458

$6.22

92022B

WASHER,10.2X20X0.5

92022-1649

$4.31

92022C

WASHER,27.2X44X1.0

92022-1781

$6.34

92026

SPACER

92026-1450

$19.96

92055

RING-O

92055-1276

$9.91

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O,STARTER MOTOR

92055-1381

$9.91

92150

BOLT,STARTER MOTOR

92150-1838

$10.39

92172

SCREW-PAN-WS-CROS,5X10

92172-0234

$2.15
