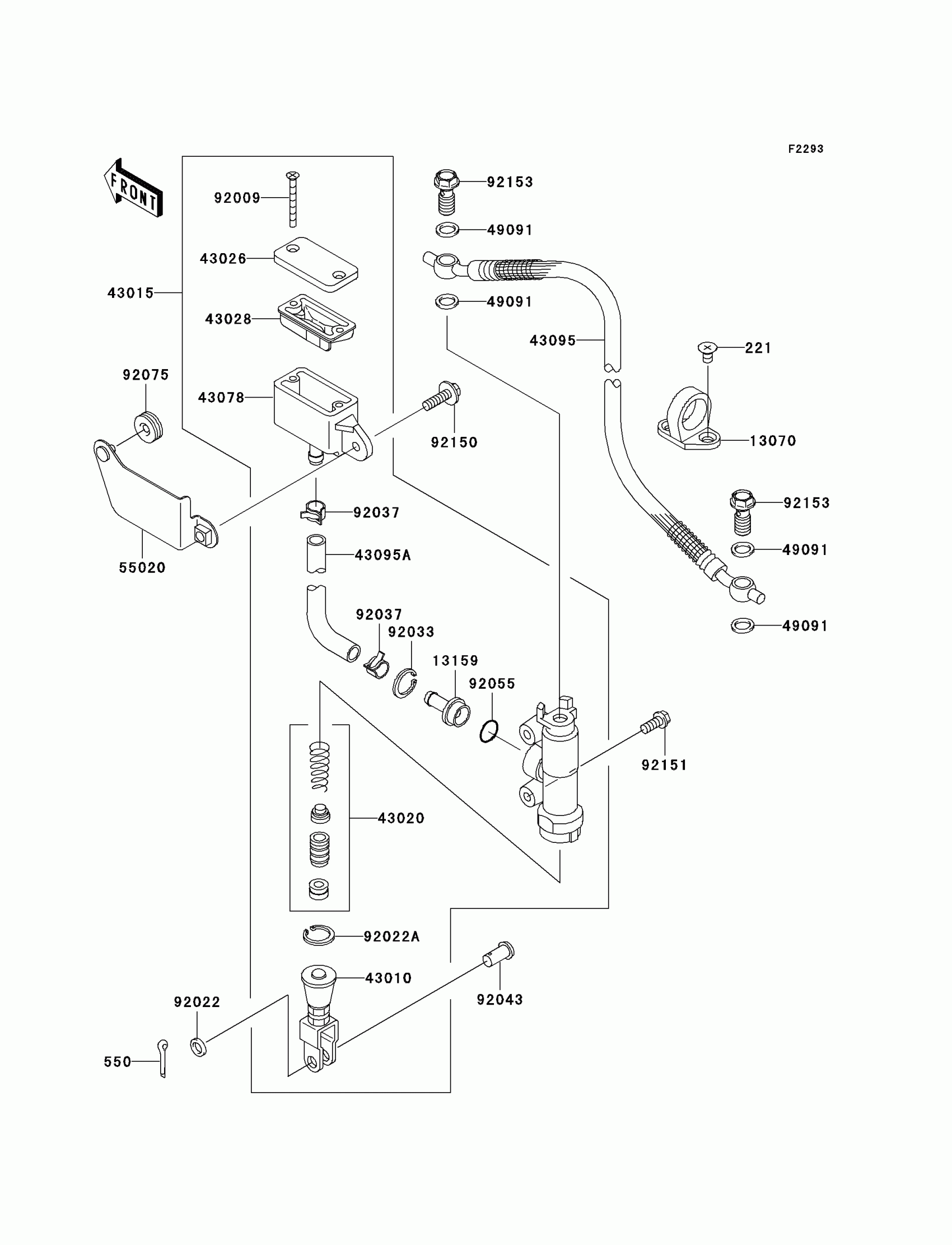

Kawasaki Super Sherpa (Canada Only) Rear Master Cylinder Diagram

Description

Price

221

SCREW-CSK-CROS,6X10

221AA0610

$3.67

550

PIN-COTTER,2.0X15

550AA2015

$1.12

13070

GUIDE,HOSE

13070-1322

$5.52

13159

CONNECTOR

13159-1065

$7.26

43010

ROD-ASSY-BRAKE

43010-1068

$51.24

43015

CYLINDER-ASSY-MASTER,RR

43015-1707

$303.84

43020

PISTON-COMP-BRAKE

43020-1094

$65.22

43026

CAP-BRAKE

43026-1075

$13.61

43028

DIAPHRAGM

43028-1067

$18.72

43078

RESERVOIR

43078-1189

$30.34

43095

HOSE-BRAKE,RR

43095-0162

$100.05

43095A

HOSE-BRAKE,RR MASTER CYLINDER

43095-1065

$7.52

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

55020

GUARD,RR MASTER RESERVOIR

55020-1610

$10.97

92009

SCREW,4X40

92009-1596

$3.94

92022

WASHER,8.5X13X1

92022-1028

$3.92

92022A

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$4.96

92037

CLAMP

92037-1710

$9.91

92043

92043-0004

$11.16

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92075

DAMPER

92075-1629

$5.00

92150

BOLT,FLANGED,6X22

92150-1481

$4.31

92151

BOLT,6X14

92151-1423

$0.90

92153

BOLT,OIL,L=23

92153-0627

$5.48
