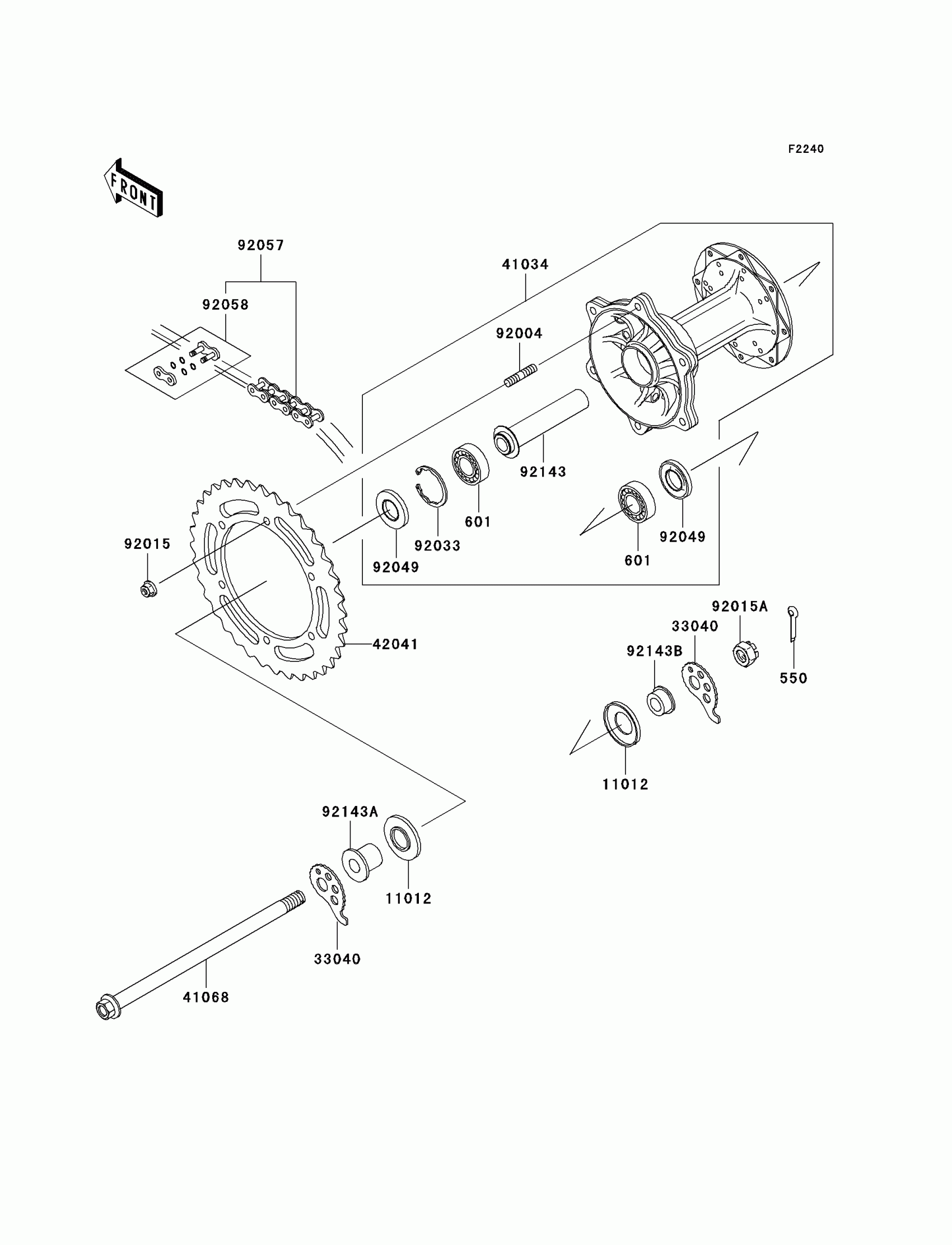

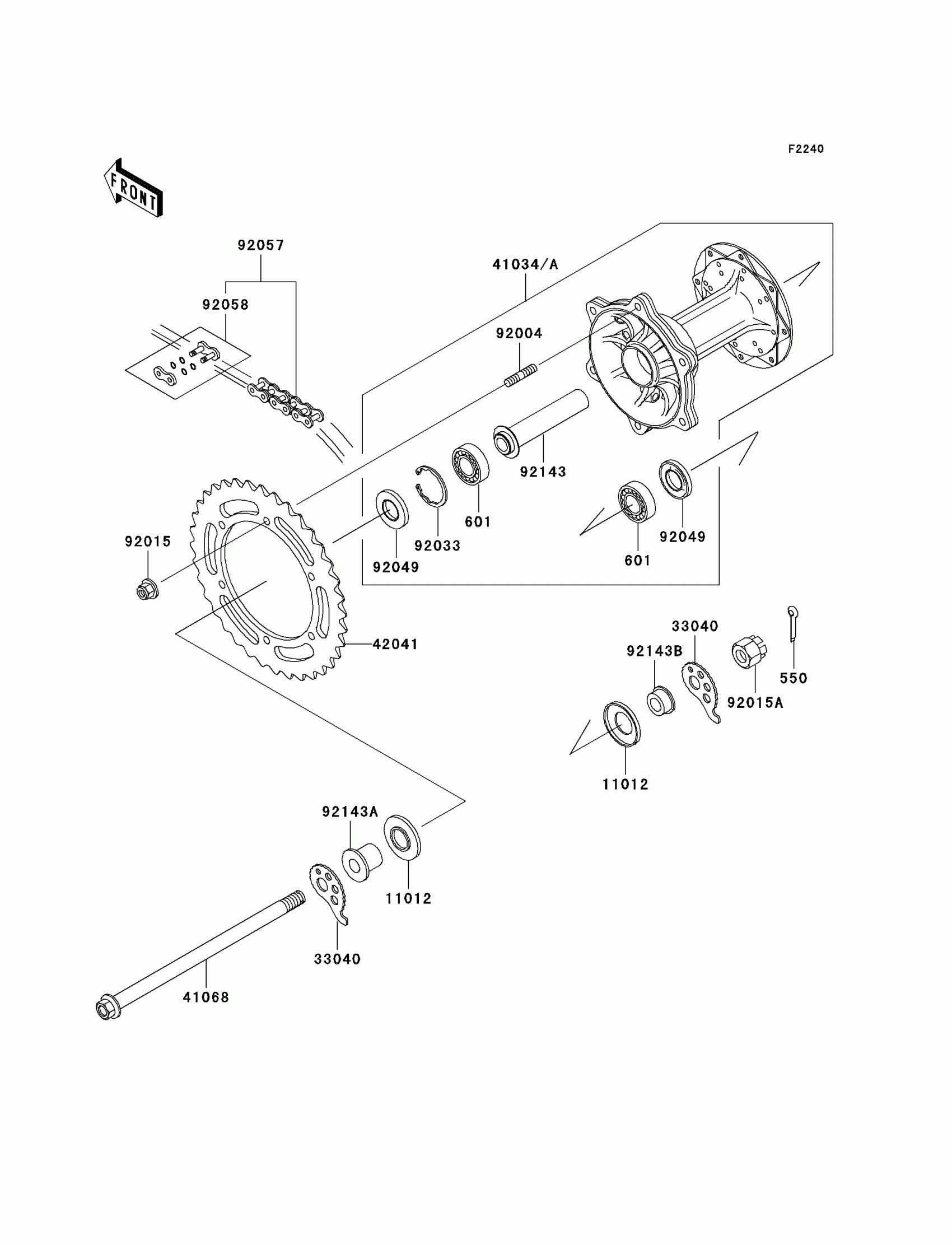

Kawasaki Super Sherpa (Canada Only) Rear Hub Diagram

Description

Price

550

PIN-COTTER,3.0X25

550AA3025

$0.62

601

BEARING-BALL,#6302UG

601B6302UG

$37.90

11012

CAP,AXLE

11012-1581

$6.51

33040

ADJUSTER-CHAIN

33040-1163

$28.55

41034

DRUM-ASSY,REAR BRAKE

41034-1306

$497.89

41068

AXLE,RR

41068-1393

$80.32

42041

SPROCKET-HUB,43T

42041-1488

$71.60

92004

STUD,8X17

92004-1239

$5.66

92015

NUT,8MM

92015-1432

$6.57

92015A

NUT,CASTLE,14MM

92015-1765

$9.91

92033

RING-SNAP,42MM

92033-1041

$6.16

92049

SEAL-OIL,MHSA25X42X6

92049-1314

$13.75

92057

CHAIN,DRIVE,EK520LV-OX102L

92057-0017

$190.98

92058

JOINT-CHAIN,DRIVE

92058-1100

$15.80

92143

COLLAR,L=115

92143-1020

$17.65

92143A

COLLAR,RR AXLE,LH,L=28

92143-1924

$23.02

92143B

COLLAR,RR AXLE,RH,L=13

92143-1925

$13.83
