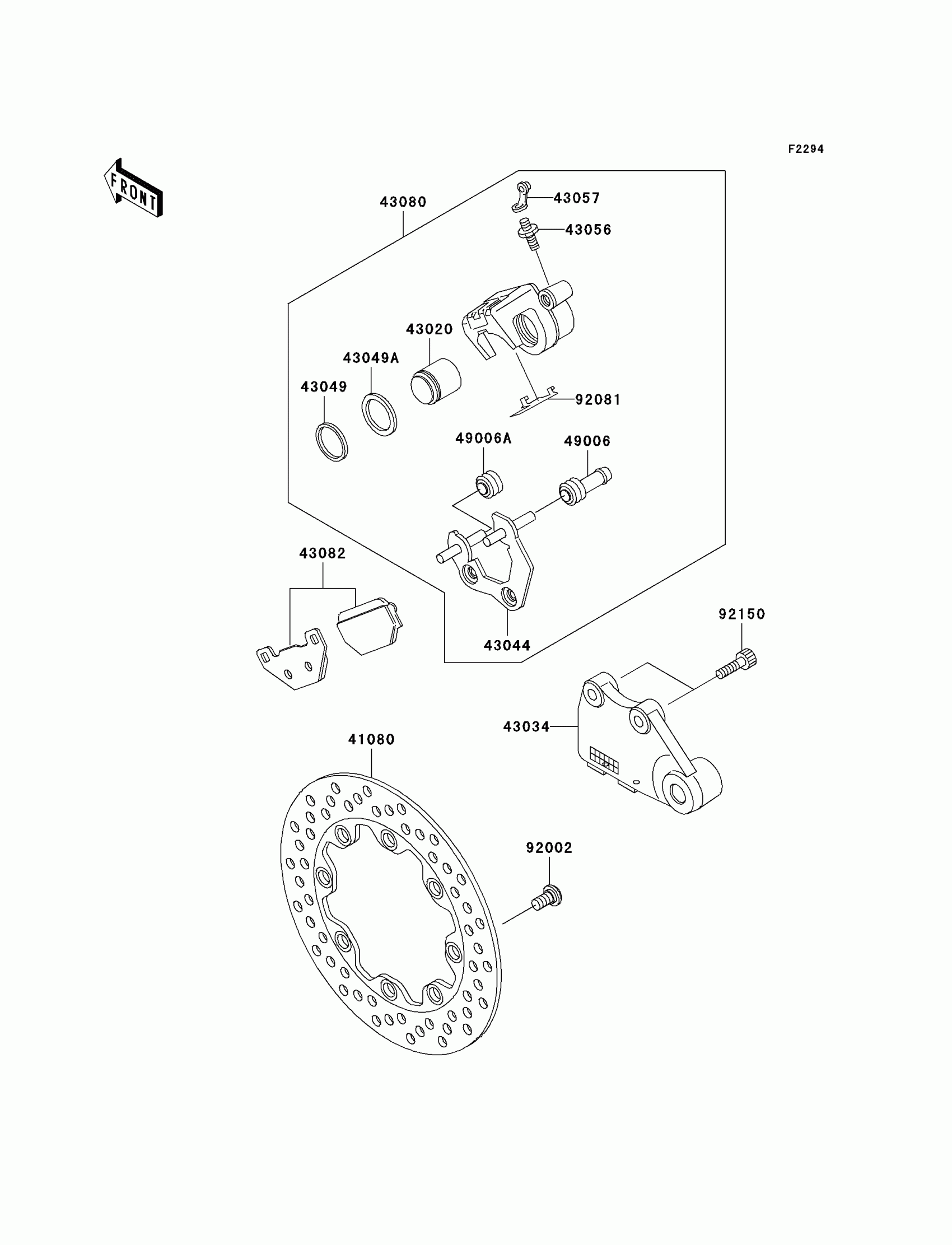

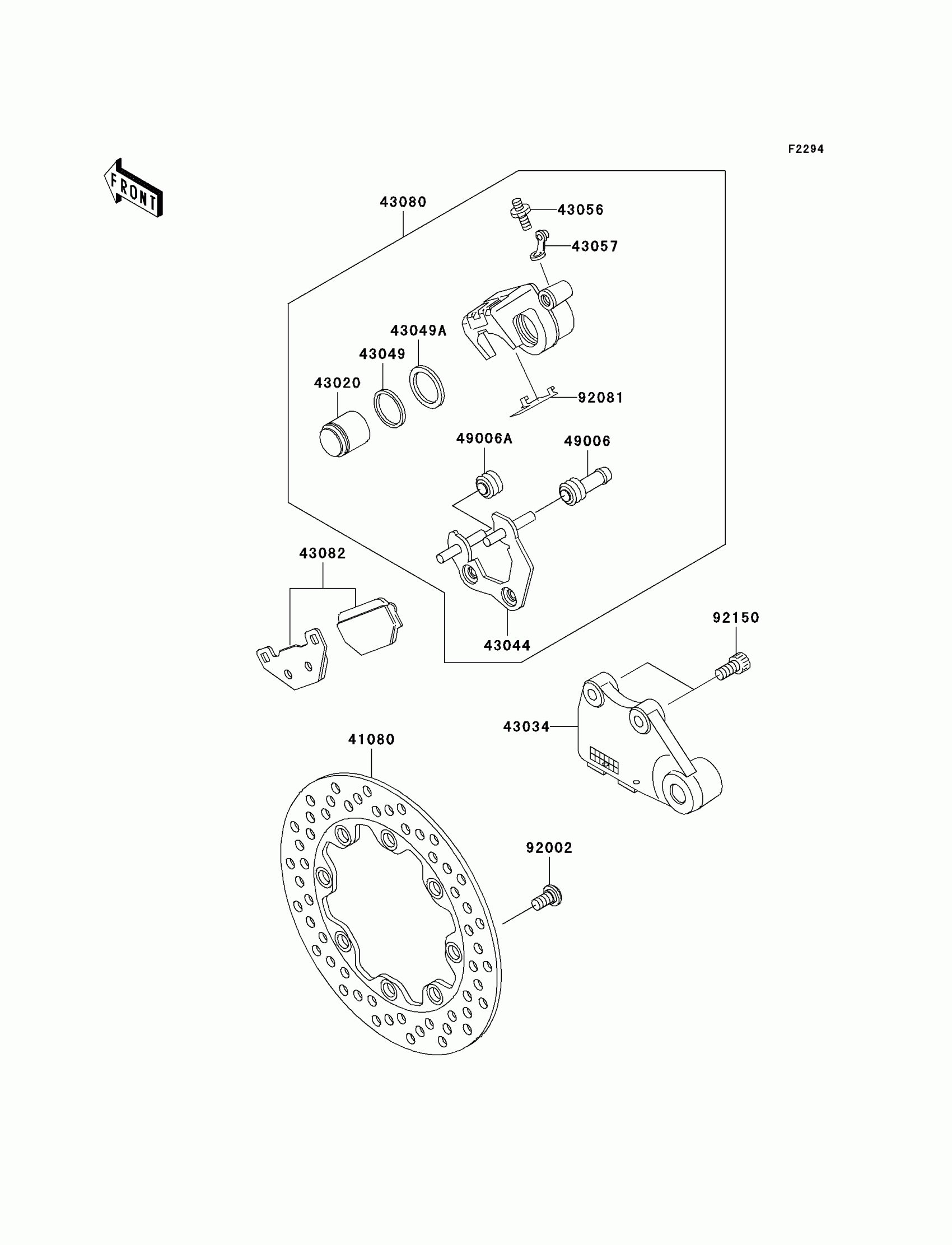

Kawasaki Super Sherpa (Canada Only) Rear Brake Diagram

Description

Price

41080

DISC,RR

41080-0149

$307.63

43020

PISTON-COMP-BRAKE

43020-1117

$49.70

43034

HOLDER-BRAKE,REAR CALIPER

43034-1141

$120.88

43044

HOLDER-COMP-CALIPER

43044-1028

$139.44

43049

PACKING

43049-1068

$9.82

43049A

PACKING,PISTON SEAL

43049-1092

$10.39

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,RR,SILVER

43080-5075-GN

$371.03

43082

PAD-ASSY-BRAKE

43082-1209

$51.92

49006

BOOT,CALIPER

49006-1054

$11.61

49006A

BOOT,CALIPER

49006-1055

$7.27

92002

BOLT,6MM

92002-1775

$4.31

92081

SPRING,PAD

92081-1341

$14.76

92150

BOLT,SOCKET,8X16

92150-1840

$4.18
