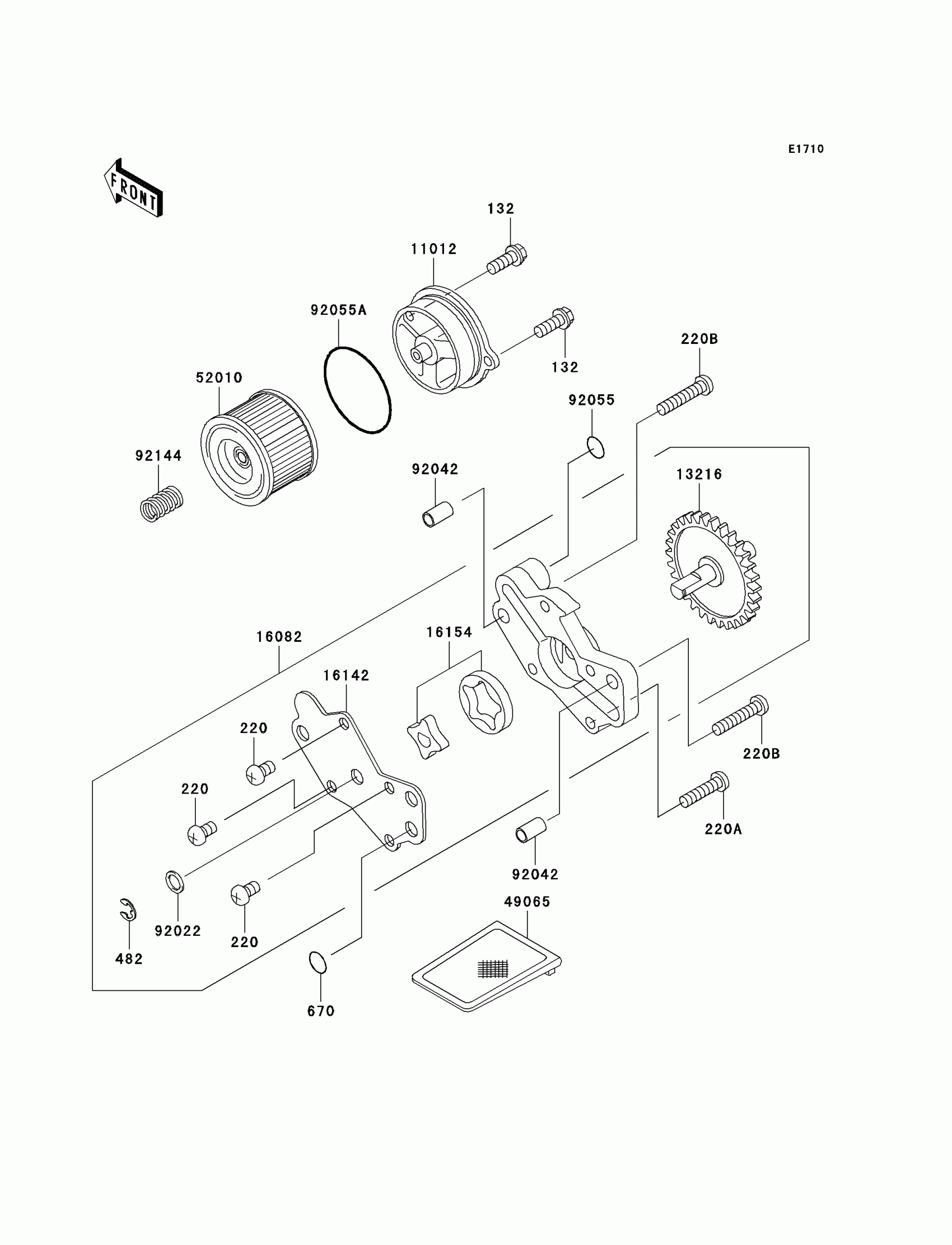

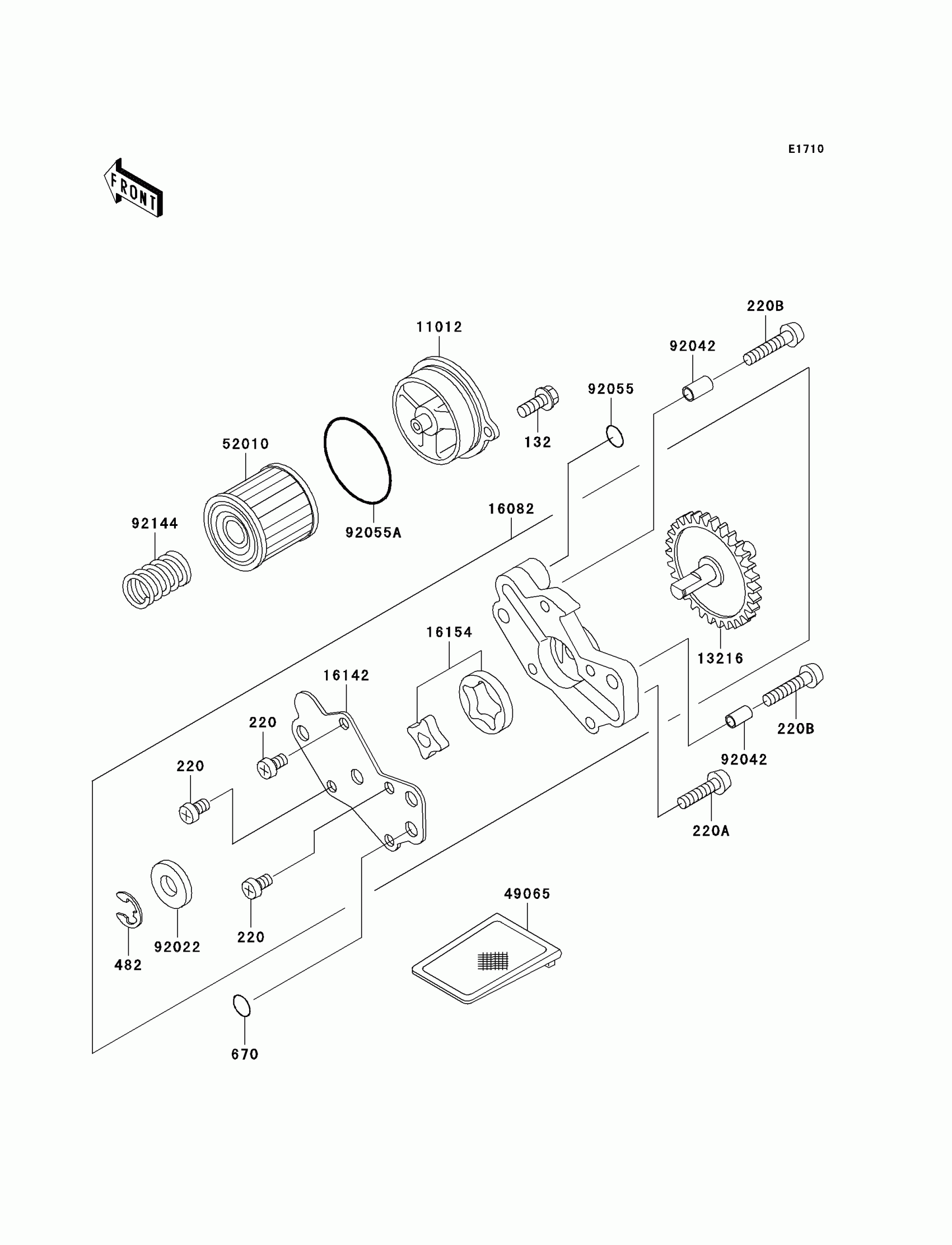

Kawasaki Super Sherpa (Canada Only) Oil Pump Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X16

132BD0616

$4.12

220

SCREW-PAN-CROS,6X10

220AA0610

$3.23

220A

SCREW-PAN-CROS,6X25

220AA0625

$2.78

220B

SCREW-PAN-CROS,6X30

220AA0630

$3.67

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.69

670

O RING,10MM

670B2010

$1.50

11012

CAP,OIL FILTER

11012-1995

$49.36

13216

GEAR-COMP

13216-1162

$111.94

16082

PUMP-ASSY-OIL

16082-1151

$177.20

16142

COVER-PUMP

16142-1123

$43.66

16154

ROTOR-PUMP

16154-1077

$37.81

49065

FILTER-OIL

49065-1058

$12.76

52010

ELEMENT-OIL FILTER

52010-1053

$9.10

92022

WASHER,10.2X14.5X1.0

92022-1181

$3.92

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92055

RING-O,OD=13

92055-074

$8.58

92055A

RING-O,52.6X2.4

92055-1577

$4.69

92144

SPRING

92144-1761

$4.65
