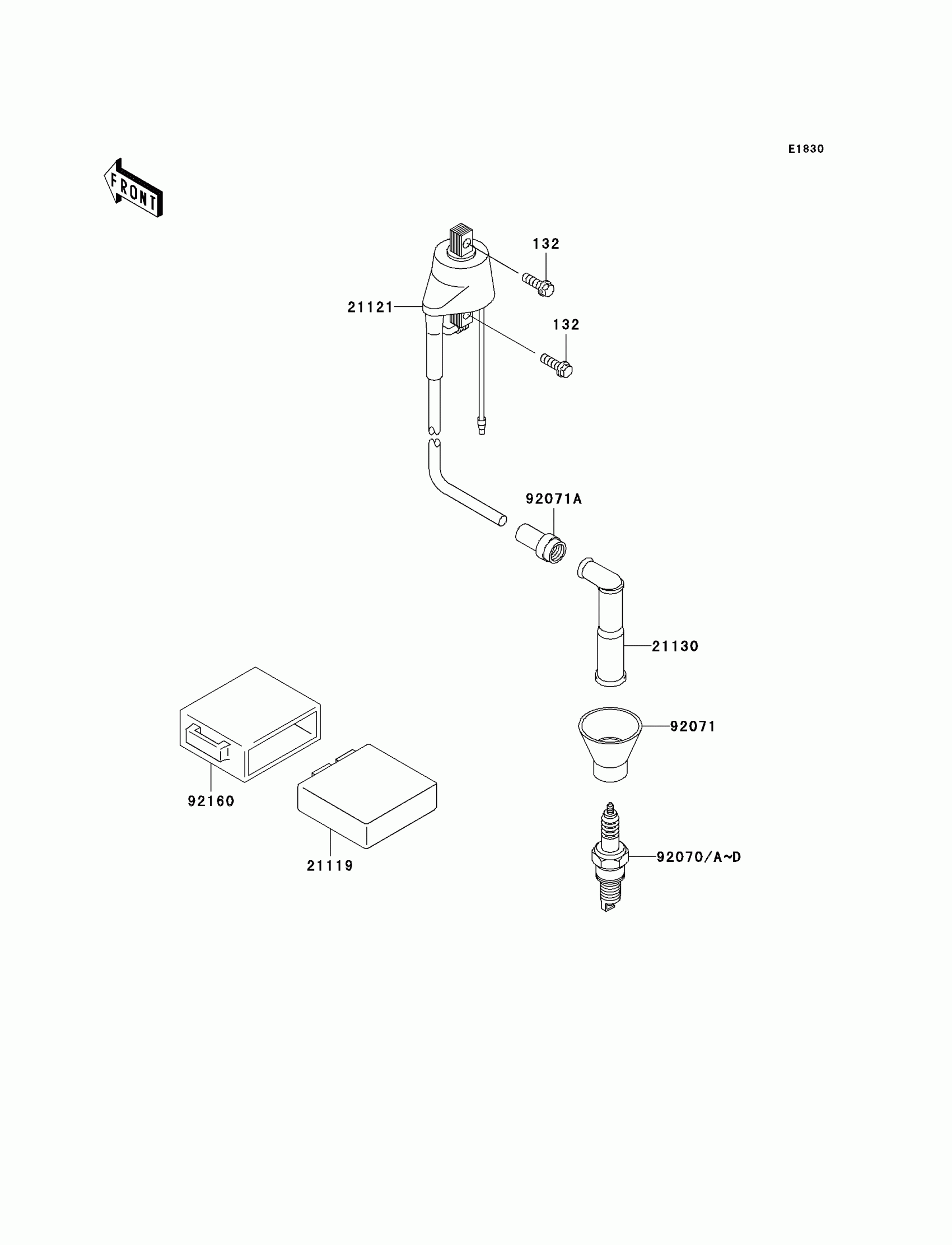

Kawasaki Super Sherpa (Canada Only) Ignition System Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X18

132J0618

$3.84

21119

IGNITER

21119-1489

$507.85

21121

COIL-IGNITION

21121-1230

$105.19

21130

CAP-SPARK PLUG

21130-1002

$51.68

92070

Not Available As Spare Part - Friction Washer

Unavailable

92070A

PLUG-SPARK,CR8E(NGK)

92070-1169

$6.26

92070B

Not Available As Spare Part - Friction Washer

Unavailable

92070C

PLUG-SPARK,CR7E(NGK)

92070-1209

$8.25

92070D

PLUG-SPARK,CR9E(NGK)

92070-1266

Unavailable

92071

GROMMET,PLUG CAP

92071-1244

$9.31

92071A

GROMMET,HIGH TENSION

92071-1245

$6.41

92160

DAMPER,IGNITER

92160-1259

$22.29
