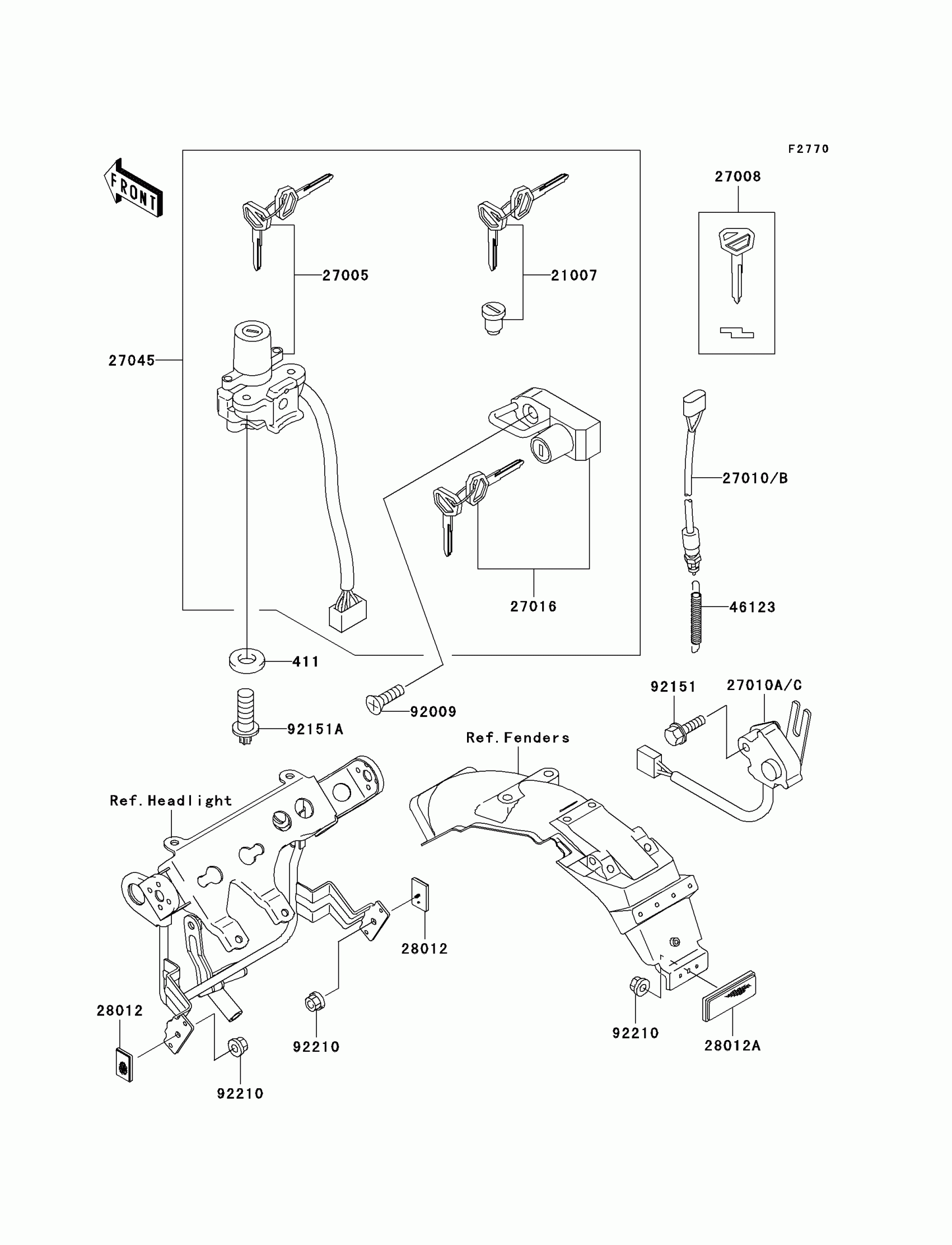

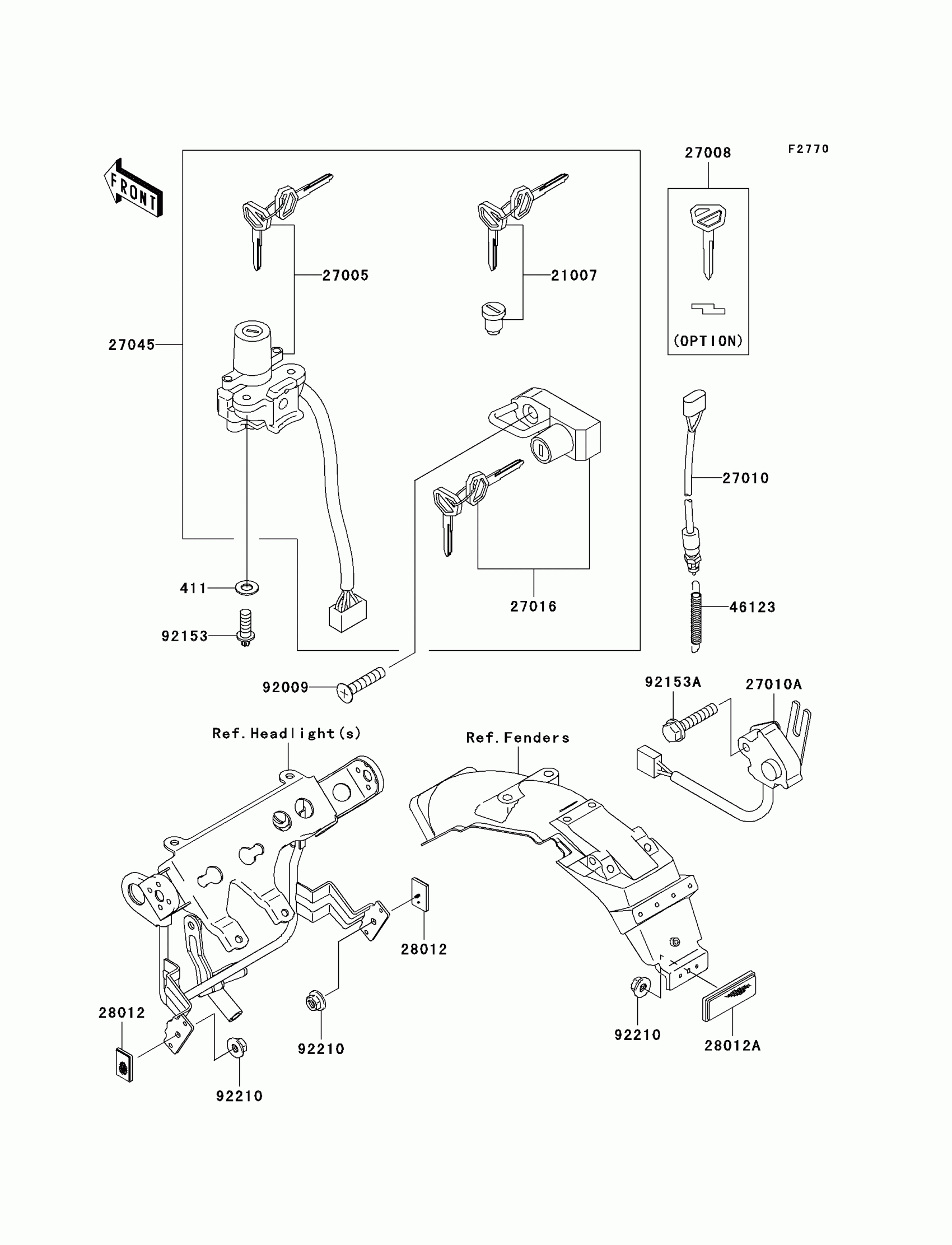

Kawasaki Super Sherpa (Canada Only) Ignition Switch Diagram

Description

Price

411

WASHER-PLAIN,6MM

411E0600

$1.31

21007

ROTOR,LOCK,TANK CAP

21007-5040

$55.22

27005

SWITCH-ASSY-IGNITION

27005-1203

$175.83

27008

KEY-LOCK,BLANK

27008-1170

$17.98

27010B

SWITCH,BRAKE LAMP

27010-1462

$50.49

27010C

SWITCH,SIDE STAND

27010-1471

$80.42

27016

LOCK-ASSY,HELMET

27016-5207

$73.22

27045

SWITCH-ASSY

27045-5038

$258.03

28012

REFLECTOR-REFLEX

28012-1003

$22.09

28012A

REFLECTOR-REFLEX

28012-1077

$23.25

46123

SPRING-COMP,REAR BRAKE SWITCH

46123-1056

$8.16

92009

SCREW,6X30

92009-1753

$4.10

92151

BOLT,FLANGED,6X30

92151-1216

Unavailable

92151A

BOLT,TORX,6X16

92151-1911

$2.61

92210

NUT,FLANGED,5MM

92210-0007

$2.70
