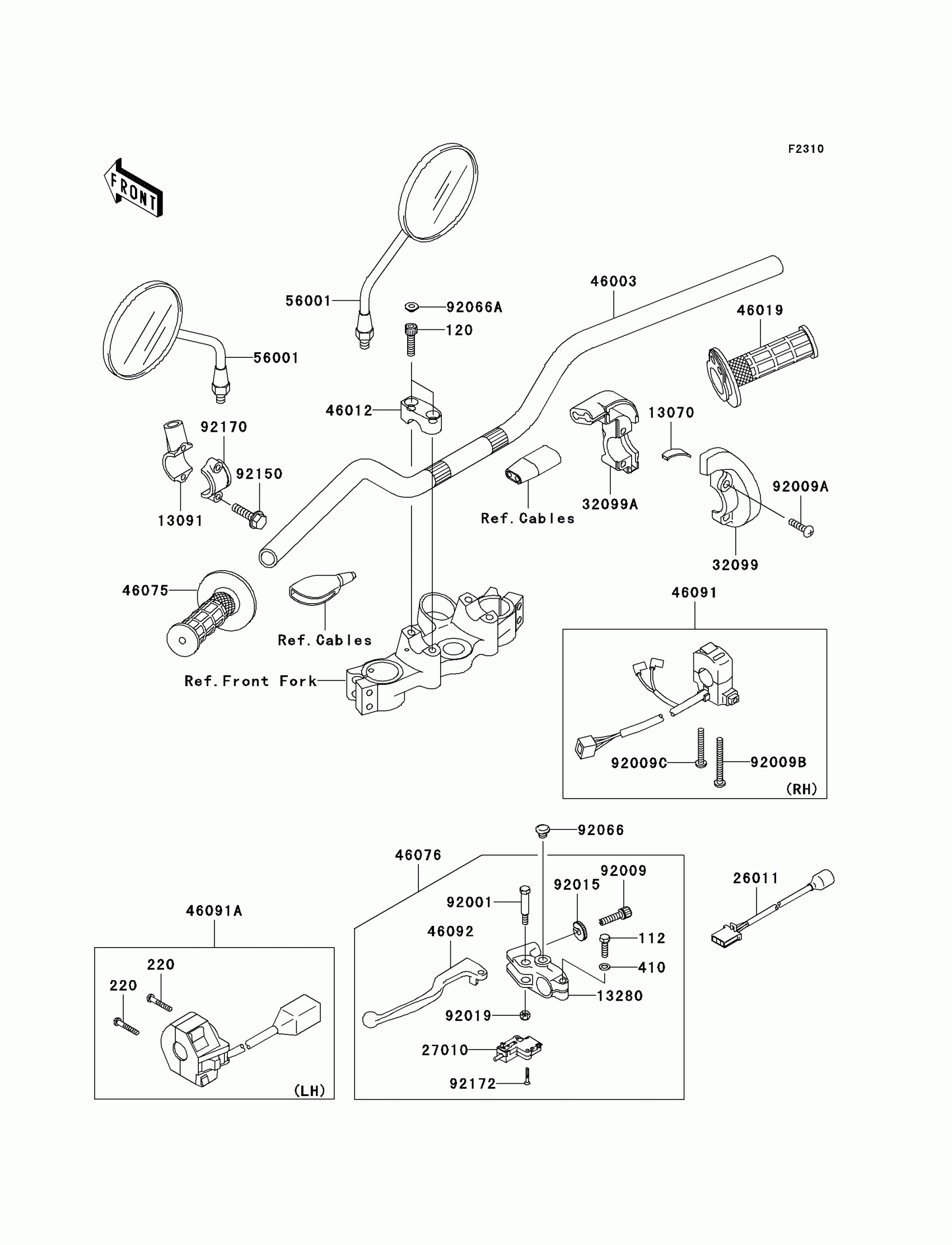

Kawasaki Super Sherpa (Canada Only) Handlebar Diagram
#
Description
Price
112
BOLT-UPSET,6X22
112BA0622
$3.74
120
BOLT-SOCKET,8X30
120CB0830
$4.69
220
SCREW-PAN-CROSS,5X30
220AB0530
$0.75
410
WASHER-PLAIN-SMALL
410AA0600
$1.31
13070
GUIDE,THROTTLE CABLE
13070-1274
$4.65
13091
HOLDER,MIRROR
13091-1995
$43.38
13280
HOLDER
13280-0348
$56.05
26011
WIRE-LEAD
26011-0268
$34.45
27010
SWITCH,CLUTCH,BLACK
27010-1094
$28.59
32099
CASE,THROTTLE,UPP
32099-1146
$30.38
32099A
CASE,THROTTLE,LWR
32099-1186
$32.59
46003
HANDLE
46003-0182
$139.94
46012
HOLDER-HANDLE,UPP
46012-1276
$24.12
46019
GRIP-ASSY,THROTTLE
46019-1093
$35.31
46075
GRIP,LH
46075-1149
$26.41
46076
LEVER-ASSY-GRIP
46076-0065
$79.08
46091
HOUSING-ASSY-CONTROL,RH
46091-1678
$110.42
46091A
HOUSING-ASSY-CONTROL,LH
46091-1690
$140.74
46092
LEVER-GRIP,CLUTCH
46092-1190
$26.18
56001
MIRROR-ASSY
56001-1339
$30.23
92001
BOLT,CLUTCH LEVER
92001-1075
$8.19
92009
SCREW,CABLE ADJUST,8MM
92009-1435
$16.33
92009A
SCREW,5X16
92009-1699
$3.98
92009B
SCREW,4X45
92009-1803
$4.13
92009C
SCREW,4X32
92009-1804
$4.13
92015
NUT,CABLE ADJUST LOCK,8MM
92015-1596
$8.86
92019
NUT,LOCK,6MM
92019-008
$4.26
92066
PLUG,9.5X8,POLYETHYLENE
92066-1077
$4.65
92066A
PLUG
92066-1277
$6.51
92150
BOLT
92150-1474
$5.00
92170
CLAMP,LEVER HOLDER
92170-1226
$27.29
92172
SCREW,3X16
92172-0183
$2.15
