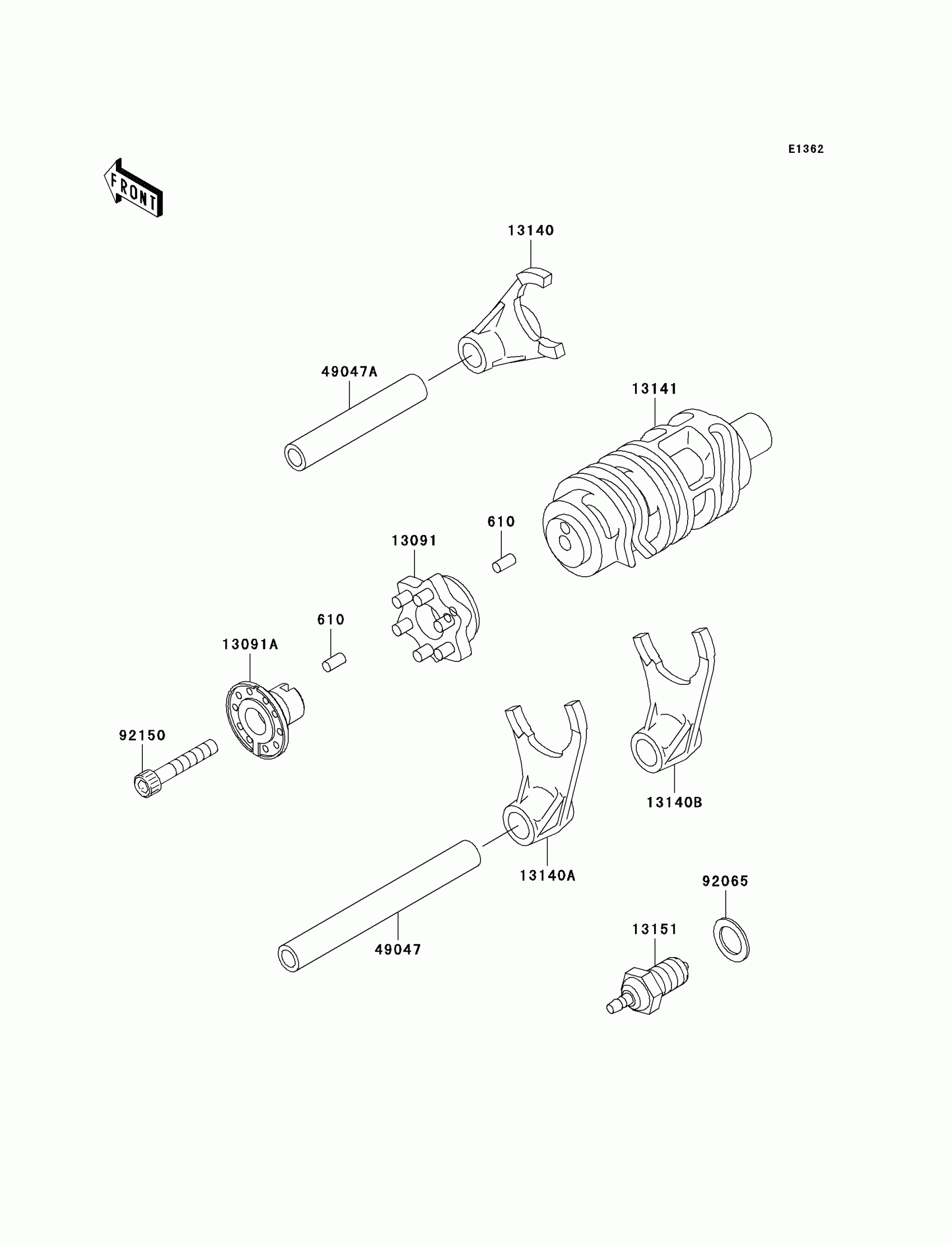

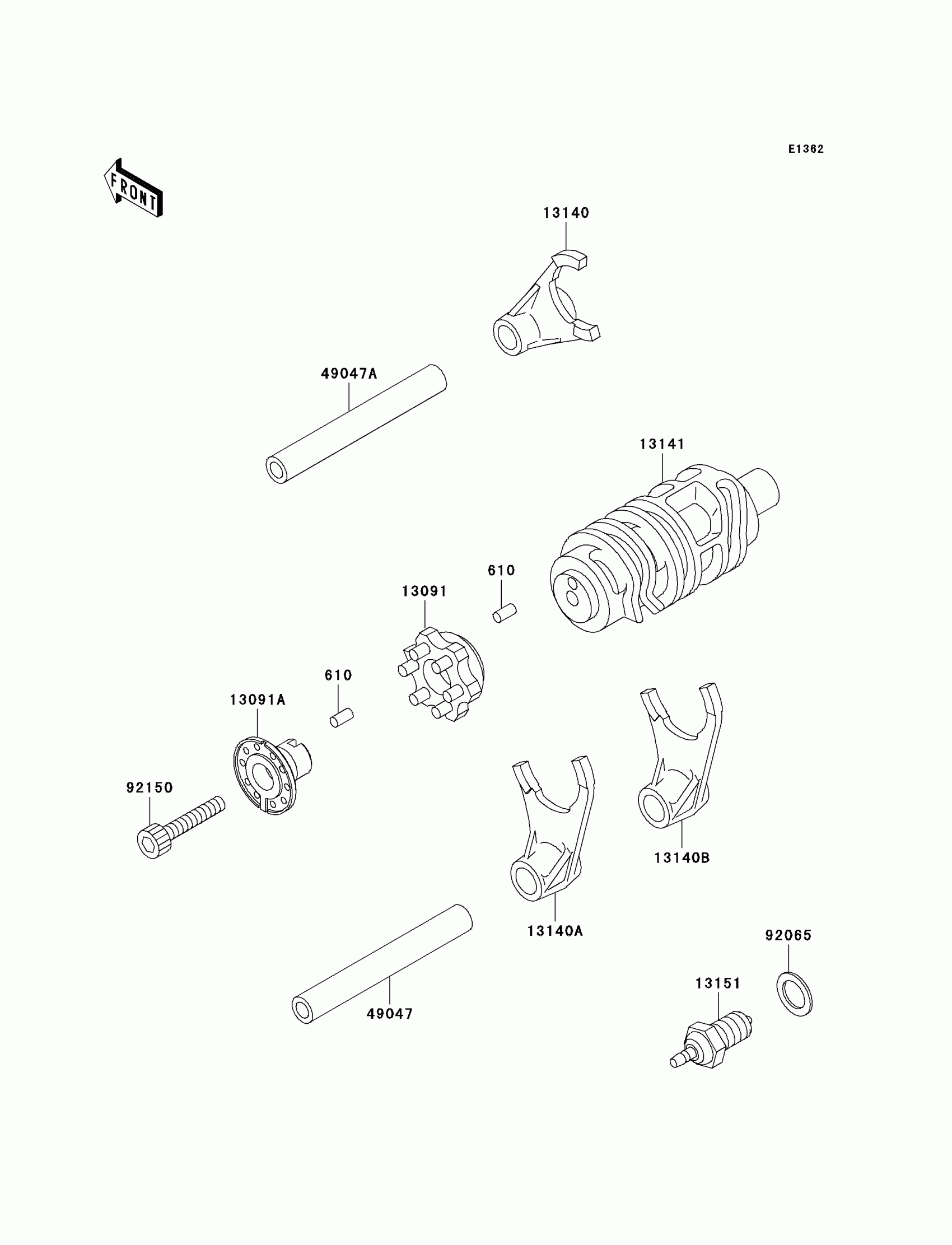

Kawasaki Super Sherpa (Canada Only) Gear Change Drum/Shift Fork(s) Diagram

Description

Price

610

ROLLER,4X8

610A0408

$4.31

13091

HOLDER,CHANGE DRUM

13091-1856

$41.24

13091A

HOLDER,CHANGE DRUM

13091-1862

$30.87

13140

FORK-SHIFT,5TH&TOP

13140-1216

$84.71

13140A

FORK-SHIFT,2ND&3RD

13140-1217

$84.71

13140B

FORK-SHIFT,LOW&4TH

13140-1218

$84.71

13141

DRUM-CHANGE

13141-1198

$103.68

13151

SWITCH-COMP,NEUTRAL

13151-1080

$10.38

49047

ROD-SHIFT,L=106.7

49047-1056

$23.25

49047A

ROD-SHIFT,L=71.7

49047-1057

$17.44

92065

GASKET,10.5X16X1

92065-058

$3.96

92150

BOLT,SOCKET,6X35

92150-1484

$6.22
