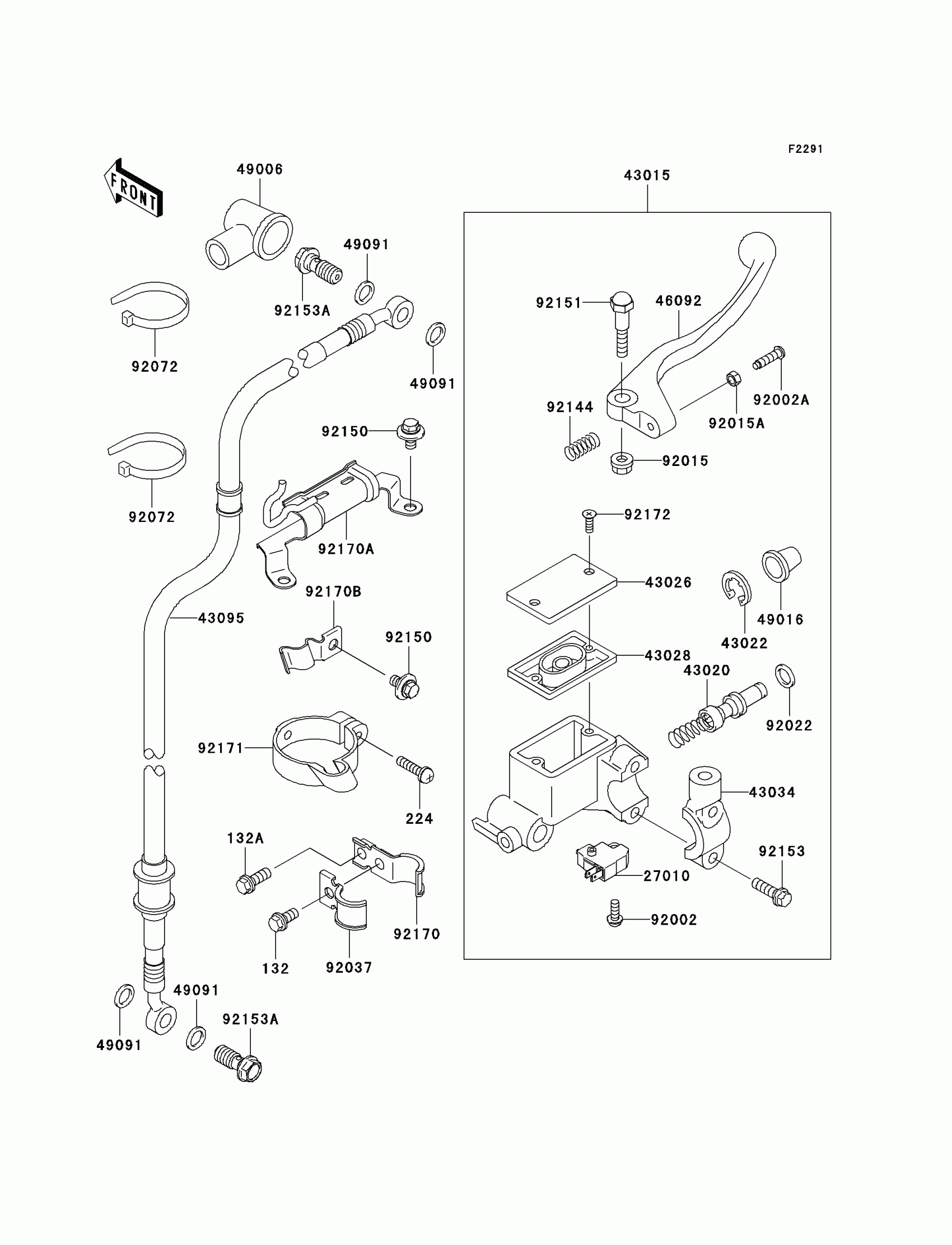

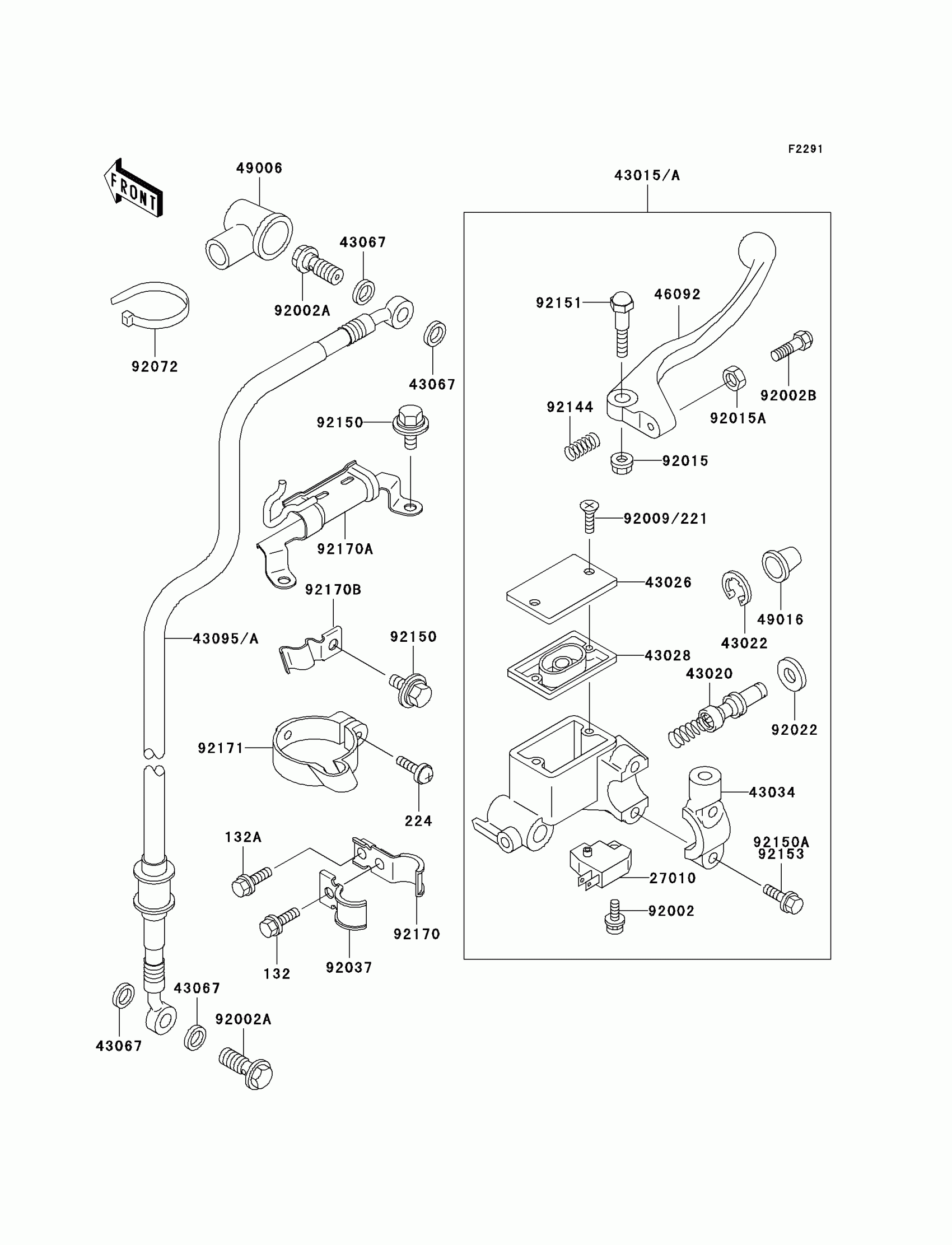

Kawasaki Super Sherpa (Canada Only) Front Master Cylinder Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X16

132J0616

Unavailable

221

SCREW-CSK-CROSS

221R0412

Unavailable

224

SCREW-PAN-WP-CROS,5X20

224B0520

Unavailable

27010

SWITCH,BRAKE

27010-1170

$32.62

43015

CYLINDER-ASSY-MASTER,FR

43015-0021

$318.42

43020

PISTON-COMP-BRAKE

43020-1065

$52.23

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1081

$24.27

43028

DIAPHRAGM

43028-1061

$12.27

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1144

$18.59

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43095A

HOSE-BRAKE,FR

43095-1328

$126.22

46092

LEVER-GRIP,FRONT BRAKE

46092-1199

$18.71

49006

BOOT,DUST

49006-1040

$8.74

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92002

BOLT,SCREW,4X12

92002-1323

$2.99

92002A

BOLT,OIL,L=23

92002-1888

$4.15

92002B

BOLT,ADJUST

92002-1893

$7.36

92015

NUT,FLANGED,6MM

92015-1528

$4.18

92015A

NUT,ADJUST

92015-1642

$2.99

92022

WASHER

92022-1814

$4.17

92037

CLAMP,HOSE

92037-1898

$8.71

92072

BAND,L=202

92072-1195

$1.16

92144

SPRING,RETURN

92144-1103

$7.18

92150

BOLT,6X12

92150-1435

$3.29

92151

BOLT,LEVER SET

92151-1215

$7.53

92153

BOLT

92153-0547

$3.34

92170

CLAMP,BRAKE HOSE

92170-1749

$10.15

92170A

CLAMP,BRAKE HOSE

92170-1778

$18.75

92170B

CLAMP,BRAKE HOSE

92170-1781

$4.49

92171

CLAMP,BRAKE HOSE

92171-1079

$14.27
