2004 Kawasaki Super Sherpa (Canada Only) Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2004 Kawasaki Super Sherpa (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

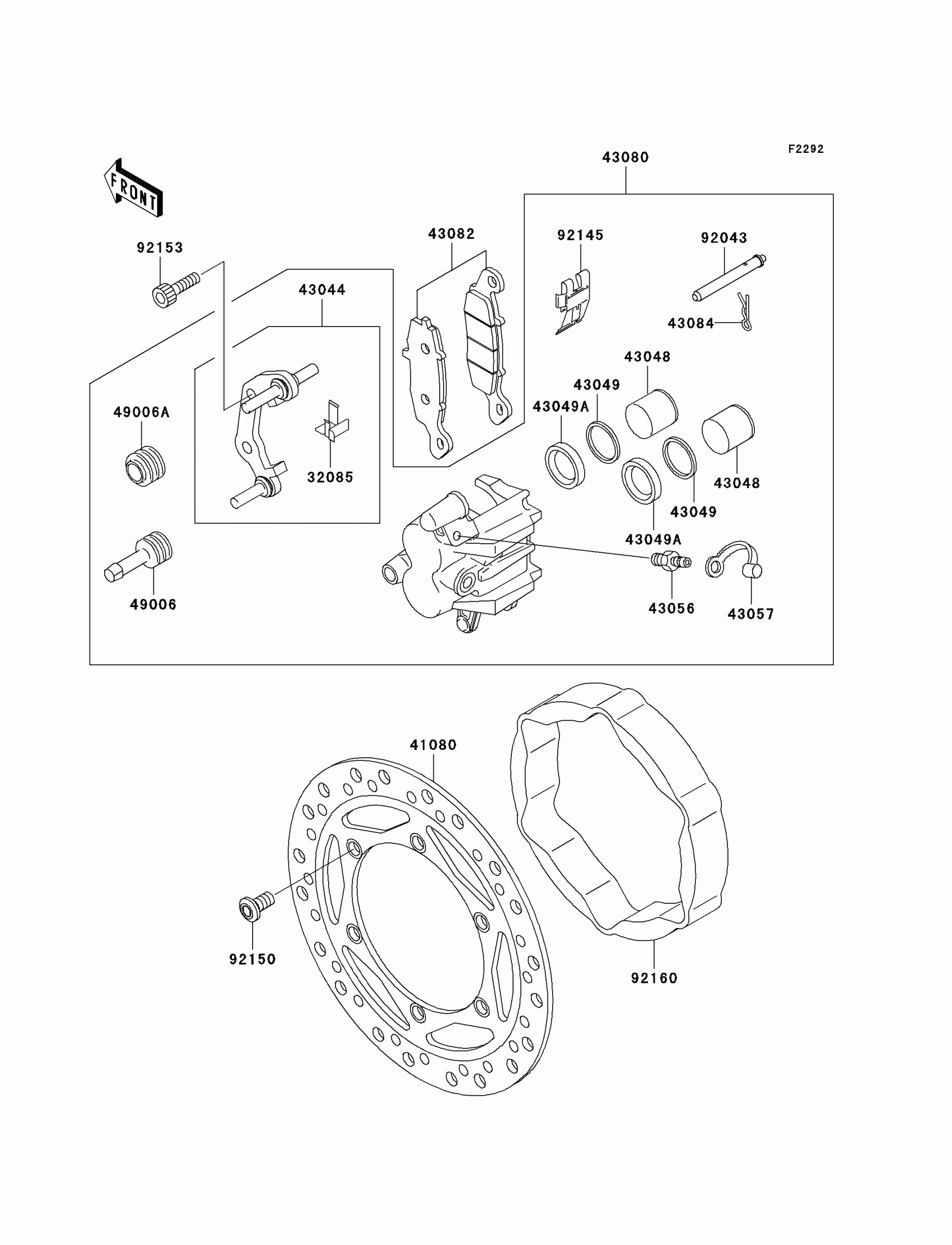

2004 Kawasaki Super Sherpa (Canada Only) Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32085

STOPPER

32085-1437

1

$12.42

In stock

41080

DISC,FR

41080-1435

1

$377.83

In stock

43044

1

$120.75

In stock

43048

PISTON-CALIPER

43048-1083

1

$51.26

In stock

43049

PACKING,PISTON

43049-1059

1

$6.75

In stock

43049A

PACKING,PISTON SEAL

43049-1090

1

$4.84

In stock

43056

BREATHER-BRAKE

43056-1054

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43080

1

$175.72

In stock

43082

PAD-ASSY-BRAKE

43082-1206

1

$55.33

In stock

43084

CLAMP,PAD

43084-003

1

$3.43

In stock

49006

BOOT,CALIPER

49006-1054

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1055

1

$5.78

In stock

92043

PIN,PAD

92043-1356

1

$10.25

In stock

92145

SPRING,PAD

92145-1260

1

$14.58

In stock

92150

BOLT,8X15

92150-1852

1

$3.72

In stock

92153

BOLT,SOCKET,8X30

92153-0513

1
Out of stock

92160

DAMPER,DISC PLATE

92160-1876

1

$42.59

In stock
