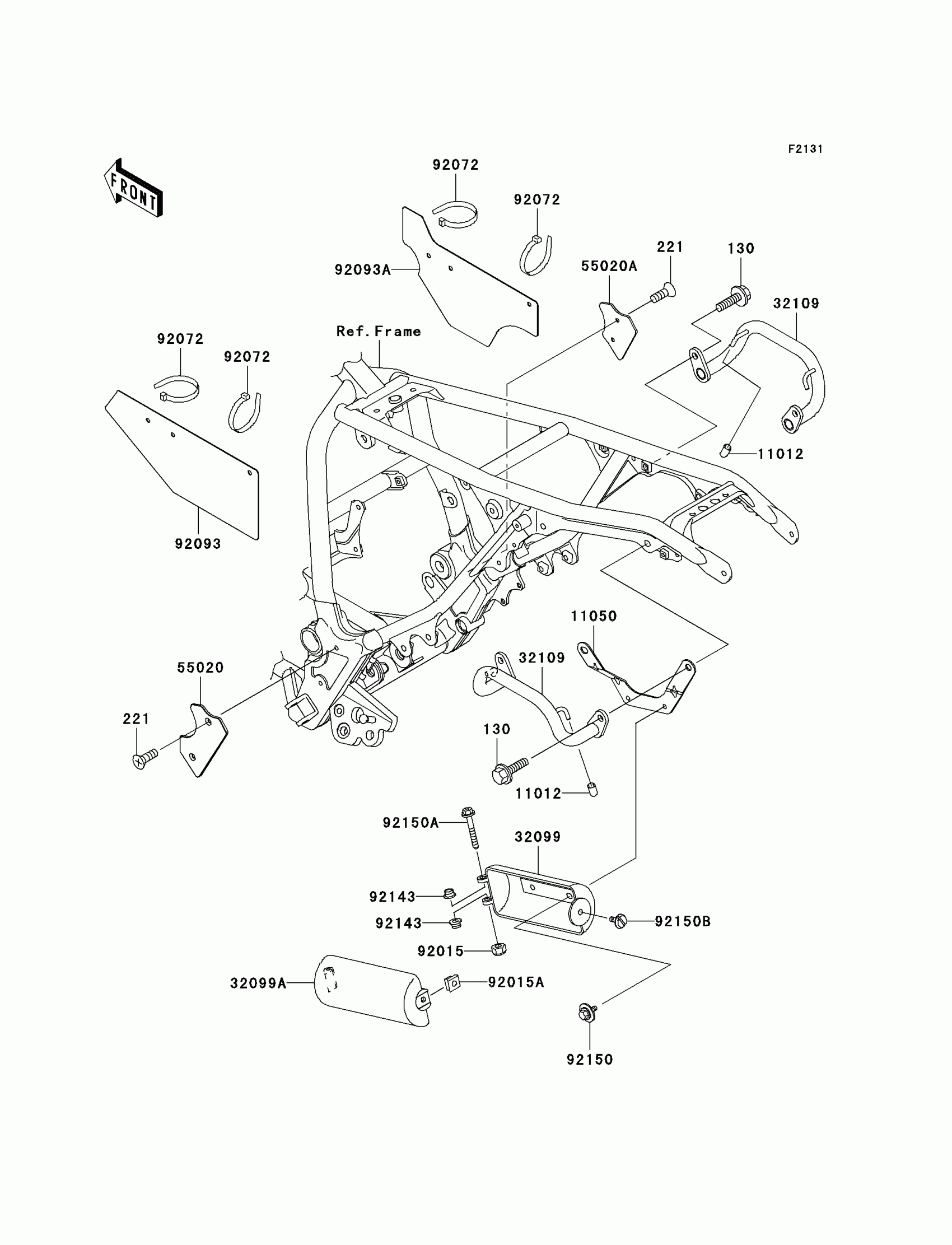

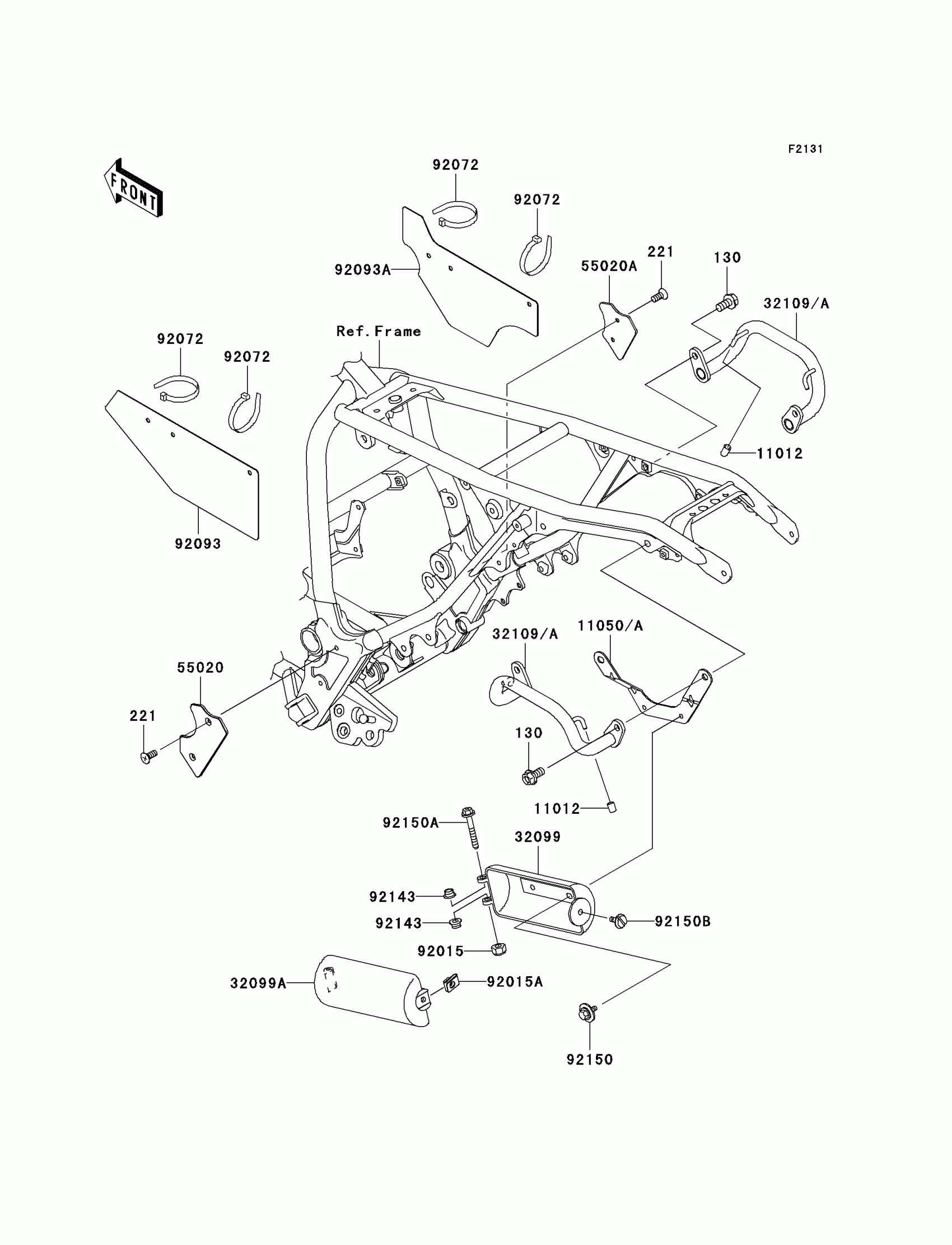

Kawasaki Super Sherpa (Canada Only) Frame Fittings Diagram

Description

Price

130

BOLT-FLANGED,8X16

130G0816

$1.10

221

SCREW-CSK-CROSS,5X12

221B0512

$0.69

11012

CAP,BUNGEE CORD HOOK

11012-1589

$7.77

11050

BRACKET,TOOL CASE,C.GRAY

11050-1445-EZ

$27.78

32099

CASE,TOOL,BODY

32099-1184

$34.82

32099A

CASE,TOOL,CAP

32099-1185

$34.82

32109

GRIP-FRAME,C.GRAY

32109-1260-EZ

$44.94

55020

GUARD,FOOT,LH

55020-1606

$30.41

55020A

GUARD,FOOT,RH

55020-1607

$29.89

92015

NUT,LOCK,5MM

92015-1221

$6.22

92015A

NUT,6MM

92015-1602

$7.34

92072

BAND,L=202

92072-1195

$1.56

92093

SEAL,AIR CLEANER,LH

92093-1450

$17.98

92093A

SEAL,AIR CLEANER,RH

92093-1451

$17.98

92143

COLLAR

92143-1234

$4.31

92150

BOLT,FLANGED,6X14,WASHER

92150-1392

$4.80

92150A

BOLT,ADJUST,5X45

92150-1590

$6.50

92150B

BOLT,6X14

92150-3732

$12.35
